TB 370 (12ABP3A3766) - Troy-Bilt Walk-Behind Mower (2018) Handle Parts Diagram

Walk-Behind Mower

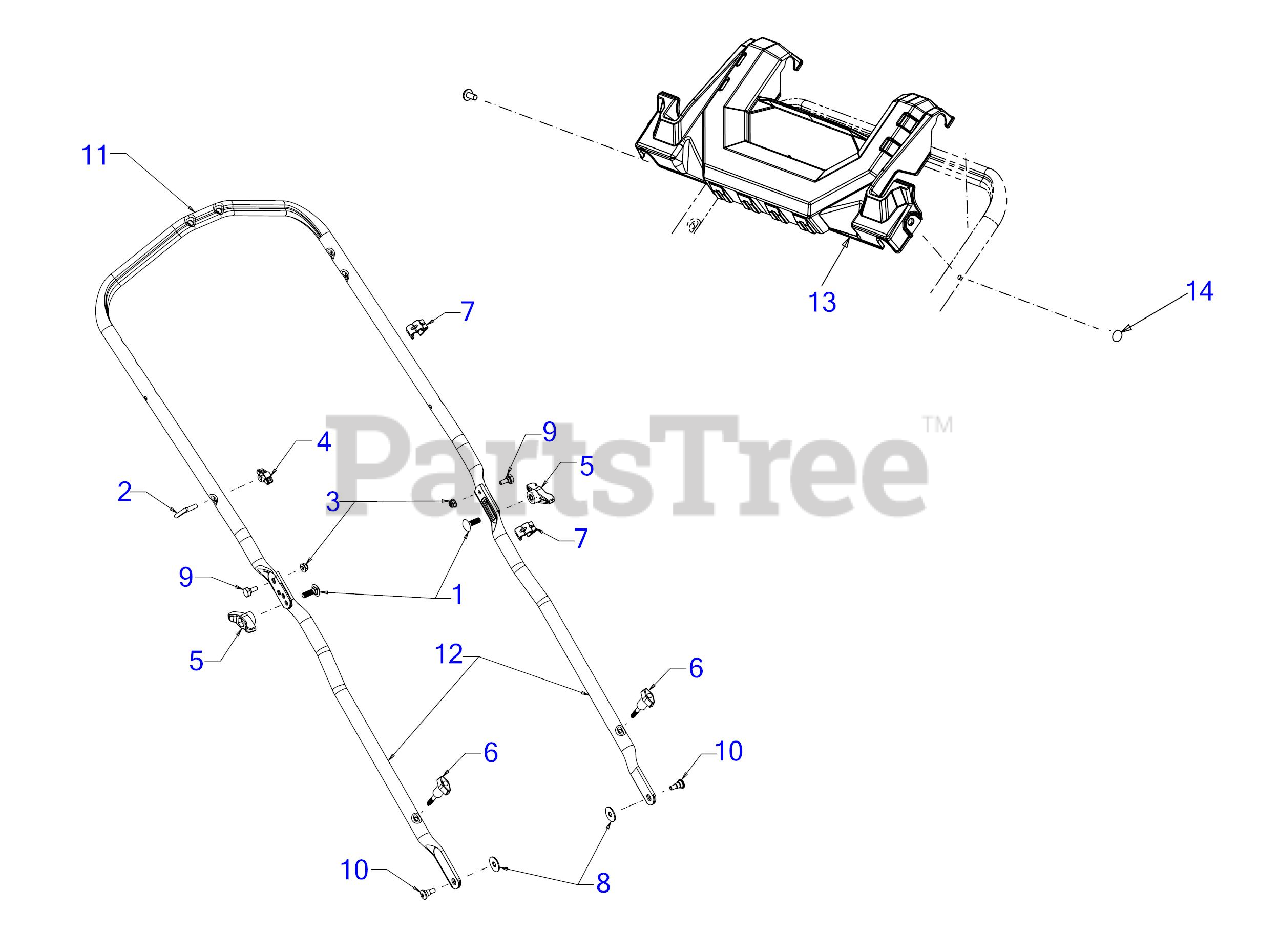

Handle Parts Diagram

  • Title
1

Troy-Bilt 710-04998

SCREW 5/16-18 x 1.00 GR5

$5.99

$

In Stock, only 2 left!

0

2

Troy-Bilt 710-1205

EYEBOLT 1/4-20

$3.99

$

In Stock, Qty 20+

0

3

Troy-Bilt 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

4

Troy-Bilt 720-0279

HANDLE KNOB

$4.49

$

In Stock, Qty 20+

0

5

Troy-Bilt 720-04124

WING KNOB 5/16-18

$4.99

$

In Stock, Qty 7

0

6

Troy-Bilt 720-05066A

WING KNOB 1/4-20

$4.49

$

In Stock, Qty 20+

0

7

Troy-Bilt 731-08454

CONDUIT CLIP

$4.49

$

In Stock, only 4 left!

0

8

Troy-Bilt 736-3078

FLAT WASHER 344X1.00

$4.49

$

In Stock, Qty 20+

0

9

Troy-Bilt 738-04419A

SHOULDER SCREW

$4.49

$

In Stock, Qty 8

0

10

Troy-Bilt 738-05010A

SHOULDER SCREW .450X .188X 1/4-20

$9.49

$

In Stock, Qty 7

0

11

Troy-Bilt 749-05831A

UPPER HANDLE

$44.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt 749-05016B

LOWER HANDLE
(Superseded to 749-07297)

$22.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt 931-09823A

HANDLE CONSOLE

$33.99

$

Usually ships in 3-6 days

0

14

Troy-Bilt 710-1017

SCREW 1/4-14 x .625

$8.49

$

In Stock, Qty 9

0
