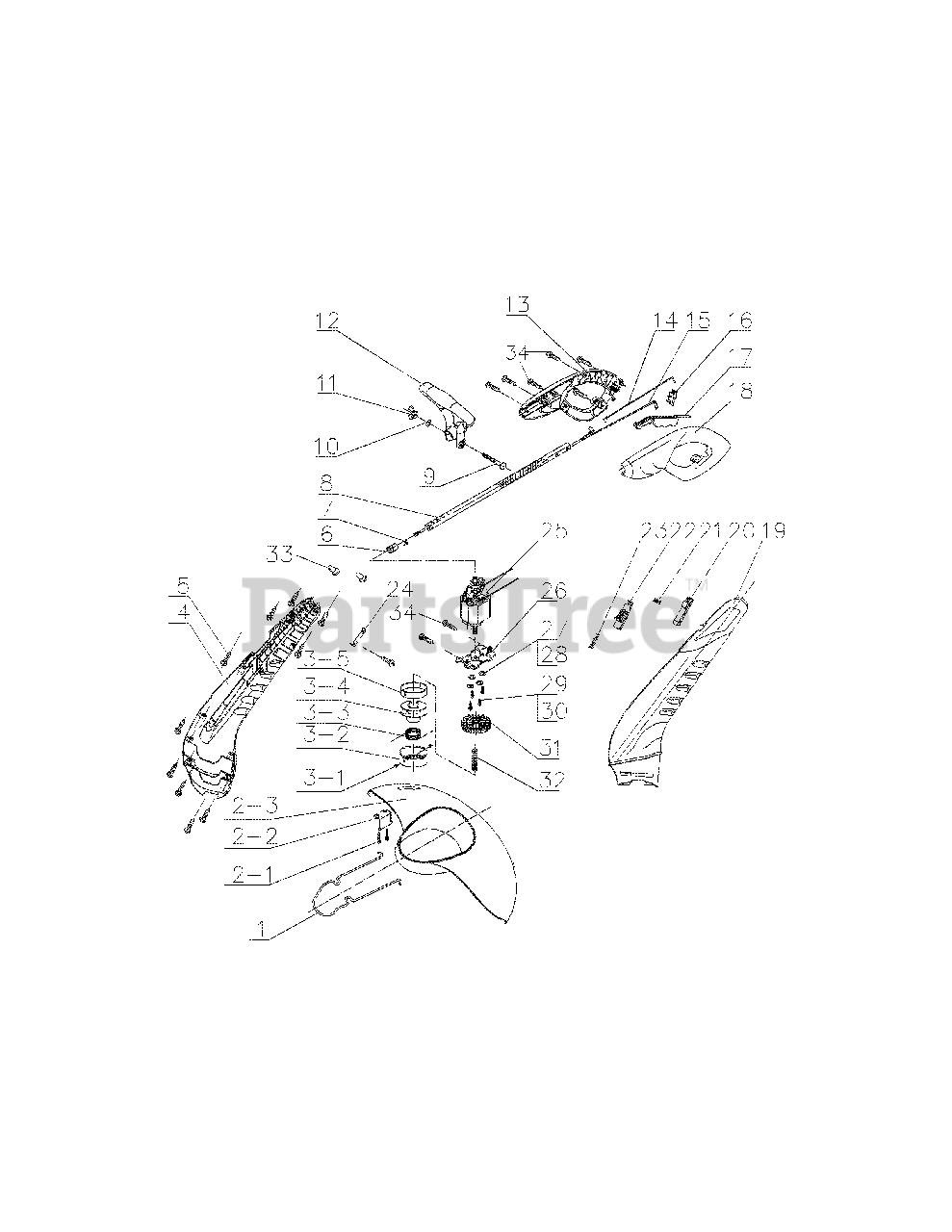

TB 37 E (41ACT37P966) - Troy-Bilt String Trimmer, Electric General Assembly Parts Diagram

String Trimmer, Electric

General Assembly Parts Diagram

  • Title
1

MTD MC-6036-230101

PROJECTIVE GUARD

$

$

Not available

2

$

$

Not available

3

MTD MC-6228-202004A

SPOOL CARRIER ASS'Y

$

$

Not available

4

MTD MC-6038-202604

HOUSING - MTD RED

$

$

Not available

$

$

Not available

$

$

Not available

7

MTD MC-6056-202603

SNAP BUTTON

$

$

Not available

8

MTD MC-6114-202602

ADJUSTABLE ROD

$

$

Not available

$

$

Not available

10

$

$

Not available

$

$

Not available

12

MTD MC-6196-202601

CENTRAL HANDGRIP

$

$

Not available

13

MTD MC-6068-202604

UPPER HANDGRIP MTD RED

$

$

Not available

$

$

Not available

$

$

Not available

16

$

$

Not available

17

MTD MC-6028-230003

TRIGGER - Black

$

$

Not available

18

MTD MC-6068-202603

UPPER HANDGRIP L - MTD RED

$

$

Not available

19

MTD MC-6038-202603

HOUSING (L)-MTD RED

$

$

Not available

$

$

Currently unavailable

21

$

$

Not available

22

MTD MC-6056-202607

BUTTON-Black

$

$

Not available

23

$

$

Not available

24

$

$

Not available

25

MTD MC-6099-202702

MOTOR 120V

$

$

Not available

26

MTD MC-6072-202601

MOTOR PLATE

$

$

Not available

27

$

$

Not available

28

$

$

Not available

$

$

Not available

30

$

$

Not available

31

MTD MC-6270-202003

CUTTER ASS'Y

$

$

Not available

32

$

$

Not available

33

MTD MC-6154-840001

TERMINAL BLOCK

$

$

Not available

$

$

Not available
