TB 340 (12AKC32N766) - Troy-Bilt Walk-Behind Mower (2016) Transmission Parts Diagram

Walk-Behind Mower

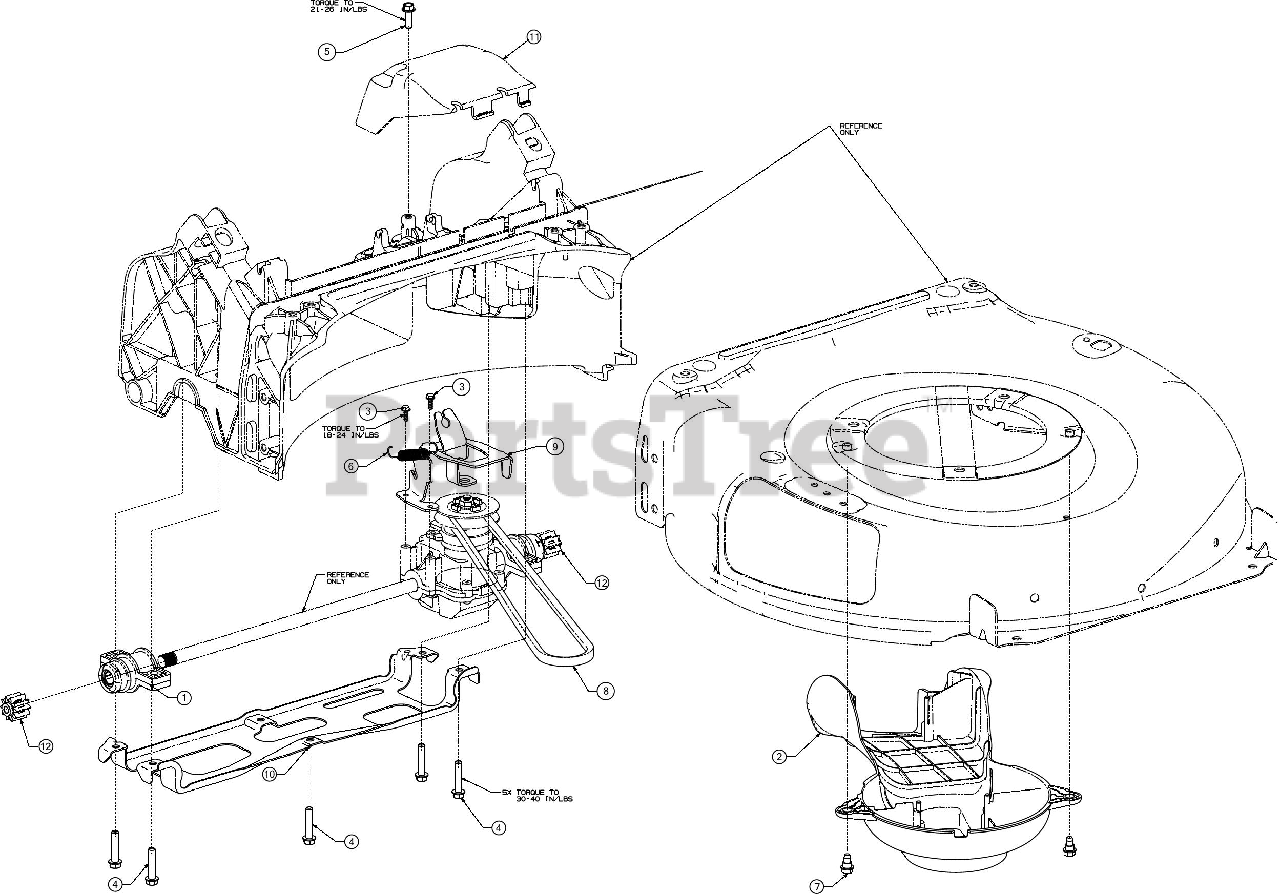

Transmission Parts Diagram

  • Title

Troy-Bilt 918-06000

TRANSMISSION ASSEMBLY

Note: Not Shown

$148.99

$

In Stock, only 1 left!

0

1

Troy-Bilt 631-04501A

BEARING ASSEMBLY

$6.99

$

In Stock, only 1 left!

0

2

Troy-Bilt 631-04512C

ENGINE BAFFLE ASSEMBLY
(Superseded to 631-04512D)

$21.99

$

In Stock, only 1 left!

0

3

Troy-Bilt 710-04374

SCREW .159 x .43

$3.99

$

In Stock, Qty 11

0

4

Troy-Bilt 710-04774

SCREW 1/4-15 x 1.250

$4.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 710-0895

SCREW 1/4-15 x .750

$6.49

$

In Stock, Qty 10

0

6

Troy-Bilt 732-04826A

EXTENSION SPRING

$3.99

$

In Stock, only 3 left!

0

7

Troy-Bilt 738-04502

SHOULDER SCREW 1/4-20 x .50

$4.49

$

In Stock, Qty 20+

0

8

Troy-Bilt 954-04282

V-BELT 31.25

$28.99

$

In Stock, only 2 left!

0

9

Troy-Bilt 787-01868A-0637

TRANSMISSION BRACKET
(Superseded to 787-01868B-0637)

$8.99

$

In Stock, only 1 left!

0

10

Troy-Bilt 787-01915B

BRACKET SUPPORT
(Superseded to 787-01915C)

$19.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 731-07799

TRANSMISSION COVER

$11.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt 917-04852

SPUR GEAR 10T

$4.99

$

In Stock, only 2 left!

0
