TB 330 (12AKC3A3766) - Troy-Bilt Walk-Behind Mower (2016) Axle Assembly Parts Diagram

Walk-Behind Mower

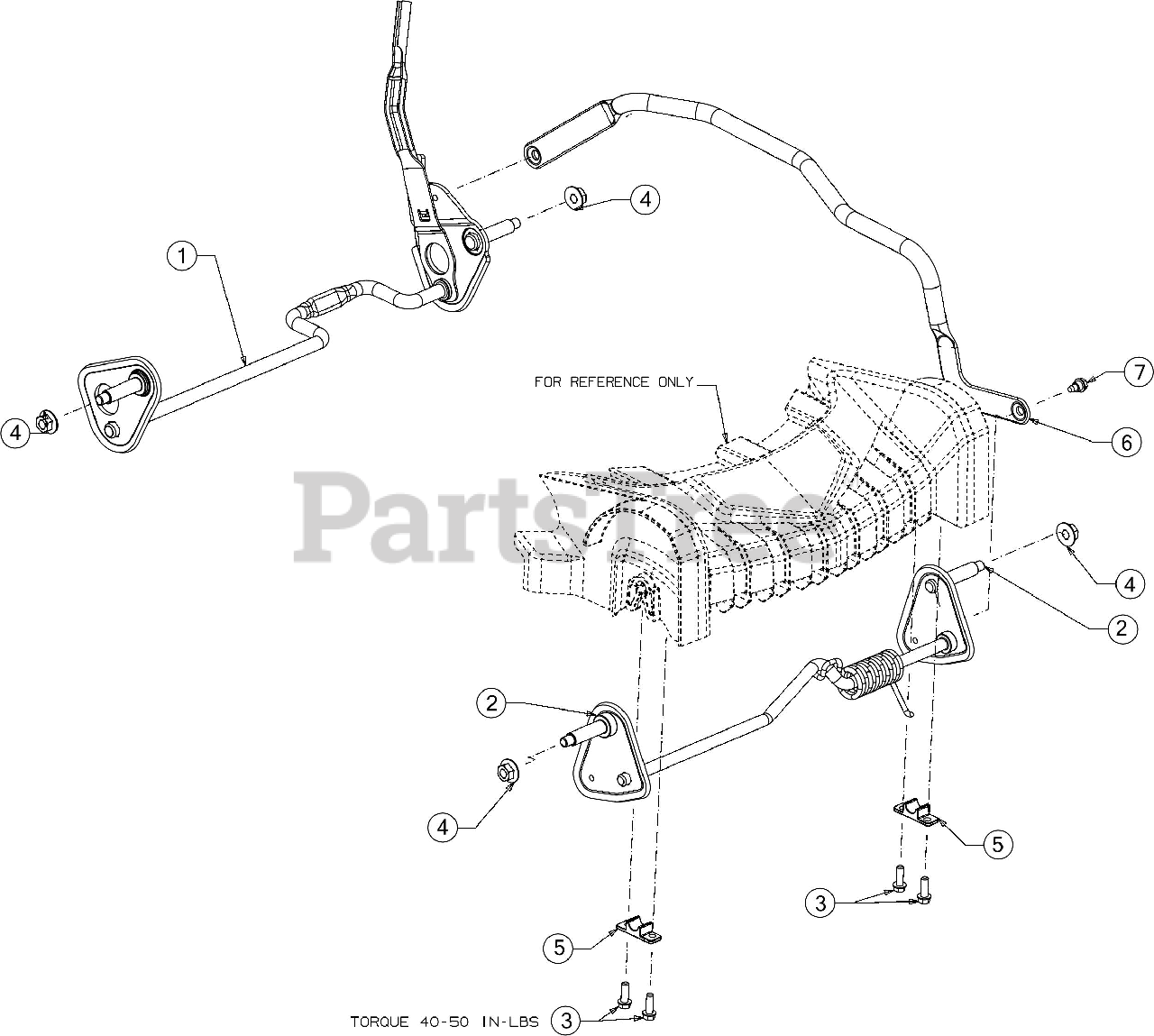

Axle Assembly Parts Diagram

  • Title
1

Troy-Bilt 911-04189

HEIGHT AXLE ASSEMBLY
(Superseded to 611-04189A)

$55.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 911-04190B

FRONT AXLE ASSEMBLY

$48.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 710-0895

SCREW 1/4-15 x .750

$6.49

$

In Stock, Qty 5

0

4

Troy-Bilt 712-04217

FLANGE LOCK NUT

$4.49

$

In Stock, Qty 20+

0

5

Troy-Bilt 741-0492A

BLOCK BUSHING

$6.49

$

In Stock, Qty 9

0

$

$

Currently unavailable

7

Troy-Bilt 738-04502

SHOULDER SCREW 1/4-20 x .50

$4.49

$

In Stock, Qty 18

0
