TB 33 LS (24BL59M5711) - Troy-Bilt Log Splitter (2016) Tongue Parts Diagram

Log Splitter

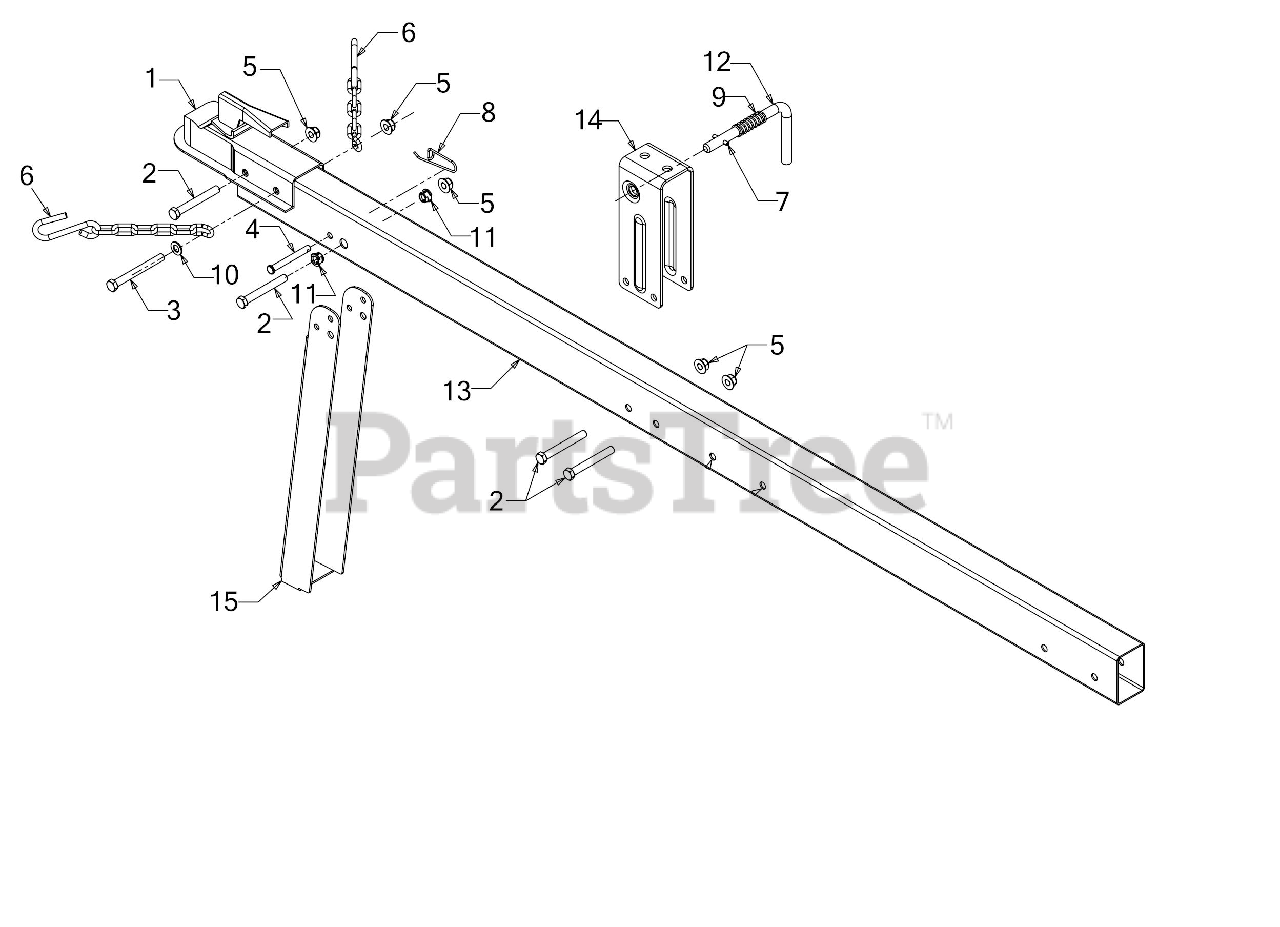

Tongue Parts Diagram

  • Title
1

Troy-Bilt 681-04030

HITCH COUPLING ASSEMBLY

$72.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 710-0521

SCREW 3/8-16 x 3 GR8

$5.49

$

In Stock, Qty 11

0

3

Troy-Bilt 710-3085

SCREW 3/8-16 x 3.50 GR5

$4.49

$

In Stock, Qty 20+

0

4

Troy-Bilt 911-0813

CLEVIS PIN 5/16 x 2.5

$6.99

$

Usually ships in 3-6 days

0

$3.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 713-0433A

LOGSPLITTER TOW CHAIN

$44.99

$

In Stock, only 1 left!

0

7

Troy-Bilt 715-0120

SPRING PIN 3/16 x 1.00

$10.99

$

In Stock, only 1 left!

0

8

Troy-Bilt 732-0194

SPRING PIN

$4.99

$

In Stock, Qty 12

0

9

Troy-Bilt 932-3127

COMPRESSION SPRING

$4.49

$

In Stock, Qty 20+

0

10

Troy-Bilt 936-0185

FLAT WASHER
(Superseded to 736-0185)

$3.99

$

In Stock, Qty 20+

0

11

Troy-Bilt 941-0475

BUSHING .380 ID

$4.49

$

In Stock, Qty 20+

0

12

Troy-Bilt 747-1261

LATCH ROD

$39.99

$

Usually ships in 3-6 days

0

13

$110.99

$

Usually ships in 3-6 days

0

14

$24.99

$

Usually ships in 3-6 days

0

15

$39.99

$

Usually ships in 3-6 days

0
