TB 320 BV (41DS320G966) - Troy-Bilt Blower Vacuum General Assembly Parts Diagram

Blower Vacuum

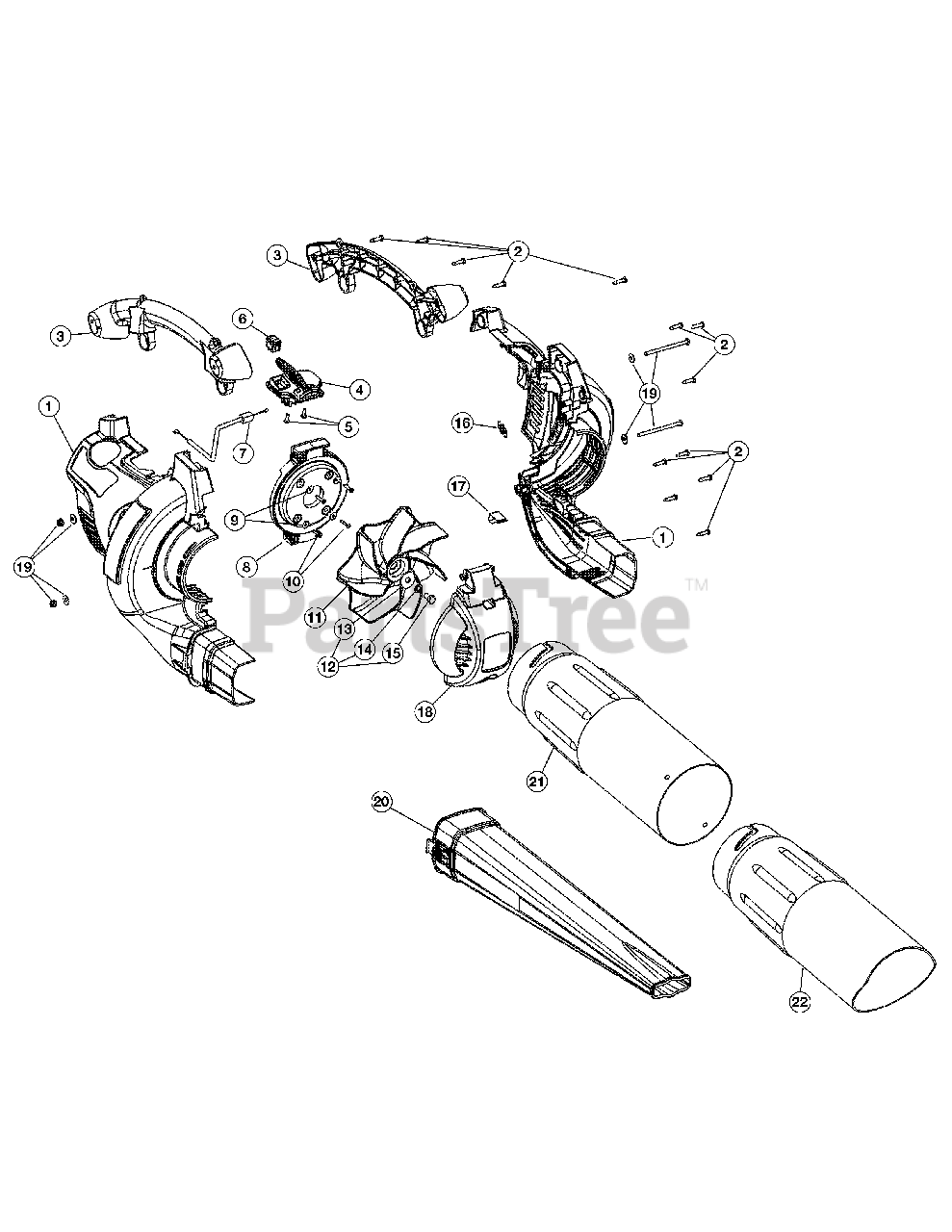

General Assembly Parts Diagram

  • Title

1

MTD 753-04452

Engine Cover Assembly

Note: (Incl. 2)

$

$

Not available

2

Troy-Bilt 791-181345

Screw

$4.49

$

In Stock, Qty 20+

0

3

Troy-Bilt 753-05047

Handle Assembly

Note: (Incl. 2)

$26.99

$

In Stock, only 3 left!

0

4

Troy-Bilt 753-05013A

Throttle Control Assembly

Note: (Incl. 5)

$

$

Not available

5

Troy-Bilt 791-182423

Screw

$

$

Not available

6

Troy-Bilt 791-182405

Rocker Switch Assembly

$10.99

$

In Stock, Qty 12

0

7

Troy-Bilt 791-00049

Throttle Cable

$

$

Not available

8

MTD 753-04809

Engine Mount Plate

Note: (Incl. 9 & 10)

$

$

Not available

9

Troy-Bilt 791-182409

Washer

$4.99

$

In Stock, Qty 5

0

10

Troy-Bilt 710-04215A

Screw

$4.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 731-04275

Impeller Blade

$35.99

$

In Stock, only 4 left!

0

12

Troy-Bilt 753-04482

Impeller Hardware

Note: (Incl. 13-15)

$9.49

$

Usually ships in 3-6 days

0

13

Troy-Bilt 736-04107

Washer

$4.49

$

In Stock, only 1 left!

0

14

Troy-Bilt 736-04110A

Lock Washer

$5.49

$

In Stock, only 1 left!

0

15

Troy-Bilt 791-182414

Bolt

$4.99

$

Usually ships in 3-6 days

0

16

MTD 753-04456

Vacuum Door Spring

$

$

Not available

17

Troy-Bilt 732-04092A

Vacuum Door Lock

$9.99

$

Usually ships in 3-6 days

0

18

Troy-Bilt 753-04454

Vacuum Door

$

$

Not available

19

MTD 791-182424

Mounting Plate Hardware

$

$

Not available

20

Troy-Bilt 791-182647

Blower Tube

$

$

Not available

21

Troy-Bilt 791-180466

Upper Vacuum Tube

$

$

Not available

22

Troy-Bilt 791-180467

Lower Vacuum Tube

$38.99

$

In Stock, only 4 left!

0

Troy-Bilt 791-612930

Cable Tie

Note: Not shown

$10.99

$

Usually ships in 3-6 days

0

Troy-Bilt 753-04458

Vacuum Bag Assm

Note: Not shown (Incl. Bag & Cable Tie)

$50.99

$

Usually ships in 3-6 days

0

Troy-Bilt 791-682075B

Shoulder Strap

Note: Not shown

$38.99

$

Usually ships in 3-6 days

0
