TB 320 BV (41CS320G966) - Troy-Bilt Blower Vacuum Engine Assembly Parts Diagram

Blower Vacuum

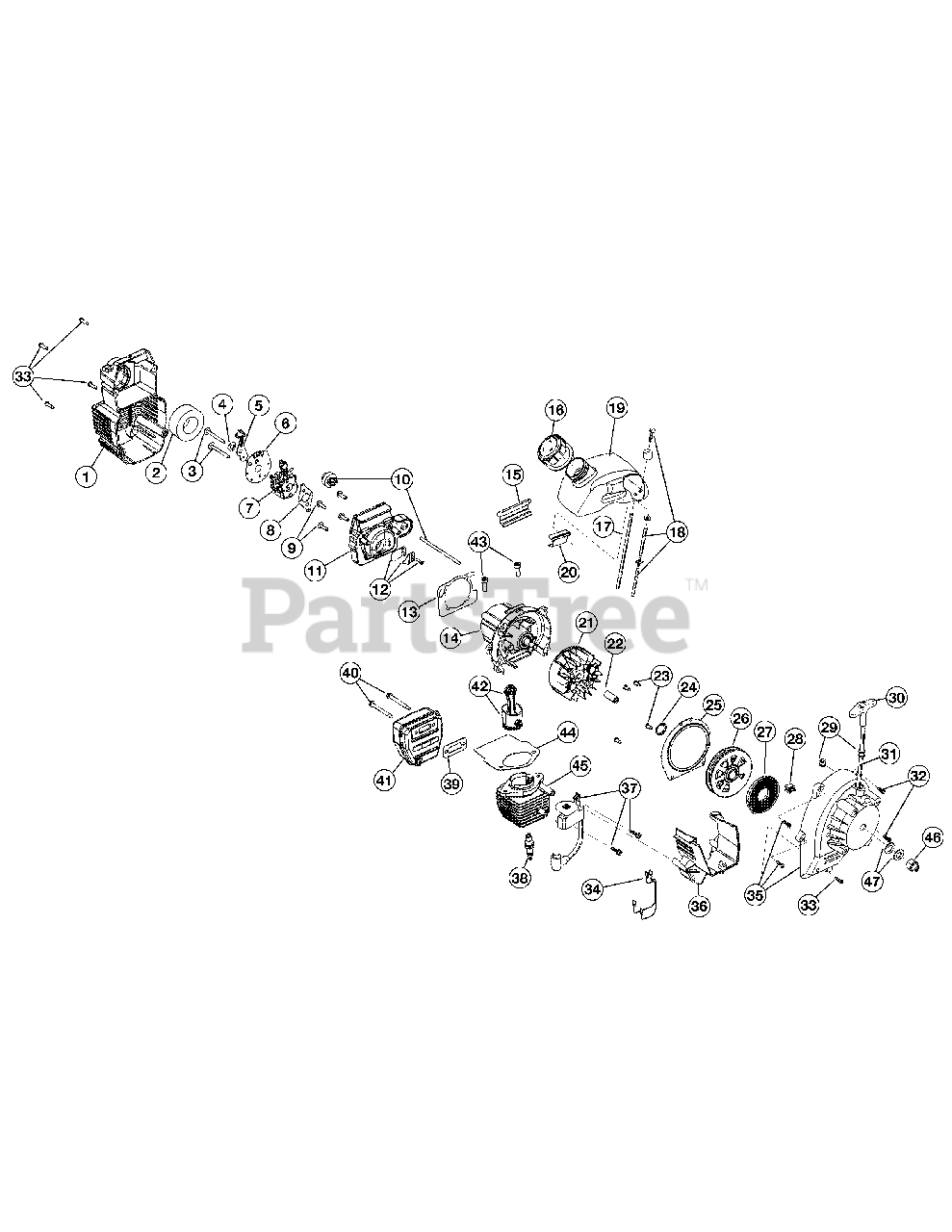

Engine Assembly Parts Diagram

  • Title

1

Troy-Bilt 753-04511

Air Cleaner Cover Assembly

Note: (Incl. Ref No. 2 & 33)

$38.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 791-180350B

Air Cleaner Filter

$9.99

$

In Stock, only 1 left!

0

3

MTD 791-180351

Carburetor Mounting Screws

$

$

Not available

4

Troy-Bilt 791-180226

Wavey Washer
(Superseded to 936-0271)

$4.49

$

In Stock, Qty 10

0

5

Troy-Bilt 753-04418

Choke Lever Assembly

$

$

Not available

6

Troy-Bilt 753-04419

Choke Lever & Plate

Note: (Incl. Ref No. 6)

$

$

Not available

7

Troy-Bilt 753-04408

Carburetor Assembly

Note: (Incl. Ref No. 8 & 18)

$71.99

$

In Stock, only 2 left!

0

8

Troy-Bilt 791-610675

Carburetor Gasket

$4.49

$

In Stock, Qty 19

0

9

MTD 791-181860

Carb Mount Screw

$

$

Not available

10

Troy-Bilt 791-683974B

Primer & Hose Assembly

$22.99

$

In Stock, Qty 18

0

11

Troy-Bilt 753-1196

Carburetor Mount Assembly

Note: (Incl. Ref No. 9, 12 & 13)

$

$

Not available

12

Troy-Bilt 791-684451

Reed Assembly

$

$

Not available

13

Troy-Bilt 753-1208

Carburetor Mount Gasket

$16.99

$

In Stock, only 1 left!

0

14

Troy-Bilt 753-04747

Crankcase Service Assembly

Note: (Incl. Ref No. 9)

$

$

Not available

15

MTD 791-612134

Rear Mounting Pad

$

$

Not available

16

Troy-Bilt 791-182529

Fuel Cap Assembly

$21.99

$

In Stock, only 4 left!

0

17

Troy-Bilt 791-181086

Fuel Return Line

$7.49

$

In Stock, Qty 20+

0

18

Troy-Bilt 791-682039

Fuel Line Assembly

$16.99

$

In Stock, Qty 11

0

19

Troy-Bilt 753-04310

Fuel Tank Assembly

Note: (Incl. Ref No. 16-18)

$

$

Not available

20

MTD 791-145308

Front Mounting Pad

$

$

Not available

21

Troy-Bilt 791-182736

Flywheel Assembly
(Superseded to 753-05240)

$76.99

$

In Stock, only 2 left!

0

22

Troy-Bilt 753-04748

Spacer
(Superseded to 750-04260)

$9.49

$

Usually ships in 3-6 days

0

23

Troy-Bilt 753-1202

Plate Screw
(Superseded to 1755)

$3.99

$

Usually ships in 3-6 days

0

24

Troy-Bilt 753-04288

Palnut

$10.99

$

Usually ships in 3-6 days

0

25

Troy-Bilt 753-04705

Pressure Plate

Note: (Incl. Ref No. 23 & 28)

$

$

Not available

26

Troy-Bilt 753-04823

Recoil Pulley Assembly

Note: (Incl. Ref No. 24)

$33.99

$

In Stock, Qty 8

0

27

Troy-Bilt 753-04286

Recoil Spring

$26.99

$

In Stock, Qty 5

0

28

Troy-Bilt 753-04996

Eyelet Retainer
(Superseded to 731-04417)

$6.99

$

Usually ships in 3-6 days

0

29

Troy-Bilt 791-611061

Rope Guide

$10.99

$

In Stock, only 2 left!

0

30

Troy-Bilt 791-181079

Pull Handle
(Superseded to 631-04164B)

$3.99

$

In Stock, only 1 left!

0

31

Troy-Bilt 791-613103

Rope

$10.99

$

In Stock, only 2 left!

0

32

Troy-Bilt 791-181862

Housing Screw
(Superseded to 1964)

$4.49

$

In Stock, Qty 15

0

33

Troy-Bilt 791-181345

Cover Screw

$4.49

$

In Stock, only 4 left!

0

34

Troy-Bilt 791-182402

Wire Lead

$12.99

$

Usually ships in 3-6 days

0

35

Troy-Bilt 753-05404

Starter Housing Assembly (includes 23-33)

$

$

Not available

36

Troy-Bilt 753-04409

Shroud Extension and Stand (includes 33)
(Superseded to 753-05091)

$19.99

$

Usually ships in 3-6 days

0

37

Troy-Bilt 753-04324

Module Assembly

Note: 2007 & before

$110.99

$

In Stock, only 1 left!

0

37

Troy-Bilt 753-05866

Module Assembly

Note: 2008 & after

$92.99

$

Usually ships in 3-6 days

0

38

Troy-Bilt 791-610311B

Spark Plug

$14.99

$

In Stock, only 3 left!

0

39

Troy-Bilt 753-04619

Exhaust Gasket

$9.49

$

In Stock, only 1 left!

0

39

Troy-Bilt 791-180980

Exhaust Gasket

Note: 2007 & before

$7.99

$

Usually ships in 3-6 days

0

40

Troy-Bilt 753-04620

Muffler Mounting Bolt Assembly
(Superseded to 710-04188A)

Note: 2008 & after

$4.49

$

Usually ships in 3-6 days

0

41

Troy-Bilt 753-05169

Muffler Assembly

Note: (Incl. Ref No. 39, 40 & Spark Arrestor), 2007 & before

$112.99

$

Usually ships in 3-6 days

0

41

Troy-Bilt 753-05709

Muffler Assembly
(Superseded to 753-05169)

Note: (Incl. Ref No. 39, 40 & Spark Arrestor), 2008 & after

$112.99

$

Usually ships in 3-6 days

0

42

Troy-Bilt 753-04367

Piston & Rod Assembly

$

$

Not available

43

Troy-Bilt 791-182723

Cylinder Bolt

$4.49

$

In Stock, Qty 13

0

44

Troy-Bilt 753-04182

Cylinder Gasket

$16.99

$

Usually ships in 3-6 days

0

45

Troy-Bilt 753-04814

Cylinder Assembly

Note: (Incl. Ref No. 43 & 44)

$83.99

$

In Stock, only 1 left!

0

46

Troy-Bilt 791-181524

Crankshaft Extension

$

$

Not available

47

Troy-Bilt 791-182396

Washer
(Superseded to 9162-1)

$4.49

$

In Stock, only 3 left!

0

Troy-Bilt 753-1209

Piston Ring Set

$52.99

$

Usually ships in 3-6 days

0

MTD 753-04924

Short Block Assembly

Note: (Incl. Ref No. 8,14,38 & 42-45)

$

$

Not available
