TB 320 (12AVC35U711) - Troy-Bilt Walk-Behind Mower (2013) General Assembly Parts Diagram

Walk-Behind Mower

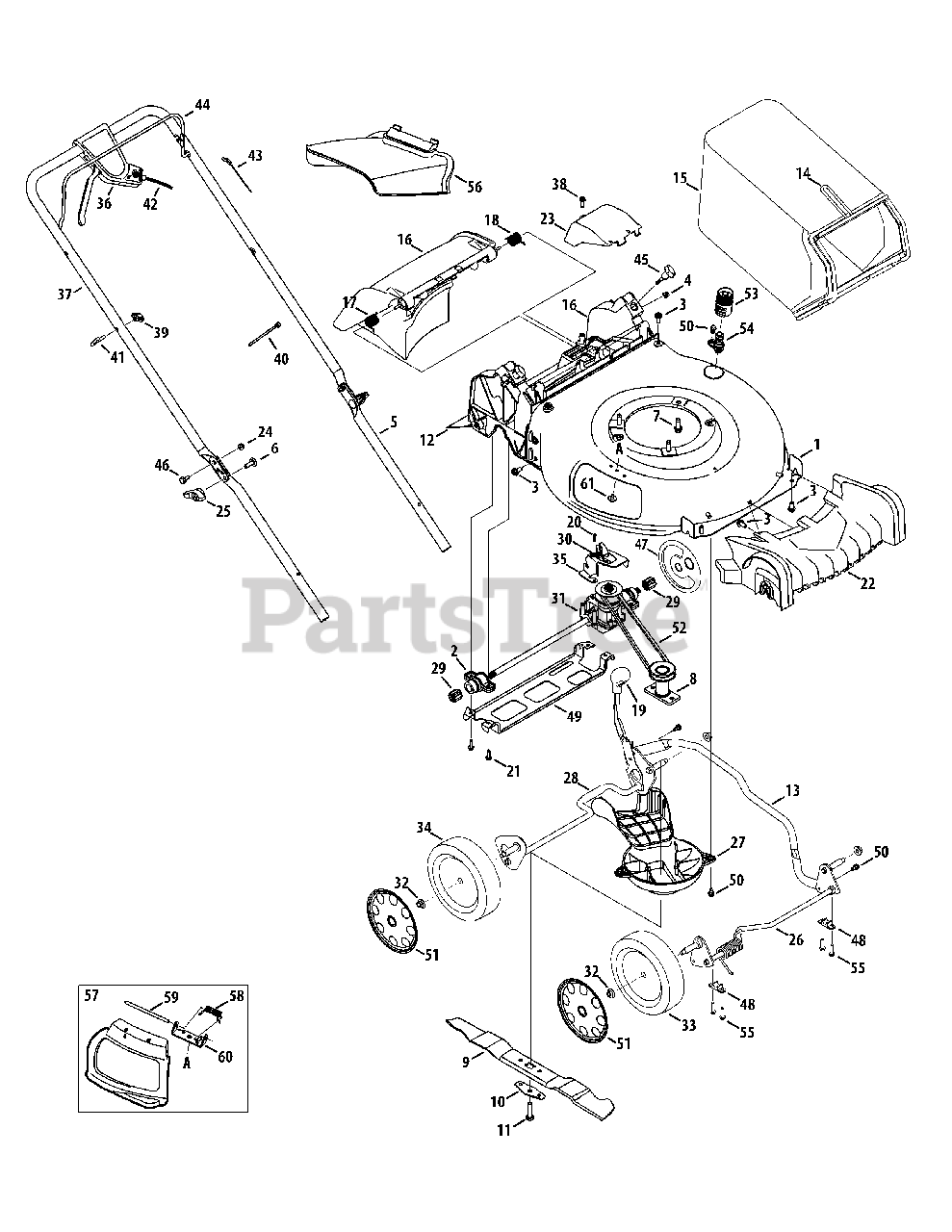

General Assembly Parts Diagram

  • Title

1

Troy-Bilt 787-02002A-0638

Deck, 21"
(Superseded to 787-02002B-0638)

$143.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 631-04501A

Bearing Assembly

$6.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 710-04995A

Screw, 5/16-14 x .750

$4.49

$

In Stock, Qty 20+

0

4

Troy-Bilt 712-04222

Nut, Sq., 1/4-20

$5.49

$

Usually ships in 3-6 days

0

5

Troy-Bilt 749-04608A-0637

Lower Handle
(Superseded to 749-07298-0637)

$9.99

$

In Stock, only 4 left!

0

6

Troy-Bilt 710-04998

Carriage Screw ,5/16-18

$5.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 710-04683A

Screw, 3/8-16 x 1.00
(Superseded to 710-04683C)

$6.49

$

In Stock, only 3 left!

0

8

Troy-Bilt 687-02220

Blade Adapter

$38.99

$

In Stock, only 3 left!

0

9

Troy-Bilt 942-0741A

Mulching Blade

$29.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 736-0524B

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, Qty 17

0

11

Troy-Bilt 710-1044

Screw, 3/8-24 x 1.50

$3.99

$

In Stock, Qty 7

0

12

Troy-Bilt 731-07203

Trailing Shield

$10.99

$

In Stock, only 3 left!

0

13

Troy-Bilt 949-04841-0637

Cross Bracket
(Superseded to 949-04841C-0637)

$38.99

$

Usually ships in 3-6 days

0

14

Troy-Bilt 747-05362A-0637

Grass Catcher Frame
(Superseded to 747-05362A)

$43.99

$

In Stock, Qty 18

0

15

Troy-Bilt 964-04150B

Grass Bag

$54.99

$

In Stock, only 1 left!

0

16

Troy-Bilt 631-04514A

Rear Discharge Door Assembly

Note: (12AVC35U711) (Lowes model)

$83.99

$

Usually ships in 3-6 days

0

16

Troy-Bilt 631-04553A

Rear Discharge Door Assembly

$81.99

$

Usually ships in 3-6 days

0

17

Troy-Bilt 732-04673

Torsion Spring - RH
(Superseded to 732-05061B)

$5.49

$

In Stock, only 1 left!

0

18

Troy-Bilt 732-04674

Torsion Spring - LH
(Superseded to 732-04674A)

$4.49

$

In Stock, only 2 left!

0

19

Troy-Bilt 720-04113

Adjustment Lever Knob

$10.99

$

In Stock, only 2 left!

0

20

Troy-Bilt 710-04374

Screw, Hex Washer, .159 x .43

$3.99

$

In Stock, only 2 left!

0

21

Troy-Bilt 710-04774

Screw, 1/4-15 x 1.25

$4.99

$

Usually ships in 3-6 days

0

22

Troy-Bilt 731-08160

Front Cover

$31.99

$

Usually ships in 3-6 days

0

23

Troy-Bilt 731-08175

Transmission Cover

$11.99

$

Usually ships in 3-6 days

0

24

Troy-Bilt 712-04064

Nut, Flange Lock, 1/4-20

$3.99

$

In Stock, Qty 20+

0

25

Troy-Bilt 720-04124

Wing Knob

$4.99

$

In Stock, only 2 left!

0

26

Troy-Bilt 911-04190A

Front Axle Assembly
(Superseded to 911-04190B)

$48.99

$

Usually ships in 3-6 days

0

27

Troy-Bilt 631-04512C

Engine Baffle
(Superseded to 631-04512D)

$21.99

$

In Stock, only 1 left!

0

28

Troy-Bilt 911-04189

Rear Axle Assembly
(Superseded to 611-04189A)

$55.99

$

Usually ships in 3-6 days

0

29

Troy-Bilt 917-04852

Spur Gear, 10T

$4.99

$

In Stock, only 3 left!

0

30

Troy-Bilt 732-04826A

Exten. Spring, 2.405

$3.99

$

In Stock, only 1 left!

0

31

Troy-Bilt 618-06038

Transmission Assembly
(Superseded to 918-06038)

$157.99

$

In Stock, only 1 left!

0

32

Troy-Bilt 712-04217

Flange Lock Nut, 3/8-16

$4.49

$

In Stock, Qty 20+

0

33

Troy-Bilt 634-04660

Front Wheel

$27.99

$

In Stock, only 2 left!

0

34

Troy-Bilt 634-05042

Rear Wheel
(Superseded to 934-05042)

$40.99

$

In Stock, only 3 left!

0

35

Troy-Bilt 787-01868A-0637

Transmission Bracket
(Superseded to 787-01868B-0637)

$8.99

$

Usually ships in 3-6 days

0

36

Troy-Bilt 753-06060A

Control Lever Assembly

$27.99

$

In Stock, only 1 left!

0

37

Troy-Bilt 749-04679-0637

Upper Handle
(Superseded to 749-04679D-0637)

$46.99

$

Usually ships in 3-6 days

0

38

Troy-Bilt 710-0895

Screw, 1/4-15 x .750

$6.49

$

In Stock, Qty 5

0

39

Troy-Bilt 720-0279

Knob

$4.49

$

Usually ships in 3-6 days

0

40

Troy-Bilt 725-0157

Cable Tie

$3.99

$

In Stock, only 2 left!

0

41

Troy-Bilt 710-1205

Rope Guide

$3.99

$

In Stock, only 2 left!

0

42

Troy-Bilt 946-05048

Variable Speed Cable

$32.99

$

In Stock, only 2 left!

0

43

Troy-Bilt 946-04661

Control Cable
(Superseded to 946-04661A)

$13.99

$

In Stock, Qty 5

0

44

Troy-Bilt 747-05267A

Blade Control
(Superseded to 747-05267C)

$16.99

$

In Stock, only 1 left!

0

45

Troy-Bilt 720-04127B

Wing Nut
(Superseded to 720-05067A)

$5.99

$

In Stock, Qty 14

0

46

Troy-Bilt 738-04419A

Sldr. Screw, .375 x .126 x 1/4-20

$4.49

$

In Stock, Qty 14

0

47

Troy-Bilt 731-07795

Wheel Dust Cover
(Superseded to 731-07795A)

$4.49

$

In Stock, only 1 left!

0

48

Troy-Bilt 741-0492A

Bushing, Lock, .505 Dia. X .62

$6.49

$

In Stock, Qty 9

0

49

Troy-Bilt 787-01915A

Rear Support Bracket
(Superseded to 787-01915C)

$19.99

$

Usually ships in 3-6 days

0

50

Troy-Bilt 738-04278

Screw, Shldr., 1/4-20 x .50

$6.99

$

In Stock, Qty 7

0

51

Troy-Bilt 731-07198

Hubcap, 8"

$7.49

$

In Stock, Qty 9

0

52

Troy-Bilt 954-04282

V-Belt

$28.99

$

In Stock, only 3 left!

0

53

Troy-Bilt 921-04041

Water Nozzle Adapter

$23.99

$

In Stock, Qty 20+

0

54

Troy-Bilt 731-07487

Water Nozzle

$4.49

$

In Stock, Qty 6

0

55

Troy-Bilt 710-1241

Screw, 1/4-15 x 1.000

$6.99

$

In Stock, Qty 19

0

56

Troy-Bilt 731-07131

Side Discharge Chute

$15.99

$

In Stock, only 3 left!

0

57

Troy-Bilt 987-02516

Mulch Plug (Incl. 58-60)
(Superseded to 687-06029)

$25.99

$

In Stock, Qty 20+

0

58

Troy-Bilt 732-1014C

Torsion Spring

$7.99

$

In Stock, Qty 20+

0

59

Troy-Bilt 747-0710A

Hinge Pin

$4.49

$

In Stock, Qty 20+

0

60

Troy-Bilt 787-01779

Chute Deflector Bracket

$4.99

$

In Stock, only 1 left!

0

61

Troy-Bilt 710-05073

Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0
