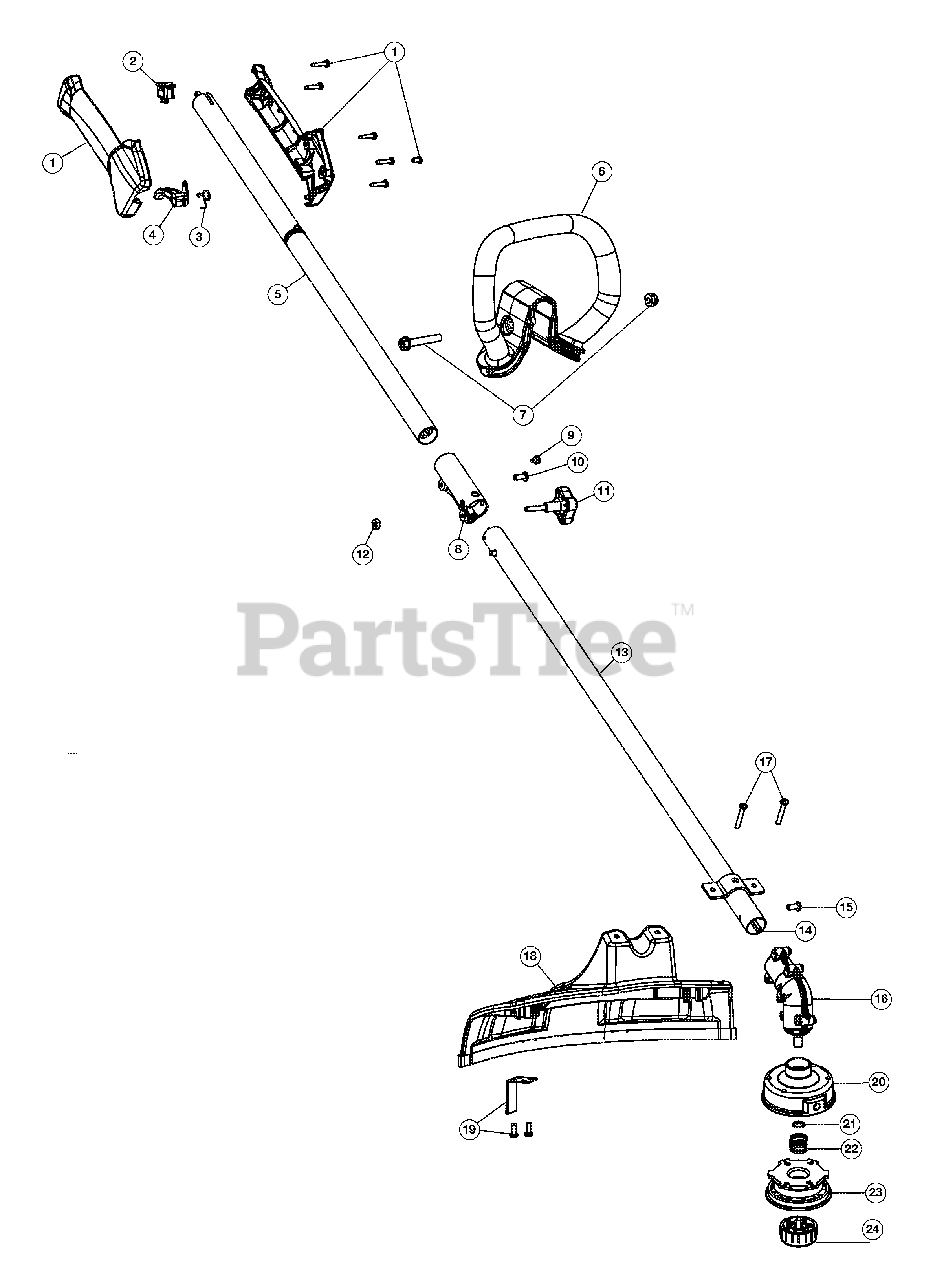

TB 32 EC (41BDZ32C766) - Troy-Bilt String Trimmer General Assembly Parts Diagram

String Trimmer

General Assembly Parts Diagram

  • Title

1

Troy-Bilt 753-04234

Throttle Housing Assembly (Incl. 2-4)

$21.99

$

In Stock, Qty 7

0

2

Troy-Bilt 791-182405

Switch

$10.99

$

In Stock, Qty 12

0

3

Troy-Bilt 753-04119

Throttle Trigger

$7.49

$

In Stock, Qty 18

0

4

Troy-Bilt 791-182690

Throttle Trigger Spring

$7.99

$

In Stock, only 2 left!

0

5

Troy-Bilt 753-04344

Upper Drive Shaft Housing Assembly

$85.99

$

In Stock, only 3 left!

0

6

Troy-Bilt 753-08042

D-Handle (Incl. 7)

$4.99

$

In Stock, Qty 7

0

7

Troy-Bilt 753-06040

D-Handle Bolt

$6.99

$

In Stock, only 1 left!

0

8

Troy-Bilt 753-1190

Split Boom Coupler (Incl. 9-12)

$23.99

$

In Stock, only 1 left!

0

9

Troy-Bilt 791-182057

Screw

$4.49

$

In Stock, only 3 left!

0

10

Troy-Bilt 791-181617

Bolt

$5.49

$

In Stock, Qty 11

0

11

Troy-Bilt 791-181981

Adjustment Knob (Incl. 12)
(Superseded to 697-00661-9)

$

$

Not available

12

Troy-Bilt 712-04018A

Knob Retaining Nut

$4.49

$

In Stock, Qty 5

0

13

Troy-Bilt 753-06139

Lower Drive Shaft Housing Assembly

$20.99

$

In Stock, Qty 20+

0

14

Troy-Bilt 753-05267

Lower Flexible Drive Shaft

$42.99

$

In Stock, only 1 left!

0

15

Troy-Bilt 7039

Anti-Rotation Screw

$4.99

$

In Stock, only 2 left!

0

16

Troy-Bilt 753-06571

Gear Box Assembly (Incl. 15 & 20-24)

$45.99

$

Usually ships in 3-6 days

0

17

Troy-Bilt 753-06125

Shield Mounting Screws

$6.99

$

In Stock, only 4 left!

0

18

Troy-Bilt 753-06123

Shield Assembly (Incl. 17 & 19)

$20.99

$

In Stock, Qty 10

0

19

Troy-Bilt 753-06126

Blade Assembly

$3.49

$

In Stock, Qty 5

0

20

Troy-Bilt 753-04284

Outer Spool Assembly

$28.99

$

In Stock, only 2 left!

0

21

Troy-Bilt 791-610660

Retainer

$4.99

$

In Stock, Qty 20+

0

22

Troy-Bilt 791-610317B

Spring

$10.99

$

In Stock, only 2 left!

0

23

Troy-Bilt 753-1155

Inner Reel

$22.99

$

In Stock, Qty 20+

0

24

Troy-Bilt 791-153066B

Bump Knob Assembly

$13.99

$

In Stock, Qty 18

0

Troy-Bilt 953-1156

Reel & Line Assembly

Note: (not shown)

$31.99

$

In Stock, only 1 left!

0
