TB 310 QS (41CSGBPG966) - Troy-Bilt Handheld Blower General Assembly Parts Diagram

Handheld Blower

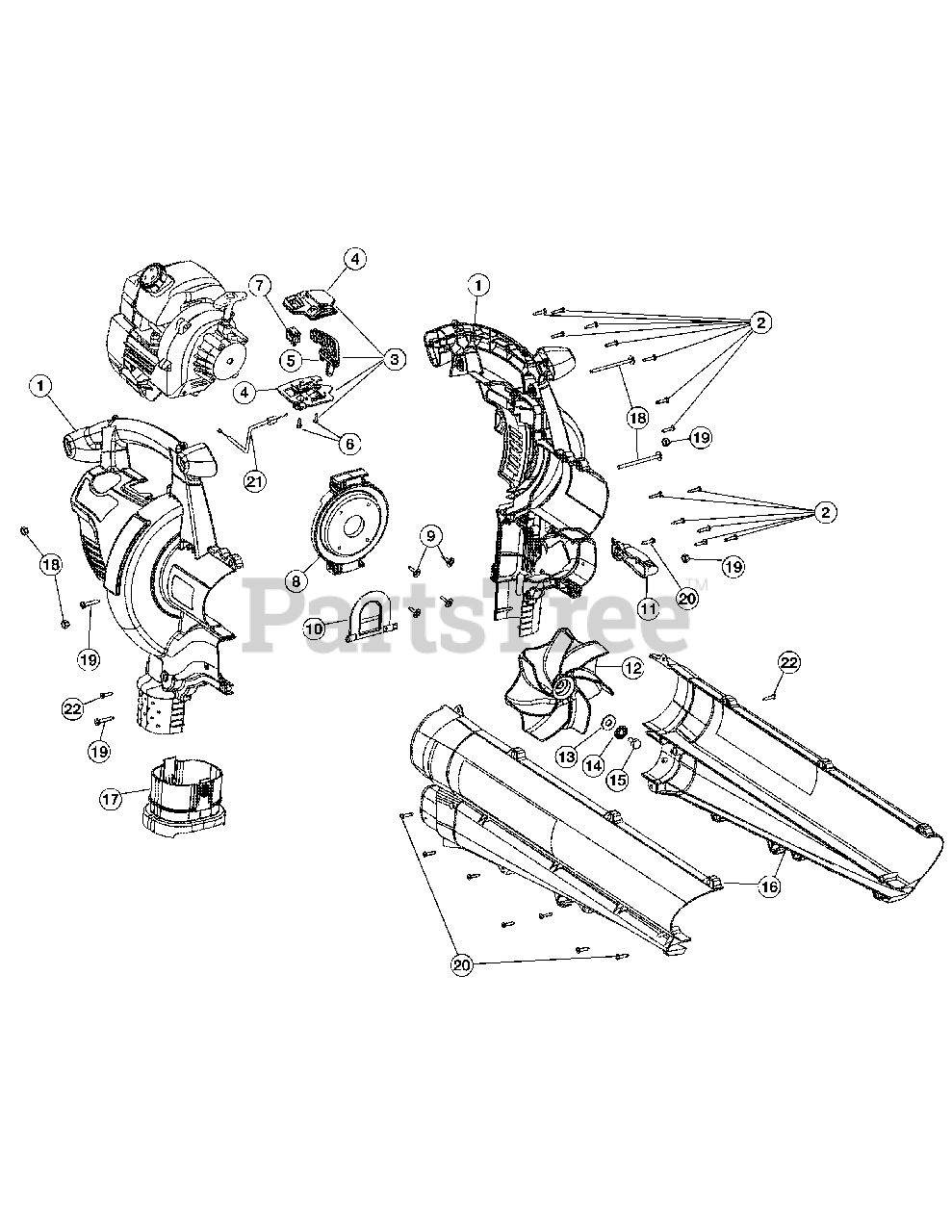

General Assembly Parts Diagram

  • Title

1

Troy-Bilt 753-04754

Engine Cover Assembly
(Superseded to 753-05061)

Note: (Incl. Ref. No. 2)

$

$

Not available

2

Troy-Bilt 753-04595

Cover Screw
(Superseded to 710-04194)

$4.49

$

In Stock, Qty 20+

0

3

Troy-Bilt 753-05013A

Throttle Control Assembly

Note: (Incl. Ref. No. 4-6)

$

$

Not available

4

Troy-Bilt 791-182422

Throttle Control Plates
(Superseded to 753-05013A)

Note: (Incl. Ref. No. 6)

$

$

Not available

5

Troy-Bilt 791-00048

Throttle Control Lever

$11.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 791-182423

Screw, Plastic

$

$

Not available

7

Troy-Bilt 791-182405

Rocker Switch Assembly

$10.99

$

In Stock, Qty 12

0

8

MTD 753-04809

Engine Mounting Plate

Note: (Incl. Ref. No. 10)

$

$

Not available

9

Troy-Bilt 753-04755

Screw, Plastic
(Superseded to 710-04215A)

$4.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 791-182410

Mode Control Flapper

$9.99

$

Usually ships in 3-6 days

0

11

MTD 791-00050

Mode Control Lever

Note: (Incl. Ref. No. 21)

$

$

Not available

12

Troy-Bilt 753-04596

Impeller Blade
(Superseded to 731-04275)

$35.99

$

In Stock, only 4 left!

0

13

Troy-Bilt 753-04833

Washer
(Superseded to 736-04107)

$4.49

$

In Stock, only 1 left!

0

14

Troy-Bilt 753-04834

Lock Washer
(Superseded to 736-04110A)

$5.49

$

In Stock, only 1 left!

0

15

Troy-Bilt 791-182414

Bolt

$4.99

$

Usually ships in 3-6 days

0

16

Troy-Bilt 791-00051

Blower/Vac Tube Assembly

Note: (Incl. Ref. No. 21)

$61.99

$

Usually ships in 3-6 days

0

17

Troy-Bilt 791-182417

Vacuum Bag Adapter

$18.99

$

Usually ships in 3-6 days

0

18

MTD 791-182424

Mounting Plate Hardware

$

$

Not available

19

Troy-Bilt 791-182425

Blower.Vac Tube Mounting Hardware

$

$

Not available

20

Troy-Bilt 791-181482

Screw

$4.49

$

Usually ships in 3-6 days

0

21

Troy-Bilt 791-00049

Throttle Cable

$

$

Not available

22

Troy-Bilt 791-181345

Screw

$4.49

$

In Stock, Qty 20+

0

Troy-Bilt 791-612930

Cable Tie

Note: Not shown

$10.99

$

Usually ships in 3-6 days

0

Troy-Bilt 753-04465

Vacuum Bag Assembly

Note: (Incl. Ref. No. 18 & Vacuum Bag & Cable Tie) Not shown

$72.99

$

In Stock, only 1 left!

0

Troy-Bilt 753-04325

Patio Head

Note: Not shown

$61.99

$

Usually ships in 3-6 days

0
