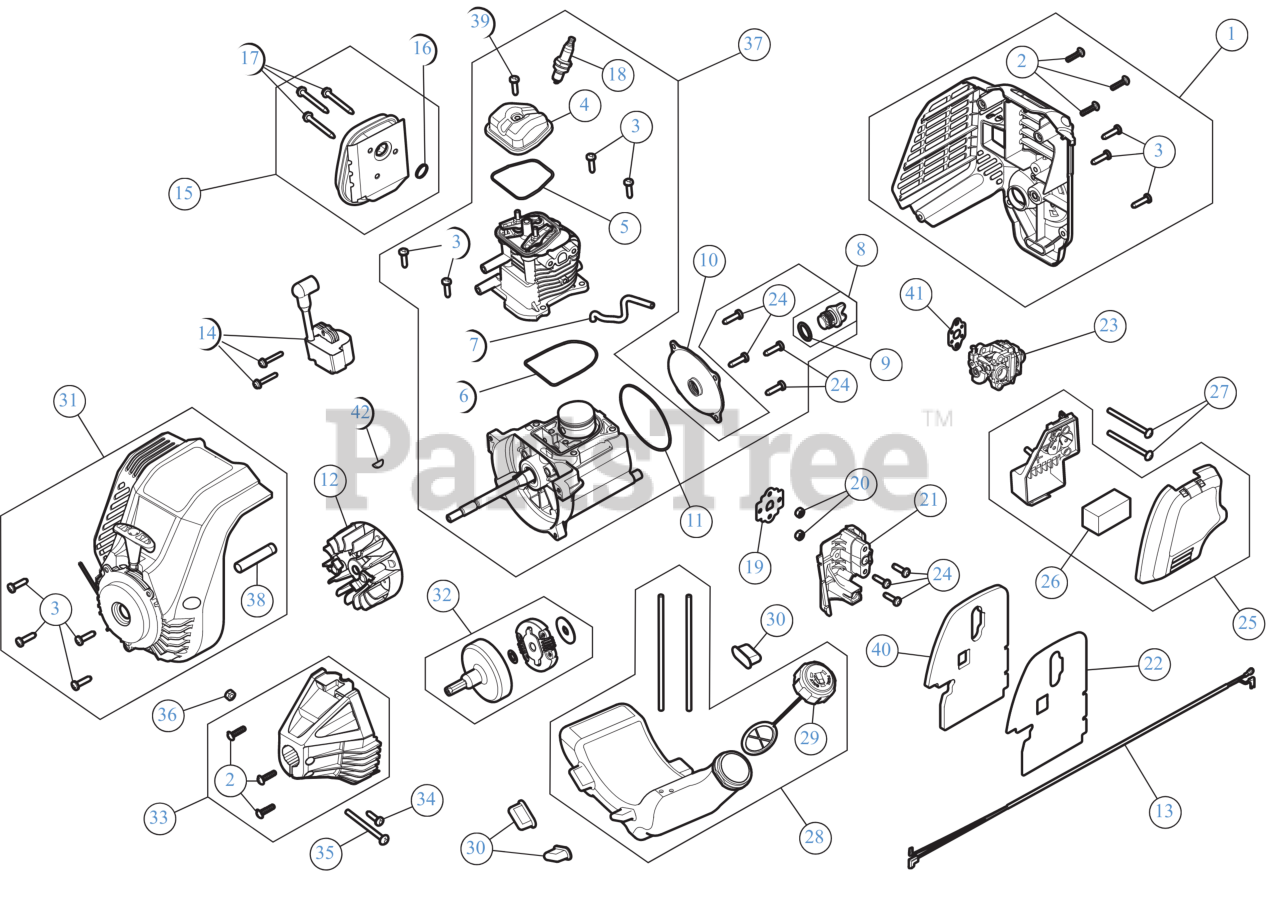

TB 304 S (41BD304S766) - Troy-Bilt String Trimmer Engine Assembly Parts Diagram

String Trimmer

Engine Assembly Parts Diagram

  • Title

1

Troy-Bilt 753-09884

REAR ENGINE COVER

Note: (Incl. 2 & 3)

$15.99

$

In Stock, only 1 left!

0

2

Troy-Bilt 710-04194

SCREW 8-16 x 3/4

$4.49

$

In Stock, Qty 20+

0

3

Troy-Bilt 710-04604

SCREW M5-0.8 x 19

$4.49

$

In Stock, Qty 20+

0

4

Troy-Bilt 753-05901

ROCKER COVER

$8.49

$

Usually ships in 3-6 days

0

5

Troy-Bilt 753-05902

O-RING

$5.49

$

In Stock, Qty 11

0

6

Troy-Bilt 753-05910

O-RING CYL AC5

$3.49

$

In Stock, only 1 left!

0

7

Troy-Bilt 753-10205

BREATHER HOSE

$4.49

$

In Stock, Qty 11

0

8

Troy-Bilt 753-05408

OIL PLUG

Note: (Incl. 9)

$29.99

$

In Stock, only 1 left!

0

9

Troy-Bilt 791-182290

RING, OIL PLUG (AC

$4.99

$

In Stock, Qty 9

0

10

Troy-Bilt 753-06259

CRANKCASE COVER

$8.49

$

Usually ships in 3-6 days

0

11

Troy-Bilt 753-05238

O-RING CRNKCSE CVR

$10.99

$

In Stock, only 1 left!

0

12

Troy-Bilt 753-06221

FLYWHEEL ASSEMBLY AC3.1

$21.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt 753-05264

LEAD WIRES

$16.99

$

In Stock, only 1 left!

0

14

Troy-Bilt 753-11255

MODULE ASSEMBLY

$43.99

$

Usually ships in 3-6 days

0

15

Troy-Bilt 753-05245

MUFFLER ASSEMBLY

Note: (Incl. 16 & 17)

$92.99

$

Usually ships in 3-6 days

0

16

Troy-Bilt 753-05244

GASKET/MUFFLER

$5.99

$

In Stock, Qty 8

0

17

Troy-Bilt 710-04809

SCREW M5 x 44MM

$3.49

$

In Stock, Qty 5

0

18

Troy-Bilt 794-00082

SPARK PLUG 4 CYCL

$7.49

$

In Stock, Qty 5

0

19

Troy-Bilt 753-05247

GASKET/INSULATOR

$

$

Not available

20

Troy-Bilt 712-04099

NUT 10-32

$6.99

$

Usually ships in 3-6 days

0

21

Troy-Bilt 841-020801S

CARB INSULATOR

$9.99

$

In Stock, only 1 left!

0

22

Troy-Bilt 753-06948

GASKET

$4.99

$

In Stock, only 2 left!

0

23

Troy-Bilt 751-22423

CARBURETOR
(Superseded to 753-11331)

$31.99

$

In Stock, only 2 left!

0

24

Troy-Bilt 9052-1

SCREW, M5 X18

$4.49

$

In Stock, Qty 7

0

25

Troy-Bilt 841-036210S

AIR CLEANER COVER

Note: (Incl. 26)

$9.49

$

Usually ships in 3-6 days

0

26

Troy-Bilt 753-05254

AIR FILTER

$5.99

$

In Stock, Qty 6

0

27

Troy-Bilt 710-04517

SCREW 10-32X2.5

$5.49

$

In Stock, Qty 20+

0

28

Troy-Bilt 753-06797

FUEL TANK ASSEMBLY

Note: (Incl. 29)

$21.99

$

In Stock, Qty 10

0

29

Troy-Bilt 753-1229

FUEL CAP ASSEMBLY 43MM-6 W/O HOLE

$22.99

$

Usually ships in 3-6 days

0

30

Troy-Bilt 753-05259

FUEL TANK PADS

$6.99

$

In Stock, Qty 20+

0

31

Troy-Bilt 753-10204

STARTER HOUSING (MTD RED)

Note: (Incl.  3 & 38)

$34.99

$

In Stock, only 1 left!

0

32

Troy-Bilt 753-06281

CLUTCH ASSEMBLY

$22.99

$

In Stock, Qty 10

0

33

Troy-Bilt 753-09887

CLUTCH COVER

Note: (Incl. 2)

$9.49

$

Usually ships in 3-6 days

0

34

Troy-Bilt 791-182519

SCREW, 8-32 x .312 P

$4.99

$

In Stock, only 4 left!

0

35

Troy-Bilt 9689A

SCREW

$11.99

$

In Stock, Qty 16

0

36

Troy-Bilt 712-0161

HEX NUT

$4.49

$

In Stock, Qty 20+

0

37

Troy-Bilt 841P021441S

SHORT BLOCK

Note: (Incl.  3-9, 11, 18, 24 & 39)

$98.99

$

Usually ships in 3-6 days

0

38

Troy-Bilt 750-04434

SPACER :2.165"

$6.99

$

In Stock, Qty 14

0

39

Troy-Bilt 791-181025

SCR, VALVE COVER

$2.99

$

Usually ships in 3-6 days

0

40

Troy-Bilt 753-06949

HEAT SHIELD

$5.99

$

In Stock, only 1 left!

0

41

Troy-Bilt 791-181709

CARBURETOR GASKET

$4.99

$

In Stock, Qty 20+

0

42

Troy-Bilt 914-04016

WOODRUFF KEY #403-.125 x .375

$4.49

$

In Stock, Qty 11

0
