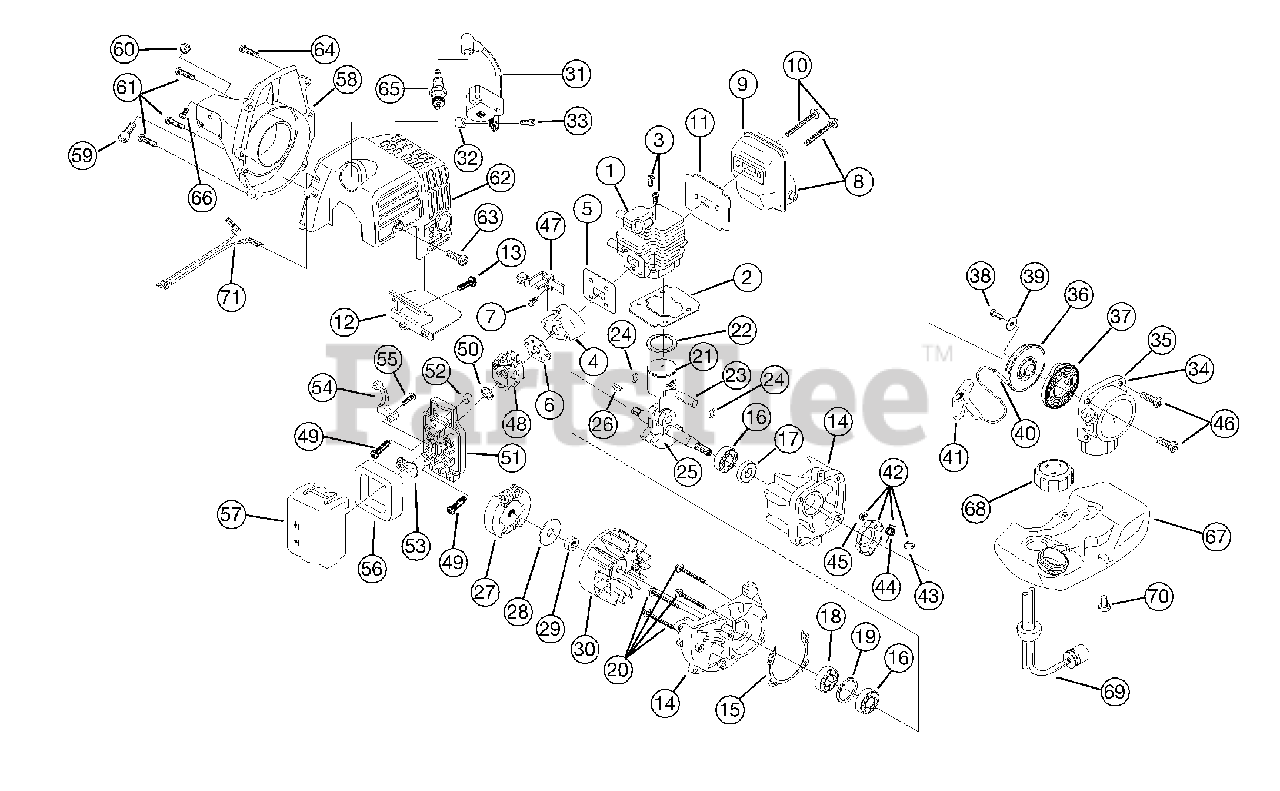

TB 3000 (41ADTB 3G063) - Troy-Bilt String Trimmer Engine Parts Parts Diagram

String Trimmer

Engine Parts Parts Diagram

  • Title

1

MTD 791-181704

Cylinder

$

$

Not available

2

Troy-Bilt 791-181705

Cylinder Base Gasket

$2.99

$

In Stock, only 1 left!

0

3

Troy-Bilt 791-181706

Bolt

$

$

Not available

4

MTD 791-181707

Insulator

$

$

Not available

5

Troy-Bilt 791-181708

Insulator Gasket

$

$

Not available

6

Troy-Bilt 791-181709

Carburetor Gasket

$4.99

$

In Stock, Qty 20+

0

7

MTD 791-181710

Screw and Washer

$

$

Not available

8

MTD 791-181711

Muffler Assembly

Note: (includes 9 & 10)

$

$

Not available

9

MTD 791-181712

Muffler

$

$

Not available

10

MTD 791-181713

Screw

$

$

Not available

11

MTD 791-181714

Muffler Gasket

$

$

Not available

12

Troy-Bilt 791-181715

Muffler Plate

$

$

Not available

13

Troy-Bilt 791-181716

Screw

$4.99

$

In Stock, only 2 left!

0

14

Troy-Bilt 791-181717

Crankcase Service Assembly

Note: (includes 15-19 & 25)

$

$

Not available

15

Troy-Bilt 791-181718

Crankcase Gasket

$

$

Not available

16

Troy-Bilt 791-181719

Bearing

$

$

Not available

17

Troy-Bilt 791-181720

Oil Seal

$

$

Not available

18

Troy-Bilt 791-181721

Oil Seal

$

$

Not available

19

MTD 791-181722

Snap Ring

$

$

Not available

20

Troy-Bilt 791-181723

Screw

$

$

Not available

21

MTD 791-181724

Piston

$

$

Not available

22

MTD 791-181725

Ring

$

$

Not available

23

Troy-Bilt 791-181726

Piston Pin

$

$

Not available

24

Troy-Bilt 791-181727

Snap Ring

$

$

Not available

25

MTD 791-181728

Crankshaft

$

$

Not available

26

MTD 791-181729

Key

$

$

Not available

27

Troy-Bilt 791-181730

Clutch

$46.99

$

In Stock, Qty 7

0

28

MTD 791-181074

Clutch Washer

$

$

Not available

29

Troy-Bilt 791-181731

Spacer

$

$

Not available

30

Troy-Bilt 791-181732

Flywheel Assembly

$

$

Not available

31

MTD 791-181733

Module Assembly

Note: (includes 32 & 33)

$

$

Not available

32

Troy-Bilt 791-181734

Spacer

$

$

Not available

33

Troy-Bilt 791-181735

Screw

$

$

Currently unavailable

34

MTD 791-181777

Recoil Assembly

Note: (includes 35-41)

$

$

Not available

35

MTD 791-181737

Recoil Case

$

$

Not available

36

Troy-Bilt 791-181738

Recoil Pulley

$

$

Not available

37

Troy-Bilt 791-181739

Recoil Spring

$17.99

$

Usually ships in 3-6 days

0

38

Troy-Bilt 791-181740

Screw

$

$

Not available

39

MTD 791-181741

Washer

$

$

Not available

40

Troy-Bilt 791-181742

Rope

$8.99

$

In Stock, only 1 left!

0

41

Troy-Bilt 791-181743

Pull Handle
(Superseded to 631-04164B)

$3.99

$

In Stock, Qty 11

0

42

MTD 791-182118

Pulley Assembly

Note: (includes 43-45)

$

$

Not available

43

MTD 791-181745

Ratchet

$

$

Not available

44

Troy-Bilt 791-181746

Spring

$4.99

$

Usually ships in 3-6 days

0

45

Troy-Bilt 791-181747

Retaining Ring

$

$

Not available

46

Troy-Bilt 791-181716

Screw

$4.99

$

In Stock, only 2 left!

0

47

MTD 791-181748

Throttle Bracket

$

$

Not available

48

Troy-Bilt 791-181749

Carburetor

Note: (includes Primer Bulb)

$

$

Not available

49

Troy-Bilt 791-181750

Screw

$6.49

$

Usually ships in 3-6 days

0

50

Troy-Bilt 791-181751

O-Ring

$4.49

$

In Stock, Qty 19

0

51

Troy-Bilt 791-181752

Air Cleaner Assembly

Note: (includes 52-55)

$25.99

$

In Stock, Qty 5

0

52

MTD 791-181753

Sleeve

$

$

Not available

53

Troy-Bilt 791-181754

Choke Plate

$

$

Not available

54

Troy-Bilt 791-181755

Choke Lever

$

$

Not available

55

Troy-Bilt 791-181756

Screw

$

$

Not available

56

Troy-Bilt 791-181757

Air Filter

$3.99

$

In Stock, Qty 20+

0

57

Troy-Bilt 791-181758

Air Cleaner Cover

$

$

Not available

58

MTD 791-182834

Clutch Housing Assembly

$

$

Not available

59

MTD 791-182844

Screw

$

$

Not available

60

MTD 791-182031

Nut

$

$

Not available

61

Troy-Bilt 791-181762

Screw

$

$

Not available

62

MTD 791-182835

Engine Cover

$

$

Not available

63

Troy-Bilt 791-181716

Screw

$4.99

$

In Stock, only 2 left!

0

64

Troy-Bilt 791-181762

Screw

$

$

Not available

65

Troy-Bilt 791-181765

Spark Plug

$10.99

$

Usually ships in 3-6 days

0

66

MTD 791-182844

Screw

$

$

Not available

67

MTD 791-181774

Fuel Tank

Note: (includes 70)

$

$

Not available

68

Troy-Bilt 791-180000

Fuel Cap Assembly
(Superseded to 791-180000B)

$19.99

$

Usually ships in 3-6 days

0

69

MTD 791-181767

Fuel Line Assembly

$

$

Not available

70

Troy-Bilt 791-181768

Screw

$

$

Not available

71

Troy-Bilt 791-181769

Lead Wire Assembly

$

$

Not available

MTD 791-181696

Spark Arrestor

Note: not shown

$

$

Not available

Troy-Bilt 791-181701

Primer Bulb

Note: not shown

$11.99

$

In Stock, Qty 7

0

Troy-Bilt 791-181702

Carburetor Repair Kit

Note: not shown

$

$

Not available

MTD 791-181703

Gasket/Diaphragm Repair Kit

Note: not shown

$

$

Not available
