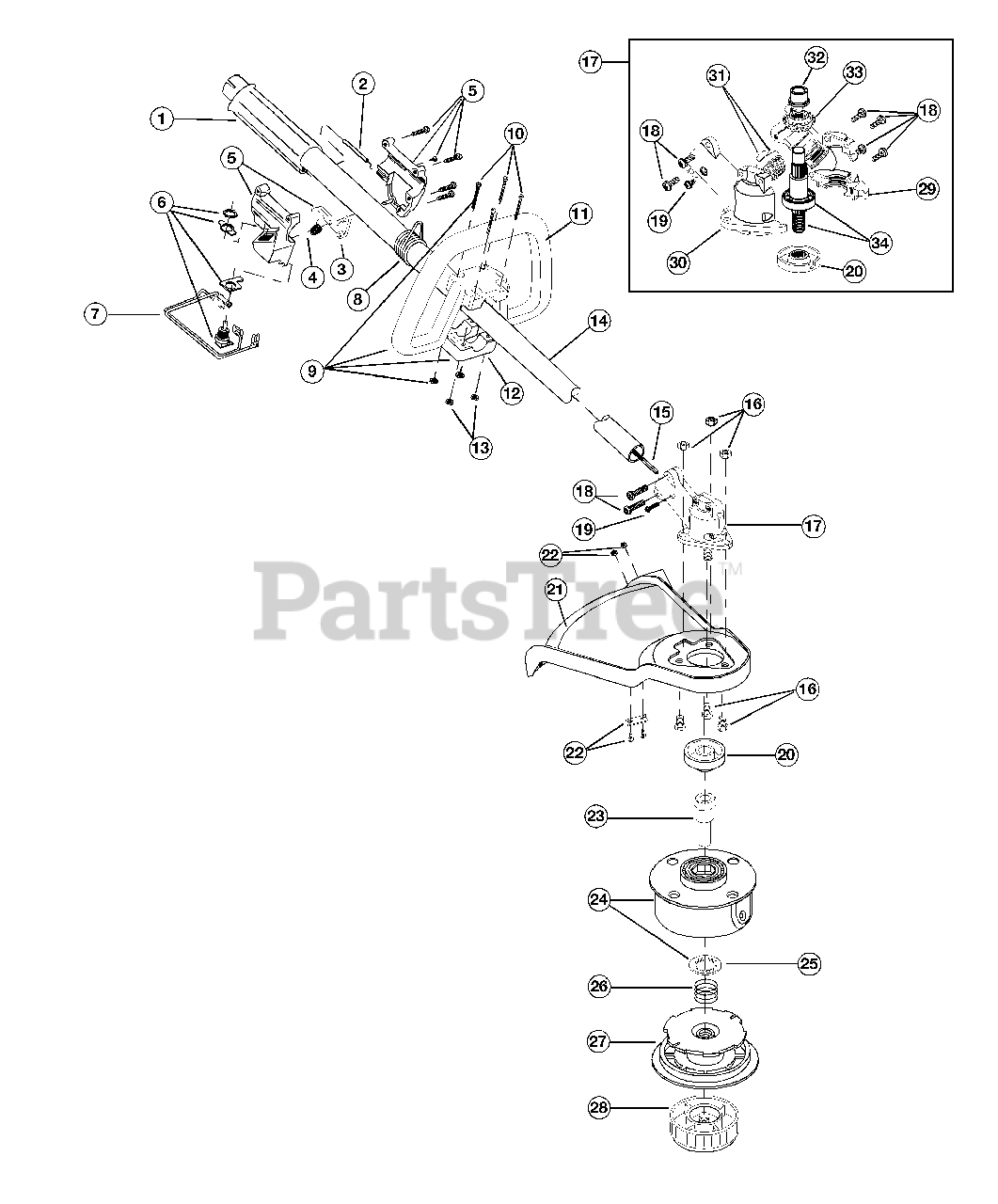

TB 3000 (41ADTB 3G063) - Troy-Bilt String Trimmer Boom And Trimmer Parts Parts Diagram

String Trimmer

Boom And Trimmer Parts Parts Diagram

  • Title

1

Troy-Bilt 791-180866

Grip

$

$

Not available

2

Troy-Bilt 791-181688

Throttle Cable Assembly
(Superseded to 753-05088)

$20.99

$

In Stock, only 3 left!

0

3

Troy-Bilt 791-180975

Throttle Trigger
(Superseded to 791-181807)

$9.99

$

In Stock, Qty 7

0

4

Troy-Bilt 791-610314

Throttle Trigger Spring

$9.99

$

Usually ships in 3-6 days

0

5

MTD 791-181689

Throttle Trigger Assembly

Note: (includes 4)

$

$

Not available

6

Troy-Bilt 791-180252

Switch Assembly

$

$

Not available

7

Troy-Bilt 791-181690

Wire Lead Assembly

$

$

Not available

8

Troy-Bilt 791-610327

Shoulder Harness Clamp

$32.99

$

Usually ships in 3-6 days

0

9

MTD 791-180869

Loop Handle Assembly

Note: (includes 10-13)

$

$

Not available

10

Troy-Bilt 791-181070

Screw

$4.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 791-182167

Loop Handle

$76.99

$

Usually ships in 3-6 days

0

12

MTD 791-182168

Bottom Clamp

$

$

Not available

13

Troy-Bilt 791-181810

Nut

$

$

Not available

14

MTD 791-182836

Drive Shaft Housing Assembly

$

$

Not available

15

Troy-Bilt 791-182837

Drive Shaft

$

$

Currently unavailable

16

Troy-Bilt 791-182200

Shield Mount Screw Assembly

$6.99

$

In Stock, only 2 left!

0

17

Troy-Bilt 791-182193

2 piece Gearbox Assembly

Note: (includes 18-20)

$99.99

$

In Stock, only 2 left!

0

18

Troy-Bilt 791-182195

Gearbox Mounting Hardware

$7.49

$

In Stock, Qty 20+

0

19

Troy-Bilt 791-145569

Anti-Rotation Screw

$9.99

$

In Stock, Qty 7

0

20

Troy-Bilt 791-182196

Blade Driver

$22.99

$

In Stock, only 1 left!

0

21

Troy-Bilt 791-182189

Shield and Blade Assembly

Note: (includes 22)

$65.99

$

Usually ships in 3-6 days

0

22

Troy-Bilt 791-682061

Blade Assembly

$14.99

$

In Stock, only 1 left!

0

23

Troy-Bilt 791-612483

Spool Shaft

$55.99

$

In Stock, only 1 left!

0

24

Troy-Bilt 791-683301

Outer Spool & Eyelet Assembly

Note: (includes 25)

$48.99

$

In Stock, Qty 6

0

25

Troy-Bilt 791-612026

Retainer
(Superseded to 1772)

$6.99

$

In Stock, Qty 13

0

26

Troy-Bilt 791-610636

Spring
(Superseded to 791-610636B)

$10.99

$

In Stock, only 2 left!

0

27

Troy-Bilt 791-147495

Inner Reel

$26.99

$

In Stock, Qty 7

0

28

Troy-Bilt 791-180814

Bump Head Knob Assembly
(Superseded to 791-180814B)

$21.99

$

In Stock, Qty 20+

0

29

MTD 791-182191

Left Housing

Note: 2 Piece Gearbox Assembly Parts - Item 17

$

$

Not available

30

MTD 791-182192

Right Housing

Note: 2 Piece Gearbox Assembly Parts - Item 17

$

$

Not available

31

Troy-Bilt 791-182194

Pinion Gear Assembly

Note: 2 Piece Gearbox Assembly Parts - Item 17

$31.99

$

Usually ships in 3-6 days

0

32

Troy-Bilt 791-182199

Output Shaft Bushing

Note: 2 Piece Gearbox Assembly Parts - Item 17

$

$

Not available

33

Troy-Bilt 791-182198

Output Shaft Gear

Note: 2 Piece Gearbox Assembly Parts - Item 17

$

$

Not available

34

Troy-Bilt 791-182197

Output Shaft Assembly

Note: (includes 32 & 33); 2 Piece Gearbox Assembly Parts - Item 17

$

$

Not available

Troy-Bilt 791-49U1341L063

Replacement Line, 0.095 Diameter

Note: Optional Accessory; Not Shown

$

$

Currently unavailable

Troy-Bilt 791-49U5001L063

Reel and Line Assembly

Note: Optional Accessory; Not Shown

$

$

Currently unavailable

Troy-Bilt 791-41AM079G063

Brush Cutter Accessory Kit

Note: Optional Accessory; Not Shown

$

$

Currently unavailable

Troy-Bilt 791-147498

Bump Head Assembly

Note: (includes 23-28); Optional Accessory; Not Shown

$117.99

$

In Stock, only 1 left!

0

Troy-Bilt 791-682075

Shoulder Harness
(Superseded to 791-682075B)

Note: Optional Accessory; Not Shown

$38.99

$

Usually ships in 3-6 days

0
