TB 30 R (13CC26JD211) - Troy-Bilt 30" Rear-Engine Riding Mower (2018) Fuel Tank Parts Diagram

30" Rear-Engine Riding Mower

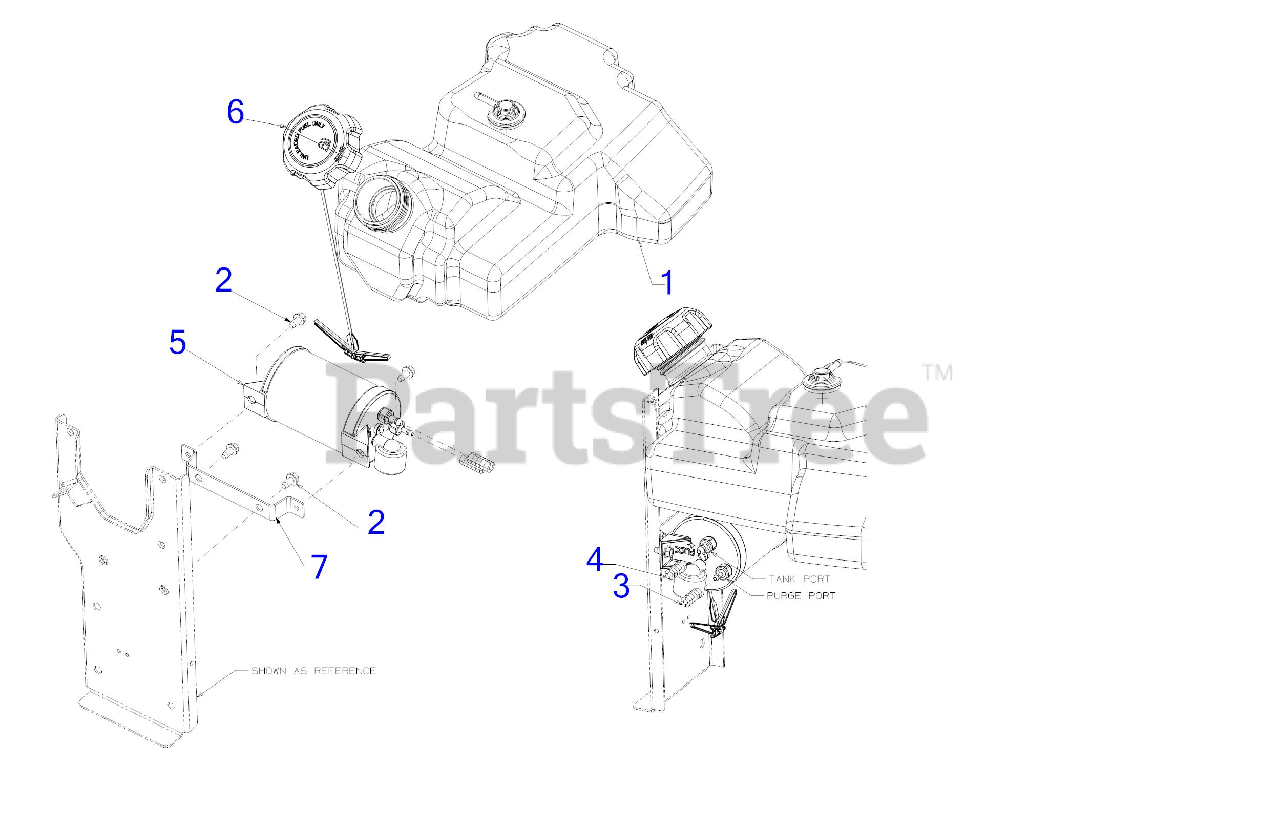

Fuel Tank Parts Diagram

  • Title

1

Troy-Bilt 951-04366B

FUEL TANK ASSEMBLY
(Superseded to 951-04366C)

$89.99

$

Usually ships in 3-6 days

0

1

Troy-Bilt 751-12118

ROLLOVER FUEL VALVE

Note: (Not Shown)

$35.99

$

In Stock, only 1 left!

0

1

Troy-Bilt 735-04081

RUBBER GROMMET 23.0 ID x 35.5 OD

Note: (Not Shown)

$4.99

$

In Stock, Qty 20+

0

2

Troy-Bilt 710-0599

SCREW 1/4-20 X.500

$4.49

$

In Stock, Qty 20+

0

3

Troy-Bilt 751-10749-22

FUEL HOSE LO PERMEATION 3/16 WHITE

$24.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 751-10750-28

FUEL HOSE LO PERMEATION 7/32 YELLOW

$

$

Not available

5

Troy-Bilt 951-12372

CARBON CANISTER
(Superseded to 951-12372A)

$71.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 951-12426A

FUEL CAP W/TETHER
(Superseded to 951-12426B)

$41.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 783-09289

CARBON CANISTER BRACKET

Variations

Troy-Bilt 783-09289-0637

BRKT-CARBON CNSTR - POWDER BLACK (0637)

$12.99

$

Usually ships in 3-6 days

0

$12.99

$

Usually ships in 3-6 days

0
