TB 30 R (13CC26JD211) - Troy-Bilt 30" Rear-Engine Riding Mower (2016) Seat Parts Diagram

30" Rear-Engine Riding Mower

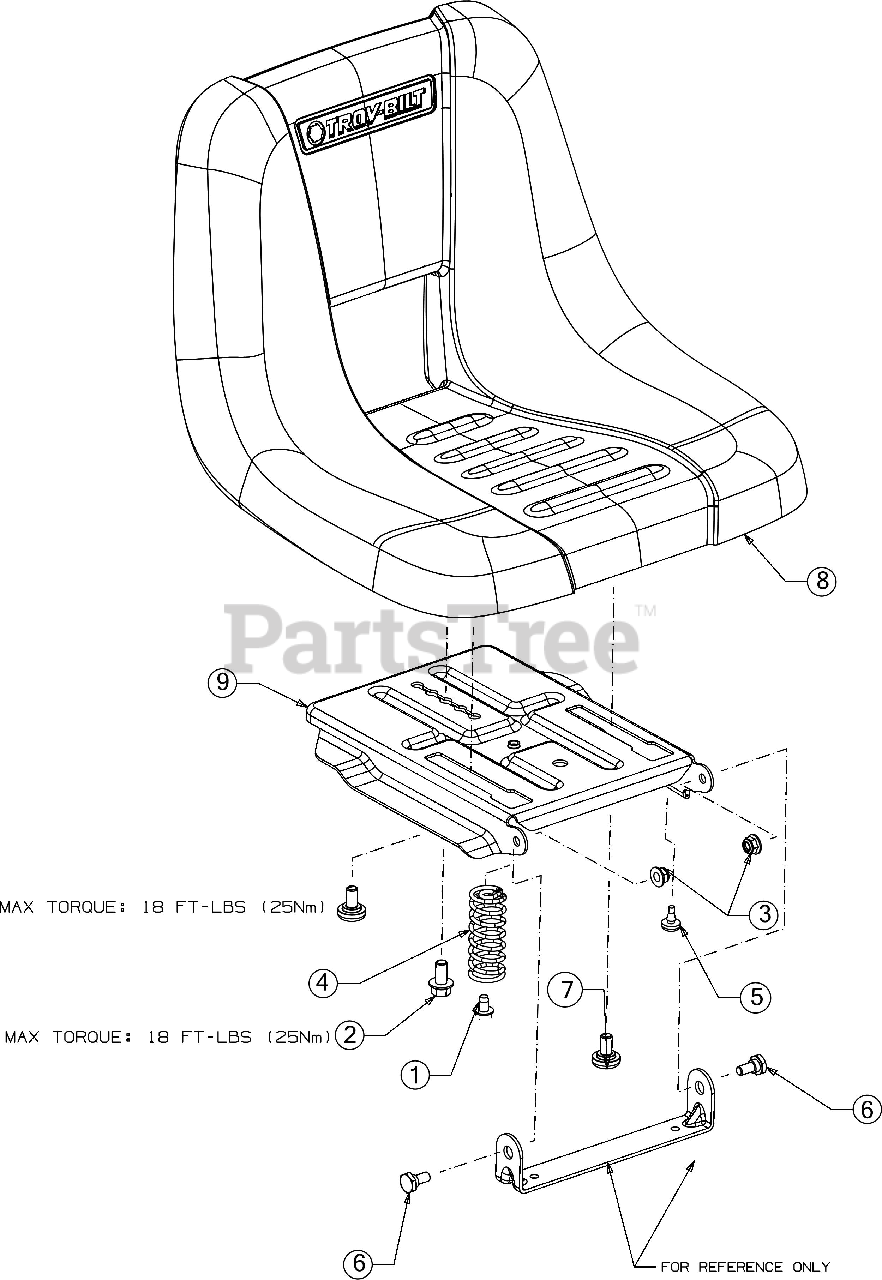

Seat Parts Diagram

  • Title

1

Troy-Bilt 710-0607

SCREW 5/16-18 x .500

$6.99

$

In Stock, Qty 11

0

2

Troy-Bilt 710-06095

SCREW 3/8-16 x .750 GR5

$3.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

4

Troy-Bilt 732-04905

SEAT SPRING

$3.99

$

In Stock, only 2 left!

0

5

Troy-Bilt 935-0199A

RUBBER BUMPER
(Superseded to 735-0199A)

$7.99

$

In Stock, only 4 left!

0

6

Troy-Bilt 938-0140

SHOULDER SCREW .437
(Superseded to 738-0140)

$

$

Not available

7

Troy-Bilt 738-04012C

SHOULDER SCREW.625 x .110:3/8-16

$5.49

$

In Stock, Qty 10

0

8

Troy-Bilt 757-05003

MEDIUM BACK SEAT

$275.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 783-07213A-0637

MANUAL SEAT ADJUSTMENT BRACKET

$33.99

$

In Stock, only 2 left!

0
