TB 30 R (13CC26JD011) - Troy-Bilt 30" Rear-Engine Riding Mower (2017) Wheels Parts Diagram

30" Rear-Engine Riding Mower

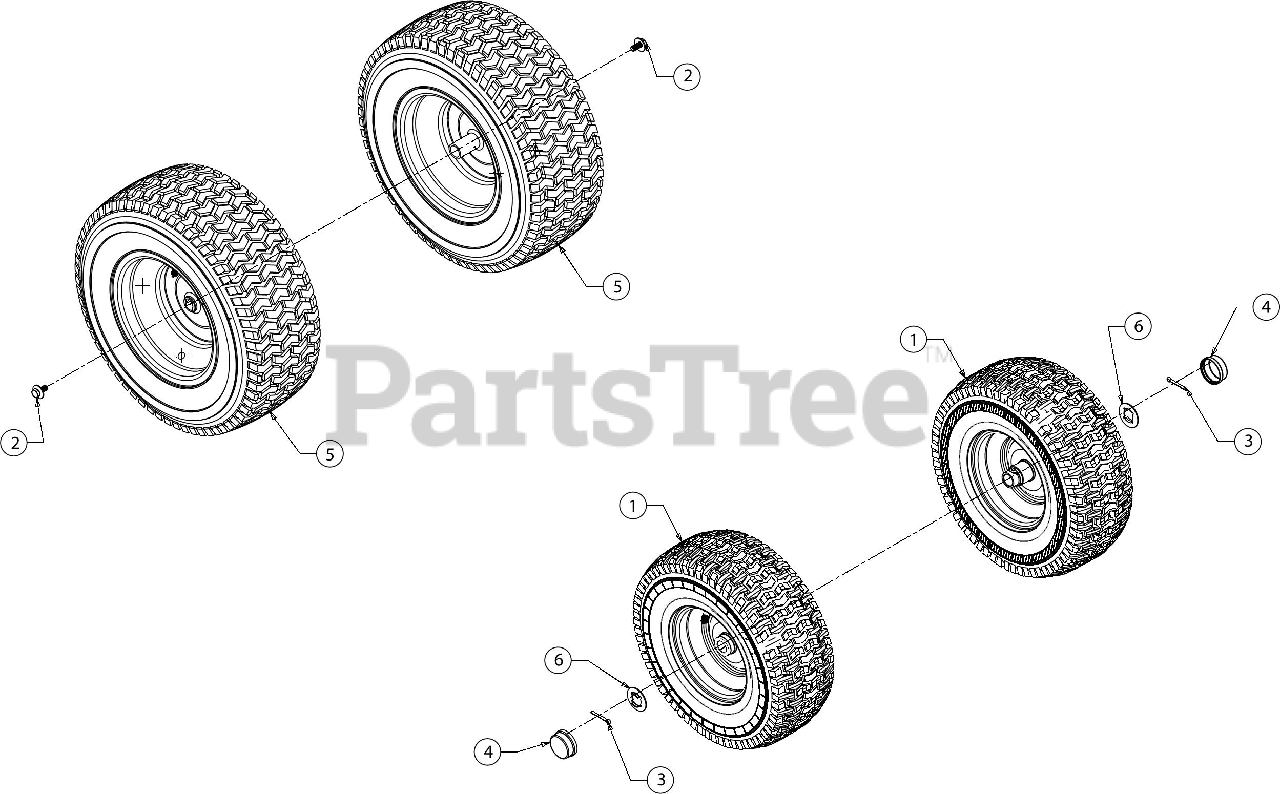

Wheels Parts Diagram

  • Title

1

Troy-Bilt 634-04726-0916

WHEEL ASSEMBLY (13 x 5 x 6) (OYSTER-DELI)
(Superseded to 634-04732)

$145.99

$

In Stock, Qty 5

0

1

Troy-Bilt 734-0298-0901

TUBELESS TIRE-13 x 5.0-6

Note: (Not Shown)

$41.99

$

In Stock, Qty 6

0

1

Troy-Bilt 741-0516B

FLANGE BEARING

Note: (Not Shown)

$6.49

$

In Stock, Qty 20+

0

1

Troy-Bilt 741-0990B

FLANGE BEARING W/ZERK FITTING

Note: (Not Shown)

$10.99

$

In Stock, Qty 20+

0

2

Troy-Bilt 710-05339A

SCREW 5/16-24 x .750 GR5

$4.49

$

In Stock, Qty 20+

0

3

Troy-Bilt 714-0162

COTTER PIN-5/32 DIA

$4.99

$

In Stock, Qty 20+

0

4

Troy-Bilt 931-0484A

HUB CAP-BLACK

$6.49

$

In Stock, Qty 20+

0

5

Troy-Bilt 634-0139-0911

WHEEL ASSEMBLY

$319.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 634-04174-0662

RIM ASSEMBLY (8.0X5.38) W/VALVE

Note: (Not Shown)

$67.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 934-0255

TUBELESS VALVE

Note: (Not Shown)

$4.49

$

In Stock, Qty 20+

0

5

Troy-Bilt 734-04641

TIRE-16.0 x 6.50 x 8.00 SQ SH DELI
(Superseded to 734-1727)

Note: (Not Shown)

$56.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 736-04228A

FLAT WASHER .781 ID x1.590 OD
(Superseded to 736-04228B)

$5.49

$

In Stock, Qty 20+

0
