TB 30 R (13CC26JD011) - Troy-Bilt 30" Rear-Engine Riding Mower (2016) Fender Parts Diagram

30" Rear-Engine Riding Mower

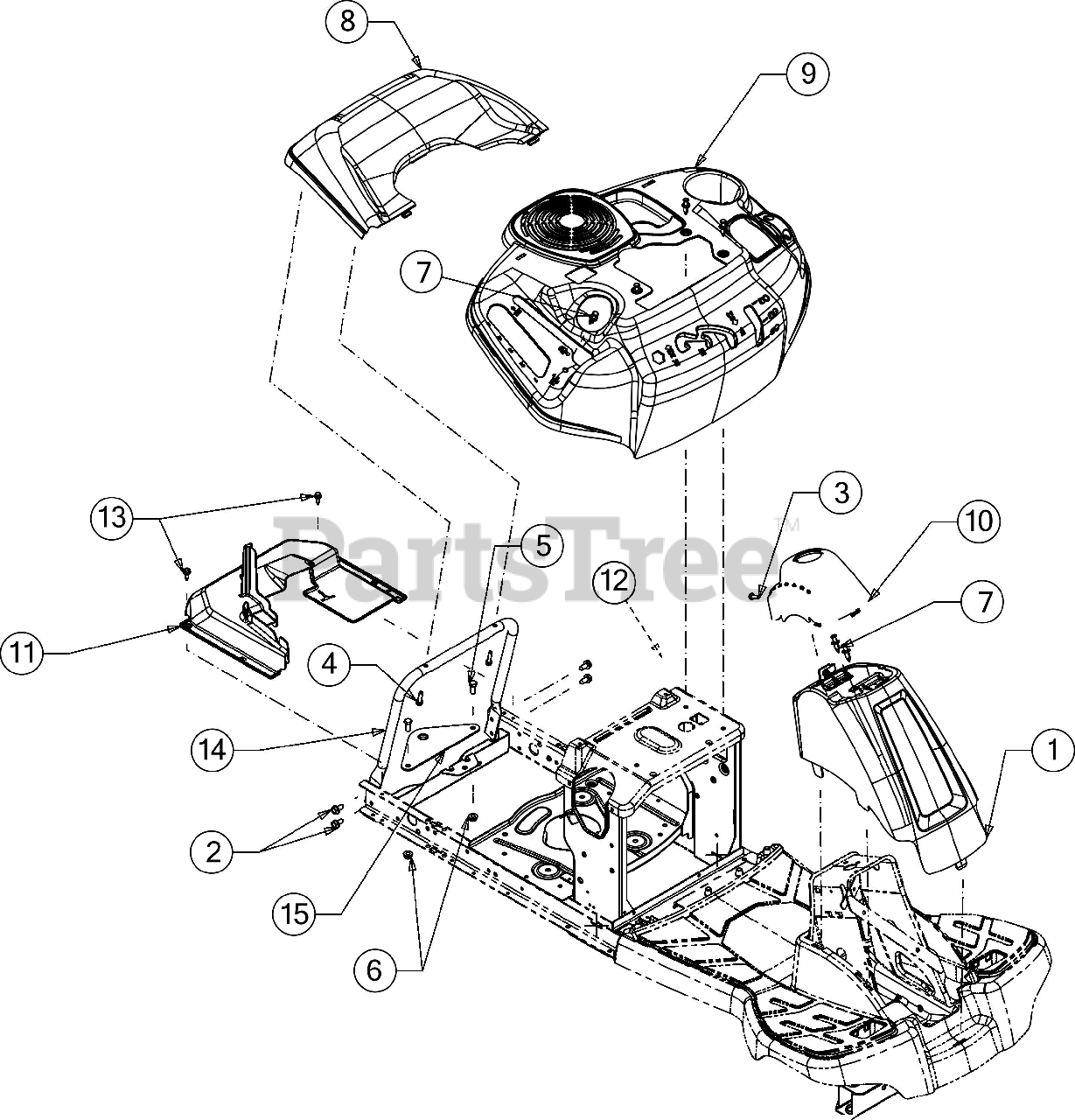

Fender Parts Diagram

  • Title

1

Troy-Bilt 631-05038

COLUMN COVER ASSEMBLY (MTD RED)

$33.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 710-04484

SCREW 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

3

Troy-Bilt 710-0924

SCREW 1/4-20X.75

$4.49

$

In Stock, Qty 20+

0

4

Troy-Bilt 710-1241

SCREW 1/4-15 x 1.00

$6.99

$

In Stock, Qty 19

0

5

Troy-Bilt 710-3008

SCREW 5/16-18 x .75 GR5

$4.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

7

Troy-Bilt 728-0199

PLASTIC RIVET

$4.49

$

In Stock, Qty 15

0

8

Troy-Bilt 731-08620A

REAR COVER

$33.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 931-08708A

FENDER
(Superseded to 931-08708B)

$86.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 731-09382

COLUMN STEERING CAP

$14.99

$

In Stock, only 1 left!

0

11

Troy-Bilt 731-10504

DRIVE OVER REAR

$50.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt 735-05006

BUMPER .62 DIA x .50

$4.49

$

Usually ships in 3-6 days

0

13

Troy-Bilt 738-04184A

SHOULDER SCREW

$6.99

$

In Stock, Qty 15

0

14

Troy-Bilt 749-04932-0637

REAR SUPPORT TUBE

$33.99

$

Usually ships in 3-6 days

0

15

Troy-Bilt 783-07208-0637

HITCH PLATE
(Superseded to 783-07208A-0637)

$8.49

$

Usually ships in 3-6 days
