TB 30 R (13CC26JD011) - Troy-Bilt 30" Rear-Engine Riding Mower (2015) Front End Steering Parts Diagram

30" Rear-Engine Riding Mower

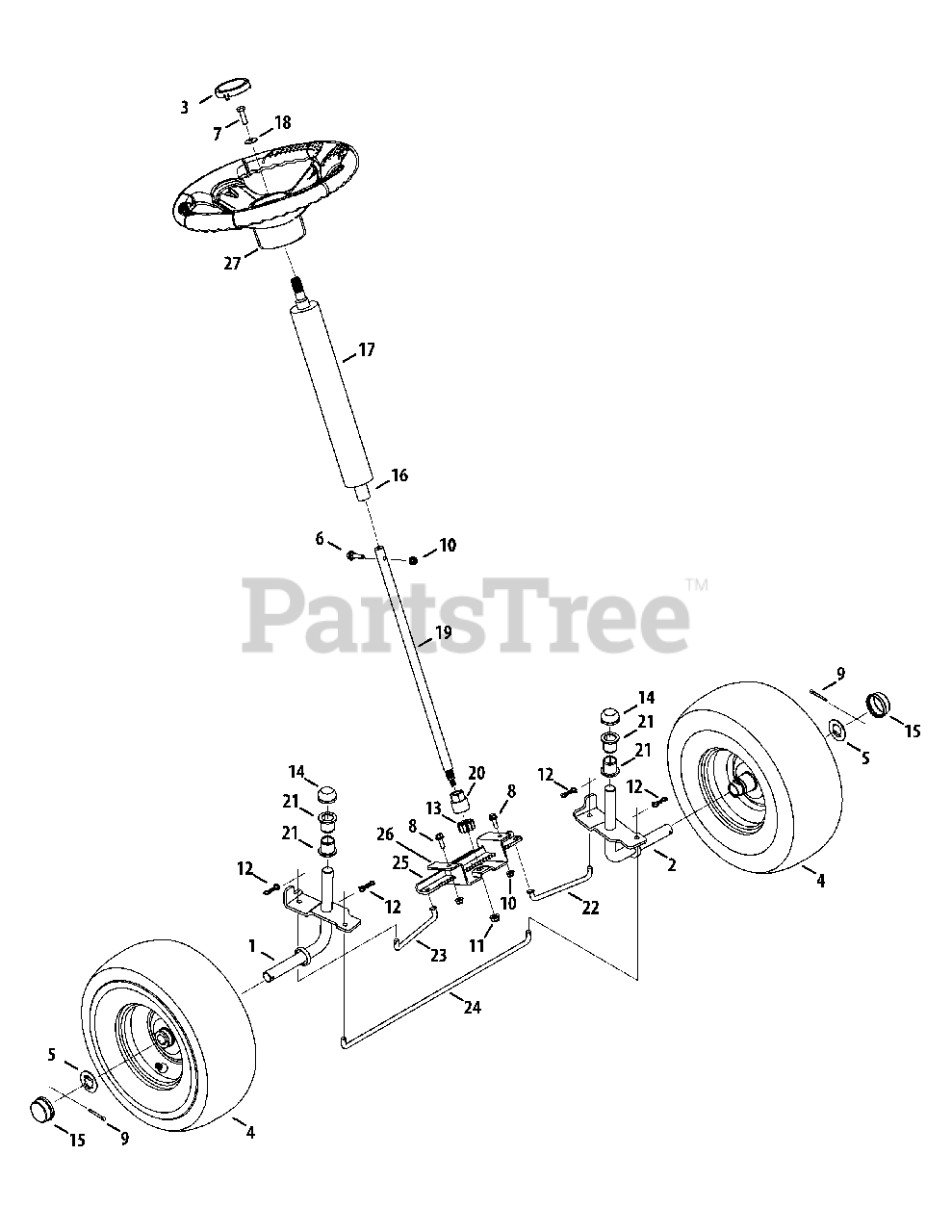

Front End Steering Parts Diagram

  • Title
1

Troy-Bilt 683-04726-0637

Front Axle Assembly, RH

$36.99

$

In Stock, only 1 left!

0

2

Troy-Bilt 683-04727-0637

Front Axle Assembly, LH

$36.99

$

In Stock, only 1 left!

0

3

Troy-Bilt 731-04681

Cap, Troy-Bilt

$14.99

$

In Stock, only 4 left!

0

4

Troy-Bilt 634-04726-0916

Complete Wheel Assembly
(Superseded to 634-04732)

$145.99

$

In Stock, Qty 5

0

5

Troy-Bilt 736-04228A

Washer, .781 x 1.59
(Superseded to 736-04228B)

$5.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 738-05000

Shoulder Screw, .375 x .148 x 1/4-20

$3.99

$

In Stock, Qty 20+

0

7

Troy-Bilt 710-0643

Hex Head Screw, 5/16-18:1.00

$6.99

$

In Stock, Qty 5

0

8

Troy-Bilt 710-0703

Carriage Screw, 1/4-20, .75

$4.49

$

In Stock, Qty 20+

0

9

Troy-Bilt 714-0162

Cotter Pin, 5/32 x 1.25

$4.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

11

Troy-Bilt 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

12

Troy-Bilt 714-04040

Bow-Tie Cotter Pin, 72

$1.49

$

In Stock, Qty 20+

0

13

Troy-Bilt 717-1554

Steering Pinion Gear

$10.99

$

In Stock, Qty 20+

0

14

Troy-Bilt 726-0341

Push Cap, 3/4

$4.99

$

In Stock, Qty 20+

0

15

$6.49

$

In Stock, Qty 20+

0

16

Troy-Bilt 983-04763-0637

Tube Assembly, Non-Telescoping

$40.99

$

Usually ships in 3-6 days

0

17

Troy-Bilt 723-04095A

Steering Sleeve
(Superseded to 723-04095B)

$29.99

$

In Stock, only 2 left!

0

18

Troy-Bilt 736-0242

Bevel Washer, .340X.872X.060

$4.49

$

In Stock, Qty 20+

0

19

Troy-Bilt 738-04537A

Steering Shaft, .625 OD X 18.03

$37.99

$

In Stock, Qty 20+

0

20

Troy-Bilt 741-04542A

Hex Flange Bearing, 5/8

$4.99

$

In Stock, Qty 20+

0

21

Troy-Bilt 741-0660A

Flange Bearing, .760 X .941 X 1.0

$3.49

$

In Stock, Qty 20+

0

22

Troy-Bilt 747-05514

Steering Rod, LH

$14.99

$

In Stock, only 1 left!

0

23

Troy-Bilt 747-05585

Steering Rod, RH

$14.99

$

In Stock, Qty 13

0

24

Troy-Bilt 747-06027

Front Tie Rod

$14.99

$

In Stock, only 1 left!

0

25

Troy-Bilt 783-06988A

Steering Rack Plate
(Superseded to 753-11064C)

$72.99

$

In Stock, Qty 20+

0

26

Troy-Bilt 783-07239A

Lower Steering Bearing
(Superseded to 753-11064C)

$72.99

$

In Stock, Qty 20+

0

27

Troy-Bilt 631-04008B

Steering Wheel, Soft Grip

$94.99

$

In Stock, only 4 left!

0
