TB 30 R (13CC26JD011) - Troy-Bilt 30" Rear-Engine Riding Mower (2015) Frame & Fender Parts Diagram

30" Rear-Engine Riding Mower

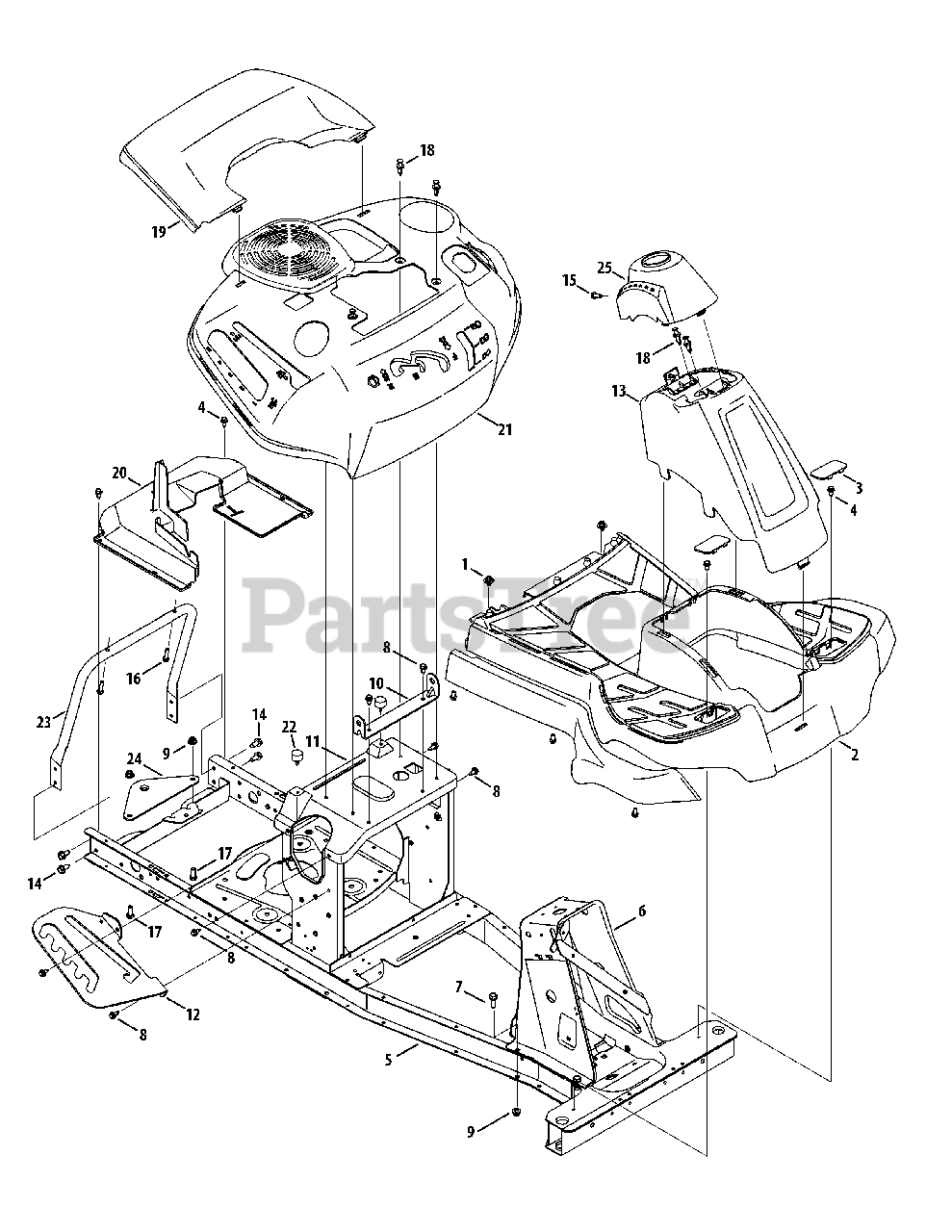

Frame & Fender Parts Diagram

  • Title

1

Troy-Bilt 710-05073

Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

2

Troy-Bilt 931-11075

Running Board, RMC

$102.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 731-08753A

Running Board Plug
(Superseded to 731-08753B)

$4.49

$

In Stock, Qty 20+

0

4

Troy-Bilt 738-04184A

Shoulder Screw, .368 X.113: 1/4-20

$6.99

$

In Stock, Qty 11

0

5

Troy-Bilt 683-05189-0637

Frame Assembly

$315.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 683-05167-0637

Column Assembly

$55.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 710-06194

Hex Washer Screw, 5/16-18 x .75

$3.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 710-1652

Tap Screw, 1/4-20, .625

$4.49

$

In Stock, Qty 20+

0

9

Troy-Bilt 912-0429

Hex Locknut, 5/16-18
(Superseded to 712-0429)

$4.49

$

In Stock, Qty 20+

0

10

Troy-Bilt 783-07168-0637

Seat Pivot Bracket

$6.49

$

In Stock, Qty 11

0

11

Troy-Bilt 783-08197-0637

Seat Pan

$41.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt 783-08260-0637

Deck Lift Index Bracket

$29.99

$

In Stock, only 1 left!

0

13

Troy-Bilt 631-05038

Column Cover

$33.99

$

Usually ships in 3-6 days

0

14

Troy-Bilt 710-04484

Tap Screw, 5/16-18, .750

$3.99

$

In Stock, Qty 20+

0

15

Troy-Bilt 710-0924

Machine Screw, 1/4-20, 0.750

$4.49

$

In Stock, Qty 20+

0

16

Troy-Bilt 710-1241

Hex Screw, 1/4-15, 1.000

$6.99

$

In Stock, Qty 18

0

17

Troy-Bilt 710-3008

Hex Head Screw, 5/16-18, .75

$4.49

$

In Stock, Qty 20+

0

18

Troy-Bilt 728-0199

Rivet, .3125

$4.49

$

In Stock, Qty 20+

0

19

Troy-Bilt 731-08620A

Rear Cover

$33.99

$

In Stock, only 1 left!

0

20

Troy-Bilt 731-10504

Top Rear Drive Cover

$50.99

$

Usually ships in 3-6 days

0

21

Troy-Bilt 931-08708A

Fender, (B&S Eng.)
(Superseded to 931-08708B)

$86.99

$

Usually ships in 3-6 days

0

22

Troy-Bilt 735-05006

Bumper, .62 Dia. x .50

$4.49

$

In Stock, Qty 20+

0

23

Troy-Bilt 749-04932-0637

Rear Cover Support Tube

$33.99

$

In Stock, Qty 16

0

24

Troy-Bilt 783-07208-0637

Hitch Plate
(Superseded to 783-07208A-0637)

$8.49

$

Usually ships in 3-6 days

0

25

Troy-Bilt 731-09382

Steering Column Cap

$14.99

$

Usually ships in 3-6 days
