TB 30 R (13CC26JD011) - Troy-Bilt 30" Rear-Engine Riding Mower (2014) Seat, Fuel Tank & Electrical Parts Diagram

30" Rear-Engine Riding Mower

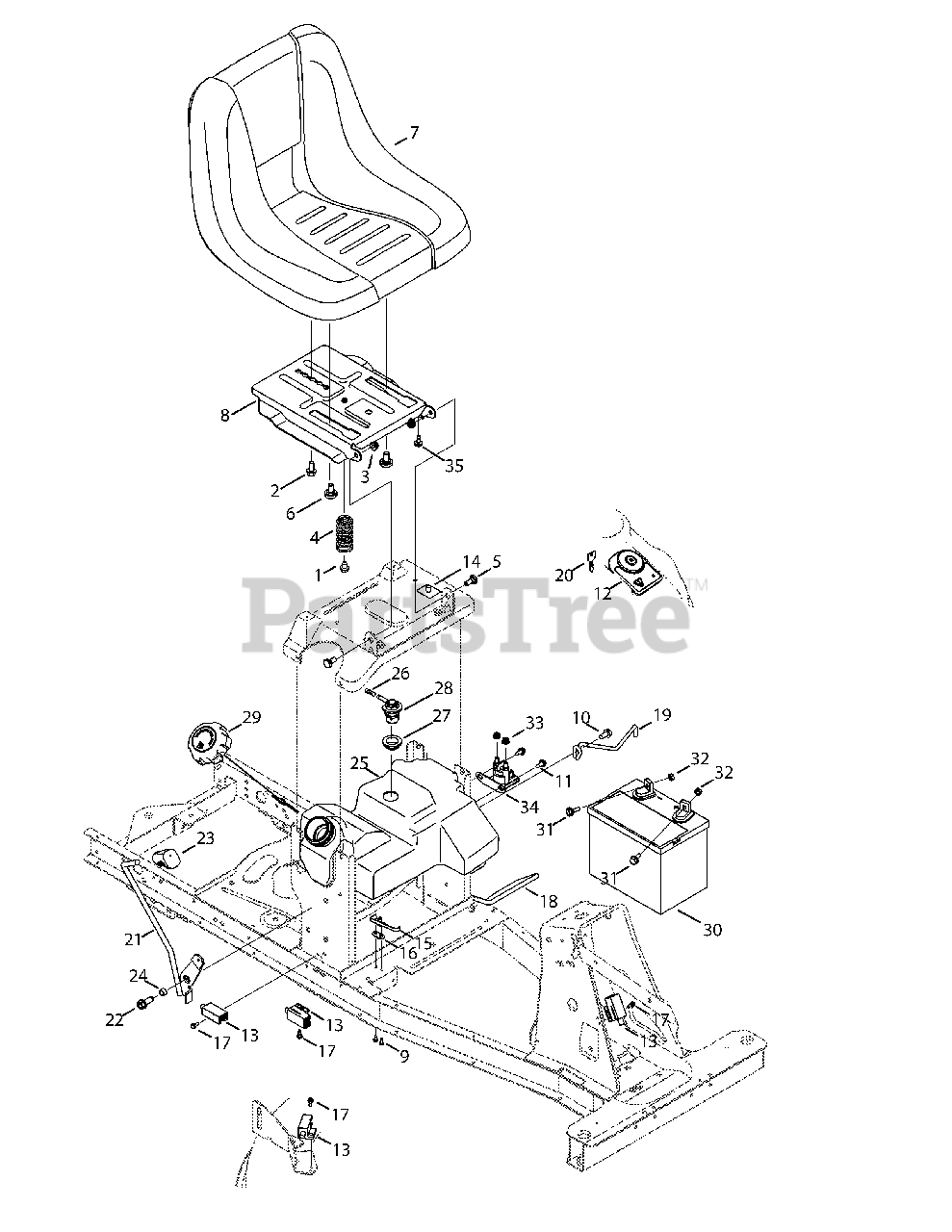

Seat, Fuel Tank & Electrical Parts Diagram

  • Title

1

Troy-Bilt 710-0607

Tap Screw, 5/16-18, 0.500

$6.99

$

In Stock, Qty 9

0

2

Troy-Bilt 710-06095

Hex Flange Screw, 3/8-16 x .75

$3.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

4

Troy-Bilt 732-04905

Seat Spring

$3.99

$

In Stock, only 2 left!

0

5

Troy-Bilt 938-0140

Shldr Spacer, .435 X .178-5/16 X .56
(Superseded to 738-0140)

$

$

Not available

6

Troy-Bilt 738-04012B

Shoulder Screw, .625 x .145, 3/8-16
(Superseded to 738-04012C)

$5.49

$

In Stock, Qty 12

0

7

Troy-Bilt 757-05003

Seat

$275.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 783-07213A-0637

Seat Pivot Bracket

$33.99

$

In Stock, only 2 left!

0

9

Troy-Bilt 710-0227

Screw, #8

$4.49

$

In Stock, Qty 20+

0

10

Troy-Bilt 710-04484

Tap Screw, 5/16-18, .750

$3.99

$

In Stock, Qty 20+

0

11

Troy-Bilt 710-1652

Tap Screw, 1/4-20, .625

$4.49

$

In Stock, Qty 20+

0

12

Troy-Bilt 925-06119

Key Switch
(Superseded to 925-06119C)

$116.99

$

In Stock, Qty 20+

0

13

Troy-Bilt 725-04363

Interlock Switch

$15.99

$

In Stock, Qty 8

0

14

Troy-Bilt 925-05013

Seat Switch

$31.99

$

In Stock, only 4 left!

0

15

Troy-Bilt 725-1643

Switch Spring

$10.99

$

In Stock, only 1 left!

0

16

Troy-Bilt 926-0320

Insulator Plate

$6.99

$

In Stock, Qty 11

0

17

Troy-Bilt 738-04237A

Shoulder Screw, #10-32, .500

$6.49

$

In Stock, Qty 7

0

18

Troy-Bilt 747-06131A

Battery Rod
(Superseded to 747-06131B)

$19.99

$

In Stock, Qty 10

0

19

Troy-Bilt 747-06148

Battery Hold Down Bracket

$6.49

$

In Stock, only 1 left!

0

20

Troy-Bilt 625-05002

Key, Assembly
(Superseded to 925-1745A)

$17.99

$

In Stock, Qty 20+

0

21

Troy-Bilt 683-04754-0637

PTO Handle Assembly

$13.99

$

Usually ships in 3-6 days

0

22

Troy-Bilt 710-04683A

Tap Screw, 3/8-16, 1.000
(Superseded to 710-04683C)

$6.49

$

In Stock, only 4 left!

0

23

Troy-Bilt 720-04049A

Handle Grip, 3/8

$16.99

$

In Stock, only 1 left!

0

24

Troy-Bilt 750-0526

Spacer, .380 ID x .50 OD x .265

$4.99

$

In Stock, only 1 left!

0

25

Troy-Bilt 951-04366B

Fuel Tank, 1-3 Gal.
(Superseded to 951-04366C)

$89.99

$

Usually ships in 3-6 days

0

26

Troy-Bilt 751-12089-28

Hose Vent, 3/16 EPA

$8.99

$

In Stock, only 1 left!

0

27

Troy-Bilt 735-04081

Rubber Grommet

$4.99

$

In Stock, Qty 20+

0

28

Troy-Bilt 751-12118

Rollover Valve

$35.99

$

In Stock, only 2 left!

0

29

Troy-Bilt 951-12179B

Fuel Cap
(Superseded to 951-12179C)

$38.99

$

In Stock, only 4 left!

0

30

Troy-Bilt 925-1707D

Battery, 155 CCA

$

$

Not available

31

Troy-Bilt 738-1132

Screw, Shoulder, .250 x .150

$5.49

$

In Stock, only 2 left!

0

32

Troy-Bilt 712-0271

Nut, Sems, 1/4-20

$4.49

$

In Stock, Qty 19

0

33

Troy-Bilt 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

34

Troy-Bilt 725-04439

Solenoid, 12v
(Superseded to 725-04439B)

$39.99

$

In Stock, Qty 20+

0

35

Troy-Bilt 935-0199A

Rubber Bumper, .63 Dia
(Superseded to 735-0199A)

$7.99

$

In Stock, only 2 left!

0

Troy-Bilt 925-06042

Wiring Harness

Note: (Not Shown)

$148.99

$

Usually ships in 3-6 days

0
