TB 30 R (13B226JD066) - Troy-Bilt 30" Rear-Engine Riding Mower (2014) Mower Deck Parts Diagram

30" Rear-Engine Riding Mower

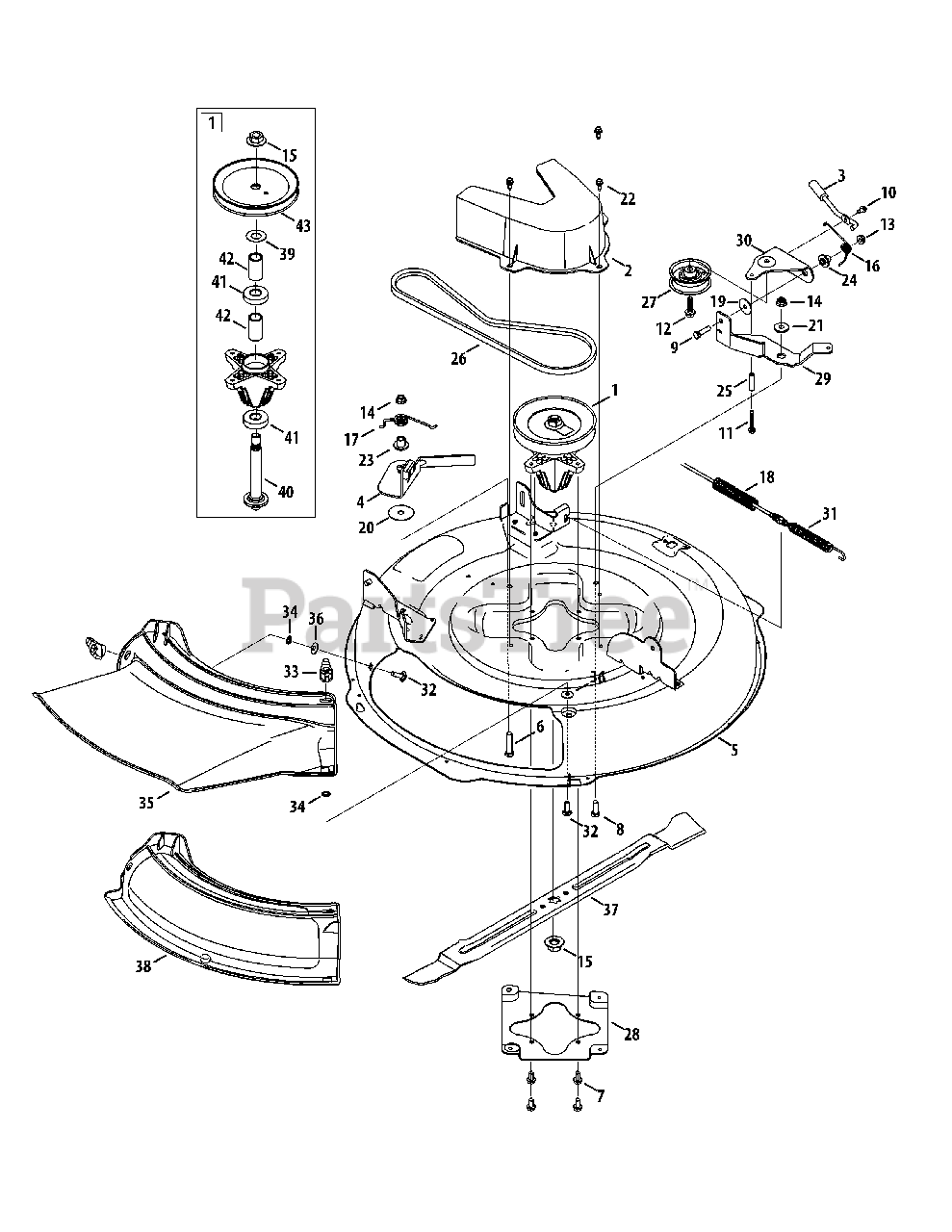

Mower Deck Parts Diagram

  • Title

1

Troy-Bilt 918-04822A

Spindle Pulley Assembly, 6.3 DIA
(Superseded to 918-04822B)

$121.99

$

In Stock, only 1 left!

0

2

Troy-Bilt 631-05024

Deck Belt Cover

$28.99

$

In Stock, Qty 20+

0

3

Troy-Bilt 647-05028

Idler Rod Assembly

$19.99

$

In Stock, only 3 left!

0

4

Troy-Bilt 983-05034

PTO Brake Assembly Bracket

$16.99

$

In Stock, Qty 18

0

5

Troy-Bilt 983-05040A-0637

Deck, 30" w/out Nozzle
(Superseded to 983-05040E-0637)

$270.99

$

In Stock, only 1 left!

0

6

Troy-Bilt 710-0347

Hex Cap Screw, 3/8-16 x 1.75

$5.49

$

In Stock, Qty 20+

0

7

Troy-Bilt 710-1260A

Tap Screw, 5/16-18, .750

$3.99

$

In Stock, Qty 20+

0

8

Troy-Bilt 710-0514

Hex Head Screw, 3/8-16, 1.00

$4.49

$

In Stock, Qty 20+

0

9

Troy-Bilt 710-0528

Hex Cap Screw, 5/16-18 x 1.25

$4.49

$

In Stock, Qty 20+

0

10

Troy-Bilt 710-0599

Tap Scew, 1/4-20, 0.500

$4.49

$

In Stock, Qty 20+

0

11

Troy-Bilt 710-1026

Tap Screw, 1/4-20, 1.750

$6.99

$

In Stock, Qty 13

0

12

Troy-Bilt 710-1315

Tap Screw, 3/8-16, 1.250

$4.49

$

In Stock, Qty 20+

0

13

Troy-Bilt 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

14

Troy-Bilt 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

15

Troy-Bilt 712-0417A

Flange Nut, 5/8-18

$6.99

$

In Stock, Qty 20+

0

16

Troy-Bilt 732-05045

PTO Torsion Spring

$4.49

$

In Stock, Qty 20+

0

17

Troy-Bilt 732-05046

Brake Torsion Spring

$4.49

$

In Stock, Qty 20+

0

18

Troy-Bilt 732-0583

Compression Spring, .625 x 4.0

$12.99

$

In Stock, Qty 19

0

19

Troy-Bilt 736-0362

Flat Washer, .330x1.250x.060

$4.49

$

In Stock, Qty 7

0

20

Troy-Bilt 736-3040

Flat Washer, .406 x 1.920 x .060

$6.49

$

In Stock, Qty 8

0

21

Troy-Bilt 938-0347

Shoulder Spacer, .625 ID X .169

$10.99

$

Usually ships in 3-6 days

0

22

Troy-Bilt 738-04184A

Shoulder Screw, .368 X.113: 1/4-20

$6.99

$

In Stock, Qty 11

0

23

Troy-Bilt 738-05021

Shoulder Spacer, .173 x .625 x .563

$4.49

$

In Stock, Qty 11

0

24

Troy-Bilt 738-05022

Shoulder Spacer, .134 x .500 x .438

$4.49

$

In Stock, Qty 20+

0

25

Troy-Bilt 750-04456

Spacer, .260 X .372 X 1.420 LG

$7.49

$

In Stock, only 3 left!

0

26

Troy-Bilt 954-05001

V-Type Belt, 43.5 LG

$45.99

$

In Stock, Qty 20+

0

27

Troy-Bilt 756-04224

Flat Idler Pulley, 2.75 OD

$26.99

$

In Stock, Qty 20+

0

28

Troy-Bilt 783-08047A

Deck Spindle Support Bracket

Variations

Troy-Bilt 783-08047A-0637

Spindle Support Bracket - POWDER BLACK (0637)

$16.99

$

In Stock, only 1 left!

0

$16.99

$

In Stock, only 1 left!

0

29

Troy-Bilt 783-08128

Lower Floating Idler Bracket

$16.99

$

In Stock, Qty 20+

0

30

Troy-Bilt 783-08226-0637

Upper Floating Idler Bracket
(Superseded to 783-08226A-0637)

$12.99

$

In Stock, Qty 20+

0

31

Troy-Bilt 946-04802A

PTO Cable

$38.99

$

In Stock, only 1 left!

0

32

Troy-Bilt 710-04998

Carriage Screw, 5/16-18, 1.00

$5.99

$

In Stock, Qty 5

0

33

Troy-Bilt 720-04122

Wing Knob, 5/16-18

$6.99

$

In Stock, Qty 12

0

34

Troy-Bilt 726-0201

Speed Nut, .3125 ID

$6.99

$

In Stock, only 2 left!

0

35

Troy-Bilt 731-10267

Chute Deflector

$32.99

$

In Stock, only 1 left!

0

36

Troy-Bilt 736-0242

Bevel Washer, .340X.872X.060

$4.49

$

In Stock, Qty 20+

0

37

Troy-Bilt 942-04385

Cutting Blade, 30.00" 3-IN-1

$37.99

$

In Stock, Qty 11

0

38

Troy-Bilt 731-09312

Mulch Plug

$23.99

$

In Stock, only 3 left!

0

39

Troy-Bilt 936-0351

Shim Washer, .760X1.500X.030
(Superseded to 736-0351)

$4.49

$

In Stock, Qty 20+

0

40

Troy-Bilt 738-1186A

Spindle Shaft, 6.11 LG.

$49.99

$

In Stock, Qty 14

0

41

Troy-Bilt 941-0919B

Ball Bearing, .787ID X 1.85 ODX.551

$21.99

$

In Stock, Qty 20+

0

42

Troy-Bilt 750-04936

Spacer, .792 X 1.060 X 1.860 LG

$6.99

$

In Stock, Qty 20+

0

43

Troy-Bilt 956-1227

Deck Pulley, 6.3 DIA

$26.99

$

In Stock, only 4 left!

0
