TB 30 R (13B226JD066) - Troy-Bilt 30" Rear-Engine Riding Mower (2013) Engine Accessories Parts Diagram

30" Rear-Engine Riding Mower

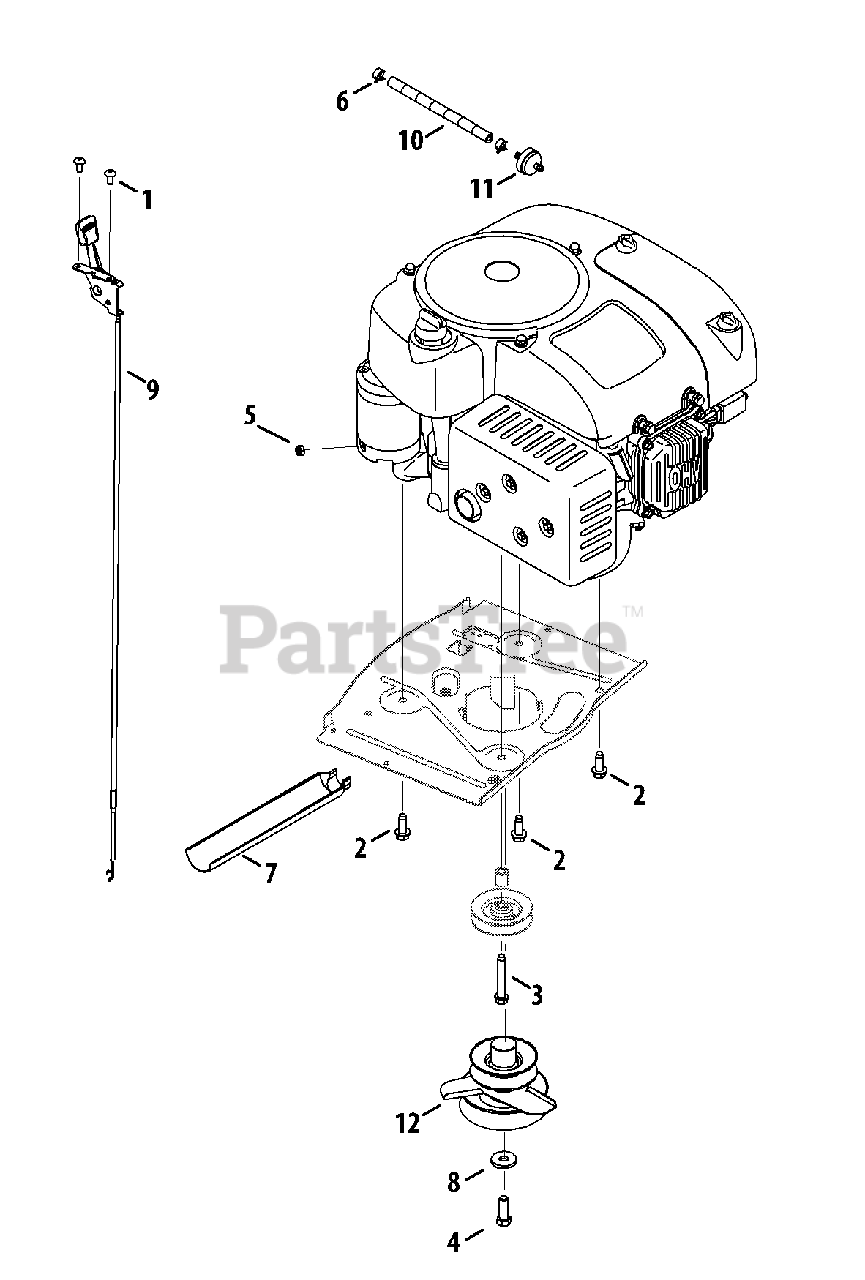

Engine Accessories Parts Diagram

  • Title
1

Troy-Bilt 710-04483

Tap Screw, 1/4-20, 0.500

$6.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 710-04683A

Tap Screw, 3/8-16, 1.000
(Superseded to 710-04683C)

$6.49

$

In Stock, Qty 5

0

3

Troy-Bilt 710-05446

Tap Screw, 3/8-16, 2.250

$3.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 710-06067

Hex Head Screw, 7/16-20 x 1.25

$3.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 912-0691

Nut, Hex Nylon Lock, M6-1.0
(Superseded to 712-0691)

$

$

Not available

6

Troy-Bilt 726-0205

Hose Clamp, .490 DIA.

$3.99

$

In Stock, Qty 20+

0

7

Troy-Bilt 731-1682A

Oil Drain Sleeve

$7.99

$

In Stock, Qty 6

0

8

Troy-Bilt 736-0322

Flat Washer, .450 x 1.25 x .164

$9.49

$

In Stock, Qty 7

0

9

Troy-Bilt 946-04829A

Throttle/Choke Cable 31 Lg.
(Superseded to 946-04829B)

$35.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 751-10349

Low Permeation Fuel Line, 1/4

$9.49

$

Usually ships in 3-6 days

0

11

Troy-Bilt BS-298090S

Fuel Filter, 1/4", 298090

$

$

Not available

12

Troy-Bilt 756-04479A

Engine Pulley, 4.46 / 3.39
(Superseded to 756-06043)

$67.99

$

Usually ships in 3-6 days

0
