TB 30 R (13AC26JD011) - Troy-Bilt 30" Rear-Engine Riding Mower (2012) Frame & Fender Parts Diagram

30" Rear-Engine Riding Mower

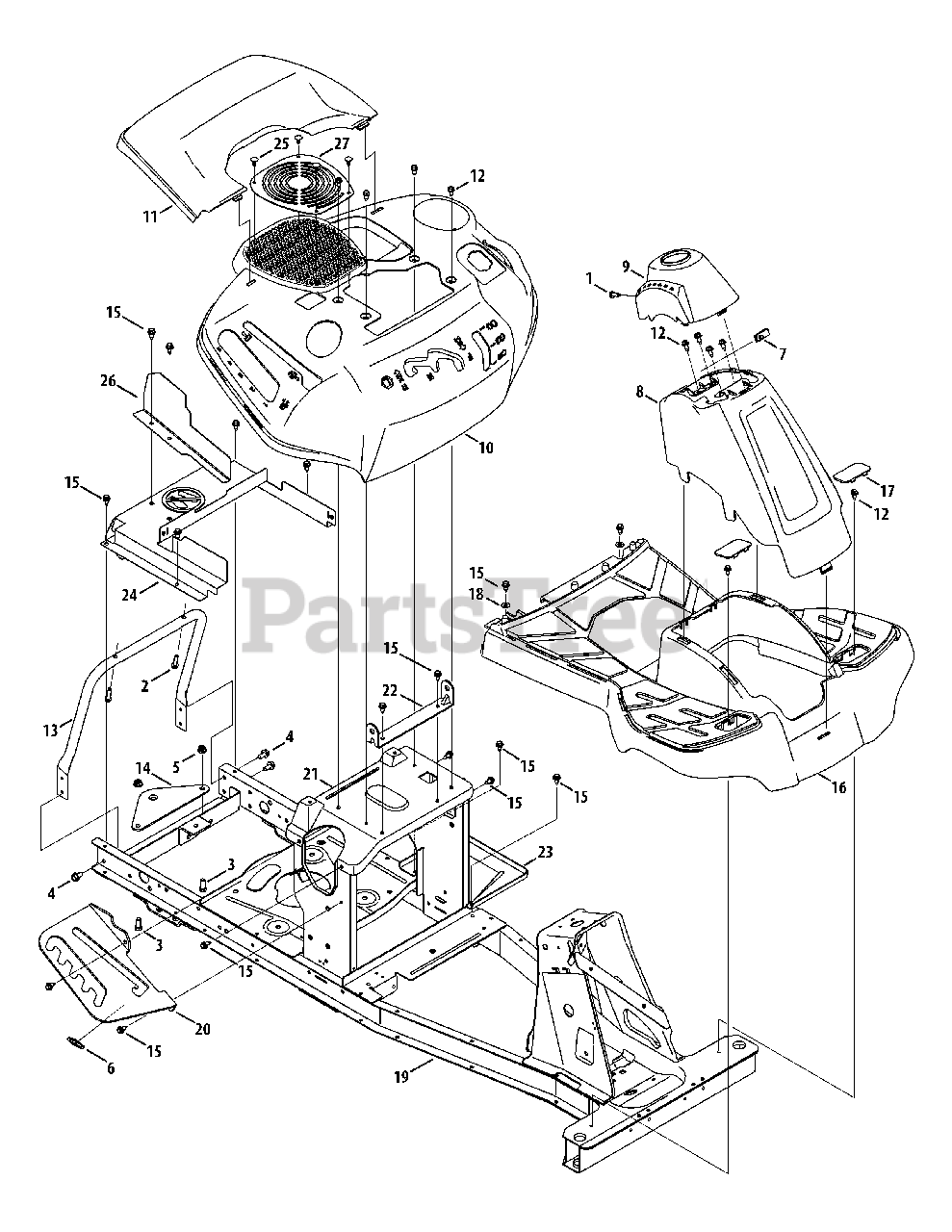

Frame & Fender Parts Diagram

  • Title
1

Troy-Bilt 710-0924

Machine Screw, 1/4-20, 0.750

$4.49

$

In Stock, Qty 20+

0

2

Troy-Bilt 710-1241

Hex Screw, 1/4-15, 1.000

$6.99

$

In Stock, Qty 19

0

3

Troy-Bilt 710-3008

Hex Head Screw, 5/16-18, .75

$4.49

$

In Stock, Qty 20+

0

4

Troy-Bilt 710-04484

Screw 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

5

Troy-Bilt 712-04063

Flange Locknut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 726-0221

Speed Nut

$6.49

$

In Stock, only 1 left!

0

7

Troy-Bilt 712-04092

U-type Speed Nut, 1/4-20

$5.99

$

In Stock, only 2 left!

0

8

Troy-Bilt 731-08633

Column Cover

$39.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 731-08635

Steering Column Cap

$16.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 731-08827

Fender, (B&S Eng.)
(Superseded to 731-08827A)

$74.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 631-04655

Fender, (MTD Eng. 4P90JUA)

$

$

Not available

11

Troy-Bilt 731-08620

Rear Cover
(Superseded to 731-08620A)

$33.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt 738-04184A

Shoulder Screw, .368 X.113 x 1/4-20

$6.99

$

In Stock, Qty 15

0

13

Troy-Bilt 749-04932-0637

Rear Cover Support Tube

$33.99

$

Usually ships in 3-6 days

0

14

Troy-Bilt 783-07208-0637

Hitch Plate
(Superseded to 783-07208A-0637)

$8.49

$

Usually ships in 3-6 days

0

15

Troy-Bilt 710-1652

Tap Screw, 1/4-20, .625

$4.49

$

In Stock, Qty 20+

0

16

Troy-Bilt 731-08528

Running Board
(Superseded to 731-08528A)

$

$

Not available

17

Troy-Bilt 731-08753

Running Board Plug
(Superseded to 731-08753B)

$4.49

$

In Stock, Qty 20+

0

18

Troy-Bilt 936-0463

Flat Washer, .250 x .630 x .052
(Superseded to 736-0463)

$4.49

$

In Stock, only 2 left!

0

19

Troy-Bilt 683-04751-0637

Frame Assembly

$

$

Not available

20

Troy-Bilt 783-07125-0637

Deck Lift Index Bracket
(Superseded to 783-08260-0637)

$29.99

$

In Stock, only 1 left!

0

21

Troy-Bilt 783-07162-0637

Seat Pan
(Superseded to 783-08197)

$41.99

$

Usually ships in 3-6 days

0

22

Troy-Bilt 783-07168-0637

Seat Pivot Bracket

$6.49

$

In Stock, Qty 12

0

23

$18.99

$

Usually ships in 3-6 days

0

24

Troy-Bilt 783-07302

Top Rear Drive Cover

$64.99

$

Usually ships in 3-6 days

0

24

Troy-Bilt 783-07386A

Top Rear Drive Cover, (MTD Eng. 4P90JUA)

$64.99

$

Usually ships in 3-6 days

0

25

Troy-Bilt 726-3046

Clip, .250 Dia., (MTD Eng. 4P90JUA)

$3.99

$

In Stock, Qty 16

0

26

Troy-Bilt 783-07388A

Shield, (MTD Eng. 4P90JUA)

$

$

Not available

27

Troy-Bilt 783-07402-0637

Screen Cover, (MTD Eng. 4P90JUA)

$

$

Not available
