TB 30 R (13AC21JD011) - Troy-Bilt 30" Rear-Engine Riding Mower, Hydro Drive (2018) Engine Accessories Parts Diagram

30" Rear-Engine Riding Mower, Hydro Drive

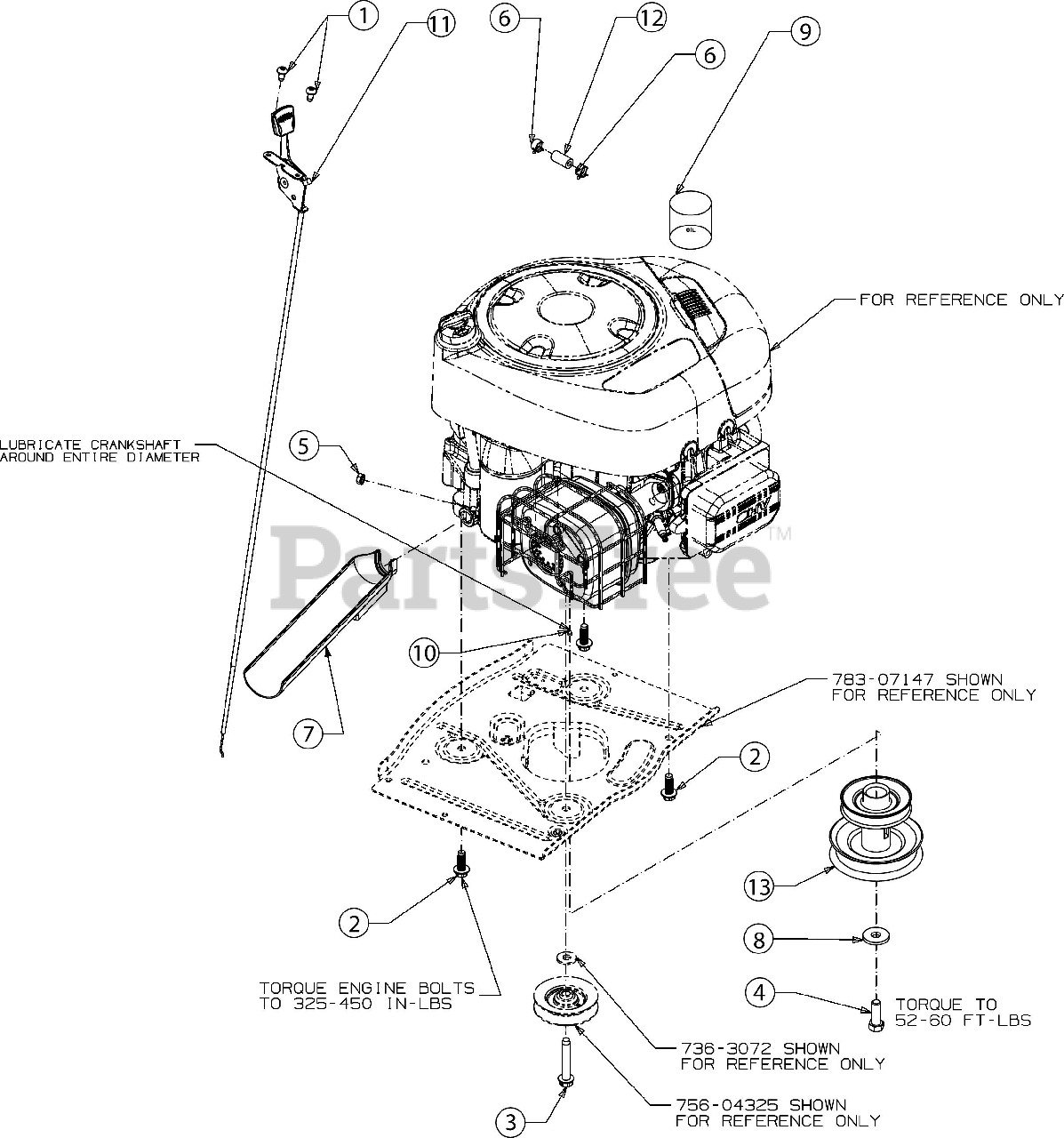

Engine Accessories Parts Diagram

  • Title

1

Troy-Bilt 710-04483

SCREW 1/4-20 x .500

$6.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 710-04683C

SCREW 3/8-16 x 1

$6.49

$

In Stock, only 4 left!

0

3

Troy-Bilt 710-05446

SCREW 3/8-16 x 2.250

$3.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 710-06067

SCREW 7/16-20 x 1.250 GR5

$3.99

$

In Stock, only 1 left!

0

5

Troy-Bilt 712-0271

SEMS NUT 1/4-20

$4.49

$

In Stock, Qty 19

0

6

Troy-Bilt 726-0205

HOSE CLAMP 1/20

$3.99

$

In Stock, Qty 20+

0

7

Troy-Bilt 731-09188

OIL DRAIN

$8.49

$

In Stock, only 2 left!

0

8

Troy-Bilt 736-0322

FLAT WASHER .445 x 1.248 x .170

$9.49

$

In Stock, Qty 8

0

9

OIL 10W30 (NOT SERVICEABLE)

Note: NOT SERVICEABLE

$

$

Not available

10

GREASE (NOT SERVICEABLE)

Note: NOT SERVICEABLE

$

$

Not available

11

Troy-Bilt 946-04829A

THROTTLE CABLE 31" x 1.1
(Superseded to 946-04829B)

$35.99

$

In Stock, only 1 left!

0

12

Troy-Bilt 751-10349-16

FUEL HOSE LOW PERMEATION

$19.99

$

In Stock, Qty 11

0

13

Troy-Bilt 756-05184

ENGINE PULLEY

$70.99

$

Usually ships in 3-6 days

0
