TB 30 R (13AC21JD011) - Troy-Bilt 30" Rear-Engine Riding Mower, Hydro Drive (2017) Fender Parts Diagram

30" Rear-Engine Riding Mower, Hydro Drive

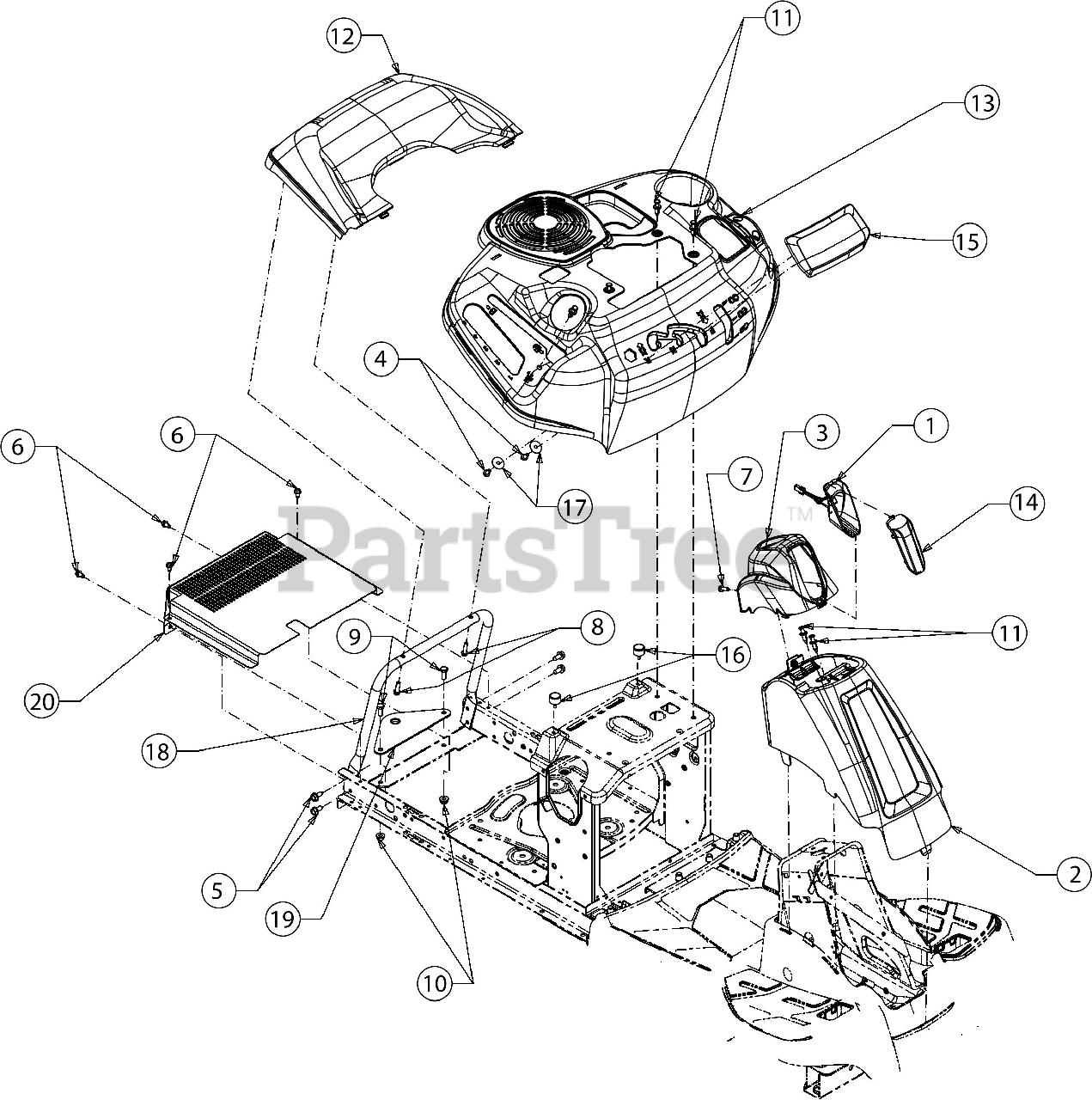

Fender Parts Diagram

  • Title

1

Troy-Bilt 925-05119

HEADLIGHT HARNESS ASSEMBLY

$60.99

$

In Stock, Qty 5

0

2

Troy-Bilt 631-05038

COLUMN COVER ASSEMBLY (MTD RED)

$33.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 712-04092

U NUT

Note: Not Shown

$5.99

$

In Stock, only 2 left!

0

3

Troy-Bilt 631-05369

STEERING COLUMN CAP (MTD RED)

$35.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 710-04187A

HEX SCREW 1/4-15 x .50

$6.99

$

In Stock, Qty 20+

0

5

Troy-Bilt 710-04484

SCREW 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 710-0599

SCREW 1/4-20 X.500

$4.49

$

In Stock, Qty 20+

0

7

Troy-Bilt 710-0924

SCREW 1/4-20X.75

$4.49

$

In Stock, Qty 20+

0

8

Troy-Bilt 710-1241

SCREW 1/4-15 x 1.00

$6.99

$

In Stock, Qty 16

0

9

Troy-Bilt 710-3008

SCREW 5/16-18 x .75 GR5

$4.49

$

In Stock, Qty 20+

0

10

Troy-Bilt 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

11

Troy-Bilt 728-0199

PLASTIC RIVET

$4.49

$

In Stock, Qty 20+

0

12

Troy-Bilt 731-08620A

REAR COVER

$33.99

$

In Stock, only 1 left!

0

13

Troy-Bilt 931-08708A

FENDER
(Superseded to 931-08708B)

$86.99

$

Usually ships in 3-6 days

0

14

Troy-Bilt 731-11484

LED HEADLIGHT LENS

$10.99

$

Usually ships in 3-6 days

0

15

Troy-Bilt 731-11496

FENDER COVER

$13.99

$

Usually ships in 3-6 days

0

16

Troy-Bilt 735-05006

BUMPER .62 DIA x .50

$4.49

$

In Stock, Qty 20+

0

17

Troy-Bilt 736-3092

FLAT WASHER

$3.99

$

In Stock, Qty 9

0

18

Troy-Bilt 749-04932

REAR SUPPORT TUBE

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Troy-Bilt 749-04932-0637

Support Tube, Rear - POWDER BLACK (0637)

$33.99

$

In Stock, Qty 16

0

$27.99

$

Usually ships in 3-6 days

0

19

Troy-Bilt 683-05377

HITCH PLATE

Variations

Troy-Bilt 683-05377-0637

PLATE ASM-HITCH - POWDER BLACK (0637)

$24.99

$

In Stock, only 3 left!

0

$22.99

$

Usually ships in 3-6 days

0

20

Troy-Bilt 783-09147B

HYDRO COVER HEAT SHIELD (B&S)
(Superseded to 783-09147D)

$82.99

$

Usually ships in 3-6 days

0
