TB 30 R (13A726JD023) - Troy-Bilt 30" Rear-Engine Riding Mower (2020) Electrical Parts Diagram
30" Rear-Engine Riding Mower

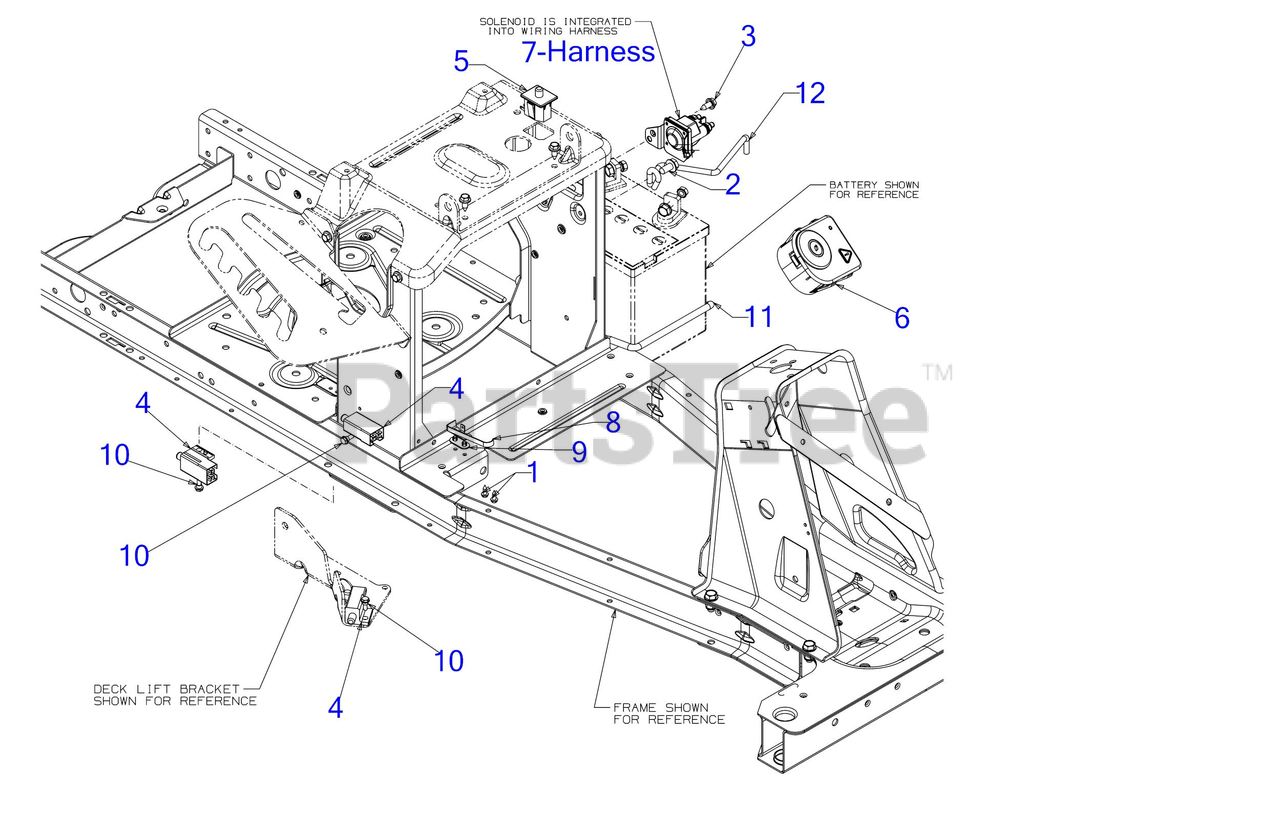

Electrical Parts Diagram
Troy-Bilt 710-0227
HEX SCREW WASHER HD #8-18 x 0.500
$4.49
$
In Stock, Qty 15
Troy-Bilt 710-04484
SCREW 5/16-18 x .750
$3.99
$
In Stock, Qty 20+
Troy-Bilt 710-1652
SCREW 1/4-20X.625
$4.49
$
In Stock, Qty 20+
Troy-Bilt 725-04363
INTERLOCK SWITCH (NO/NC)
$15.99
$
In Stock, Qty 20+
Troy-Bilt 925-05013
SEAT SWITCH
$31.99
$
In Stock, only 2 left!
$116.99
$
In Stock, Qty 20+
$148.99
$
In Stock, only 1 left!
Troy-Bilt 725-1643
SPRING SWITCH
$10.99
$
In Stock, only 1 left!
Troy-Bilt 926-0320
INSULATOR PLATE
$6.99
$
In Stock, Qty 9
Troy-Bilt 738-04237A
SHOULDER SCREW
$6.49
$
In Stock, Qty 7
Troy-Bilt 747-06131B
BATTERY TRAY ROD
$19.99
$
In Stock, only 1 left!
Troy-Bilt 747-06148
BATTERY HOLD DOWN ROD
$6.49
$
In Stock, only 1 left!
