TB 30 R (13A726JD023) - Troy-Bilt 30" Rear-Engine Riding Mower (2020) Deck Parts Diagram

30" Rear-Engine Riding Mower

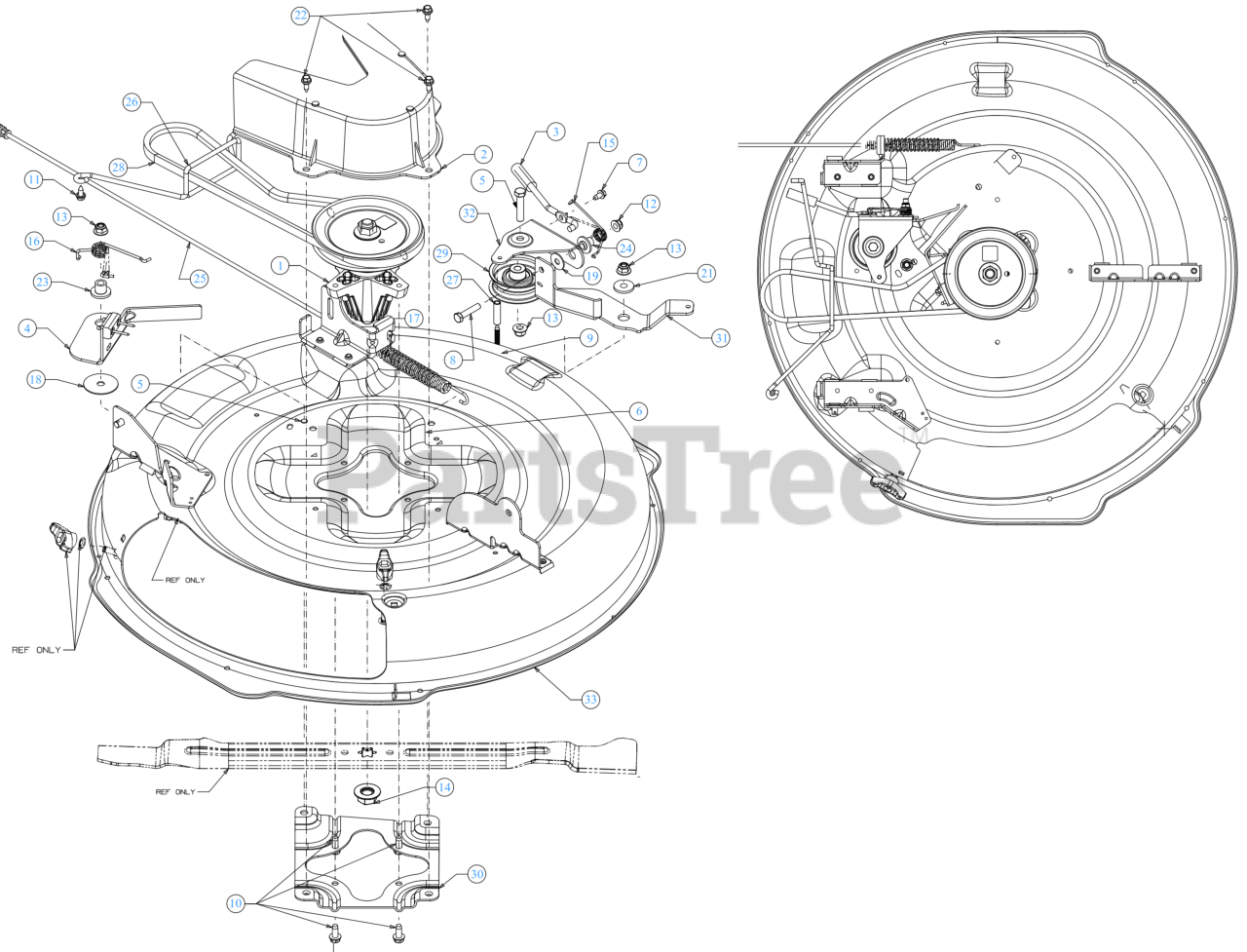

Deck Parts Diagram

  • Title

1

Troy-Bilt 918-04822B

SPINDLE ASSEMBLY

Note: (See Separate Breakdown)

$121.99

$

In Stock, only 1 left!

0

1

Troy-Bilt 490-130-C002

Cub Cadet SPINDLE ASSEMBLY

Note: Retail Packaged Part

$125.99

$

In Stock, only 1 left!

0

2

Troy-Bilt 631-05024

DECK BELT COVER ASSEMBLY

$28.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 647-05028

IDLER GUIDE ROD ASSEMBLY

$19.99

$

In Stock, only 3 left!

0

4

Troy-Bilt 983-05034

BRAKE PTO BRACKET ASSEMBLY

$16.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 761-04017

SPINDLE BRAKE PAD

Note: (Not Shown)

$15.99

$

In Stock, Qty 16

0

4

Troy-Bilt 928-0173

POP RIVET

Note: (Not Shown)

$4.49

$

In Stock, only 4 left!

0

5

Troy-Bilt 710-0347

HEX SCREW 3/8-16 x 1.75 GR5

$5.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 710-0514

SCREW 3/8-16 x 1 GR5

$4.49

$

In Stock, Qty 20+

0

7

Troy-Bilt 710-0599

SCREW 1/4-20 X.500

$4.49

$

In Stock, Qty 20+

0

8

Troy-Bilt 710-0805A

SCREW 5/16-18 x 1.5 LG

$4.49

$

In Stock, only 3 left!

0

9

Troy-Bilt 710-1026

SCREW 1/4-20 x 1.750

$6.99

$

In Stock, Qty 13

0

10

Troy-Bilt 710-06322

SCREW 5/16-18 x .875

$5.49

$

In Stock, Qty 5

0

11

Troy-Bilt 710-1652

SCREW 1/4-20X.625

$4.49

$

In Stock, Qty 20+

0

12

Troy-Bilt 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

13

Troy-Bilt 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

14

Troy-Bilt 712-0417A

HEX NUT

$6.99

$

In Stock, Qty 20+

0

15

Troy-Bilt 732-05045

TORSION SPRING PTO

$4.49

$

In Stock, Qty 20+

0

16

Troy-Bilt 732-05046

TORSION SPRING BRAKE

$4.49

$

In Stock, only 2 left!

0

17

Troy-Bilt 732-0583

SPRING

$12.99

$

In Stock, only 1 left!

0

18

Troy-Bilt 736-3040

HUB CAP WASHER .406 x 1.92 x .060

$6.49

$

In Stock, Qty 8

0

19

Troy-Bilt 736-3078

FLAT WASHER 344X1.00

$4.49

$

In Stock, only 4 left!

0

21

Troy-Bilt 938-0347

SHOULDER SPACER

$10.99

$

Usually ships in 3-6 days

0

22

Troy-Bilt 738-04184A

SHOULDER SCREW

$6.99

$

In Stock, Qty 15

0

23

Troy-Bilt 738-05021

DOUBLE SHOULDER SPACER

$4.49

$

In Stock, only 1 left!

0

24

Troy-Bilt 738-05022

DOUBLE SHOULDER SPACER

$4.49

$

In Stock, only 2 left!

0

25

Troy-Bilt 946-04802A

PTO CABLE

$38.99

$

In Stock, only 1 left!

0

26

Troy-Bilt 747-06126A

DECK BELT KEEPER

$17.99

$

In Stock, only 2 left!

0

27

Troy-Bilt 750-04456

SPACER:.260 x .372 x 1.420

$7.49

$

In Stock, only 4 left!

0

28

Troy-Bilt 954-05001

V-BELT A SEC 43.5

$45.99

$

In Stock, Qty 20+

0

28

Troy-Bilt 490-501-C065

Cub Cadet DECK BELT

Note: Retail Packaged Part

$44.99

$

In Stock, only 1 left!

0

28

Troy-Bilt 490-501-M065

Genuine Factory Parts DECK BELT
(Superseded to 490-501-Y065)

Note: Retail Packaged Part

$44.99

$

In Stock, only 2 left!

0

29

Troy-Bilt 756-04224

FLAT IDLER PULLEY 2.75 OD

$26.99

$

In Stock, Qty 20+

0

30

Troy-Bilt 783-08047A

SPINDLE SUPPORT BRACKET

Variations

Troy-Bilt 783-08047A-0637

Spindle Support Bracket - POWDER BLACK (0637)

$16.99

$

Usually ships in 3-6 days

0

$16.99

$

Usually ships in 3-6 days

0

31

Troy-Bilt 783-08128

IDLER BRACKET FLOATING LOWER

$16.99

$

In Stock, only 2 left!

0

32

Troy-Bilt 783-08226A

FLOATING IDLER BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Troy-Bilt 783-08226A-0637

Idler Float Bracket - POWDER BLACK (0637)

$12.99

$

In Stock, only 4 left!

0

$10.99

$

Usually ships in 3-6 days

0

33

Troy-Bilt 983-05040D

30" DECK SHELL W/O NOZZLE
(Superseded to 983-05040E)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Troy-Bilt 983-05040D-0637

Mower Deck Shell, 30" - POWDER BLACK (0637)

$270.99

$

In Stock, only 1 left!

0

$270.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-07004

DECK FRONT BRACKET

Note: (Not Shown)

$12.99

$

Usually ships in 3-6 days

0
