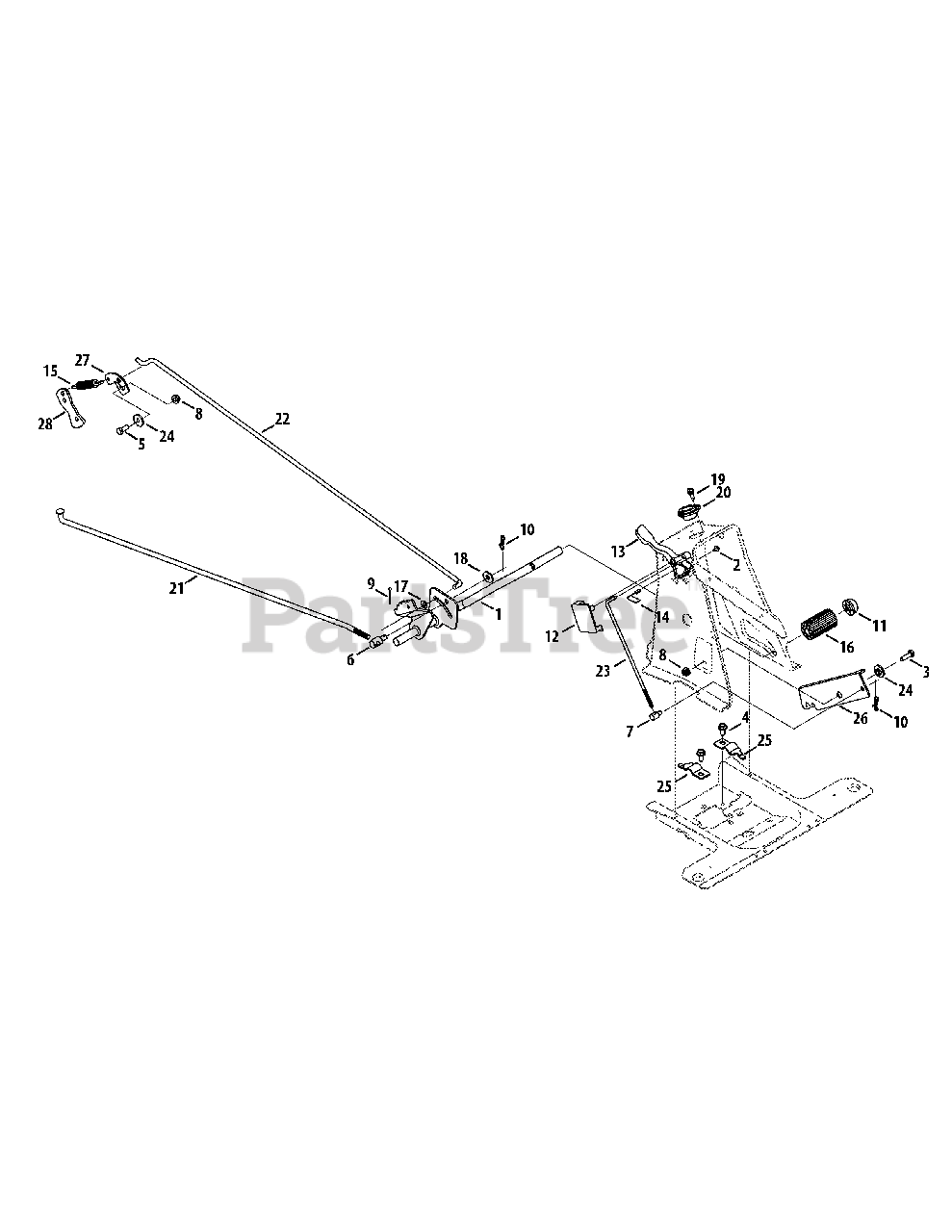

  • Title
1

Troy-Bilt 683-04699-0637

Brake Pedal Assembly

$

$

Not available

2

Troy-Bilt 910-0224

Screw, #10-16 X 0.500

$3.99

$

In Stock, Qty 20+

0

3

Troy-Bilt 710-0376

Hex Head Scerw, 5/16-18 X 1.00

$3.99

$

In Stock, Qty 20+

0

4

Troy-Bilt 710-04484

Tap Screw, 5/16-18 X .750

$3.99

$

In Stock, Qty 20+

0

5

Troy-Bilt 710-3008

Hex Head Screw, 5/16-18 X .75

$4.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 911-04075A

Ferrule 3/8-24 X .375 Dia.

$11.99

$

In Stock, only 3 left!

0

7

Troy-Bilt 711-0736

Adjustable Ferrule, 1/4-20 X 1.00

$13.99

$

In Stock, only 2 left!

0

8

Troy-Bilt 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

9

Troy-Bilt 914-0111

Cotter Pin, 3/32X1.0
(Superseded to 714-0111)

$4.99

$

In Stock, Qty 13

0

10

Troy-Bilt 714-04040

Bow-Tie Cotter Pin, 72

$1.49

$

In Stock, Qty 20+

0

11

Troy-Bilt 726-0214

Push Cap, 5/8

$10.99

$

In Stock, only 4 left!

0

12

Troy-Bilt 731-08656

Speed Control Cover
(Superseded to 731-08656B)

$4.49

$

In Stock, Qty 12

0

13

Troy-Bilt 731-08743

Speed Lever, 6-SPEED
(Superseded to 731-08743B)

$7.49

$

In Stock, Qty 20+

0

14

Troy-Bilt 732-04937

Shift Spring

$3.99

$

In Stock, only 1 left!

0

15

Troy-Bilt 732-0716D

Extension Spring, .59 OD X 4.00 LG

$13.99

$

In Stock, only 1 left!

0

16

Troy-Bilt 735-04279

Foot Pad, 2.5" LG.

$8.99

$

Usually ships in 3-6 days

0

17

Troy-Bilt 936-0264

Flat Washer, .330x.630x.064

$6.99

$

In Stock, only 3 left!

0

18

Troy-Bilt 736-3072

Flat Washer, .380X.930X.110

$4.49

$

In Stock, Qty 20+

0

19

Troy-Bilt 738-04184A

Shoulder Screw, .368 X.113, 1/4-20

$6.99

$

In Stock, Qty 11

0

20

Troy-Bilt 741-0356A

Steering Col. Bearing, .880 ID X 1.36

$7.49

$

In Stock, only 3 left!

0

21

Troy-Bilt 747-05506

Variable Speed Control Rod

$22.99

$

Usually ships in 3-6 days

0

22

$

$

Not available

23

Troy-Bilt 747-05616

Speed Selector Control Rod

$

$

Not available

24

Troy-Bilt 748-0234

Shoulder Spacer

$4.49

$

In Stock, Qty 20+

0

25

Troy-Bilt 783-05940

Pedal Strap Support Bracket, 5/8

$7.49

$

Usually ships in 3-6 days

0

26

Troy-Bilt 783-07050-0637

Speed Latch Bracket
(Superseded to 753-08452A)

$22.99

$

Usually ships in 3-6 days

0

27

Troy-Bilt 783-07287

Brake Cam Bracket
(Superseded to 783-07287A)

$2.99

$

Usually ships in 3-6 days

0

28

Troy-Bilt 717-0772B

Brake lever Bracket

$12.99

$

Usually ships in 3-6 days

0
