TB 30 E XP (33AA27JDB66) - Troy-Bilt 30" Rear-Engine Riding Mower, Electric (2023) Seat Parts Diagram
30" Rear-Engine Riding Mower, Electric

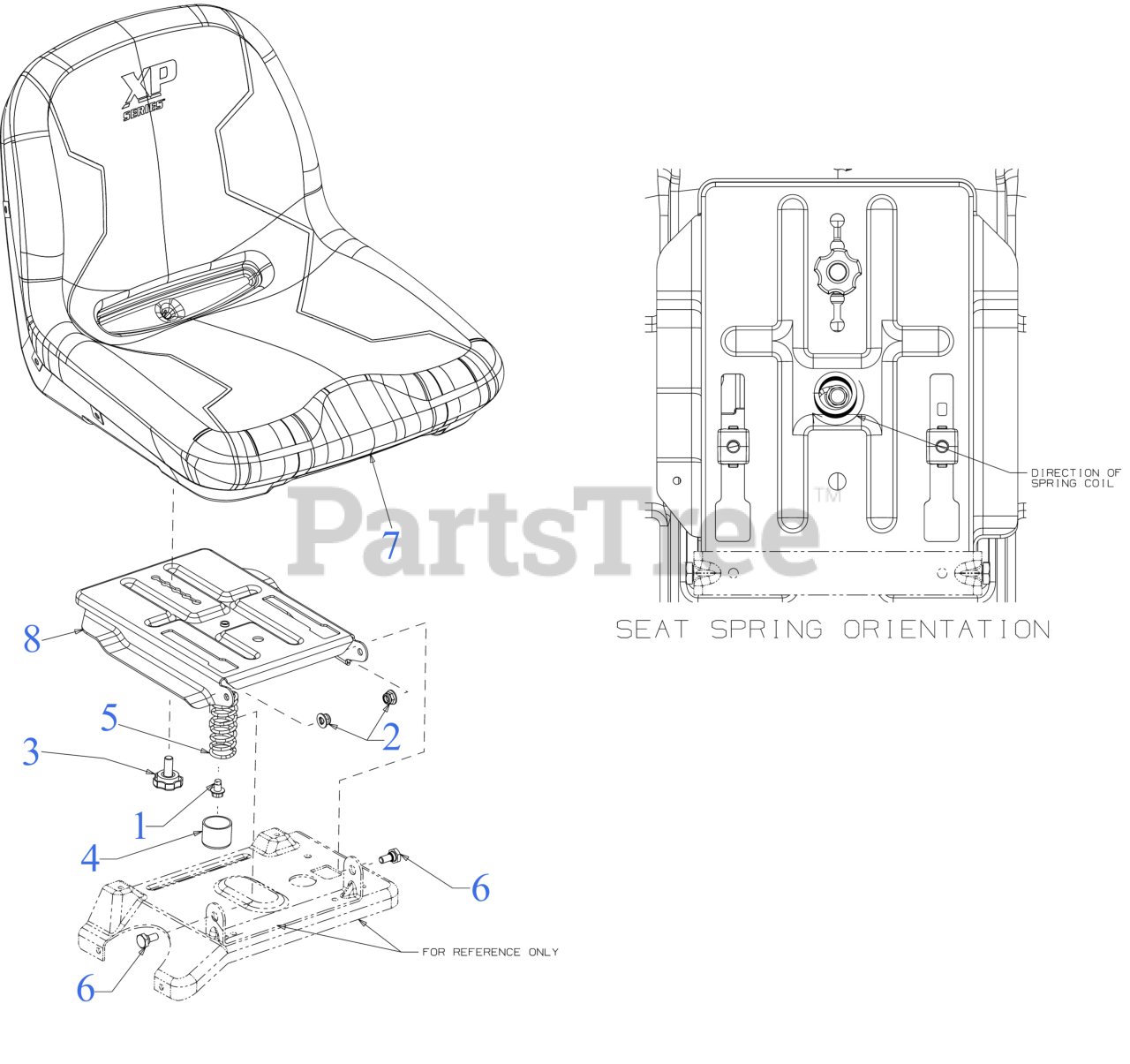

Seat Parts Diagram
Troy-Bilt 710-0607
SCREW 5/16-18 x .500
$6.99
$
In Stock, Qty 14
Troy-Bilt 712-04063
FLANGE LOCK NUT 5/16-18
$3.99
$
In Stock, Qty 20+
Troy-Bilt 720-04009A
SEAT ADJUSTMENT KNOB
$16.99
$
In Stock, only 2 left!
Troy-Bilt 720-05005
SEAT SPRING CAP
$3.49
$
Usually ships in 3-6 days
Troy-Bilt 732-04905
SEAT SPRING
$3.99
$
In Stock, only 3 left!
Troy-Bilt 738-0140
SHOULDER SCREW .437
$5.99
$
In Stock, Qty 17
Troy-Bilt 757P06230
SEAT (HI/TROY XP/FLAT/EL)
$577.99
$
Usually ships in 3-6 days
Troy-Bilt 783-07213A-0637
MANUAL SEAT ADJUSTMENT BRACKET
$33.99
$
In Stock, only 3 left!
