TB 30 E XP (33AA27JDB66) - Troy-Bilt 30" Rear-Engine Riding Mower, Electric (2023) Electrical Parts Diagram

30" Rear-Engine Riding Mower, Electric

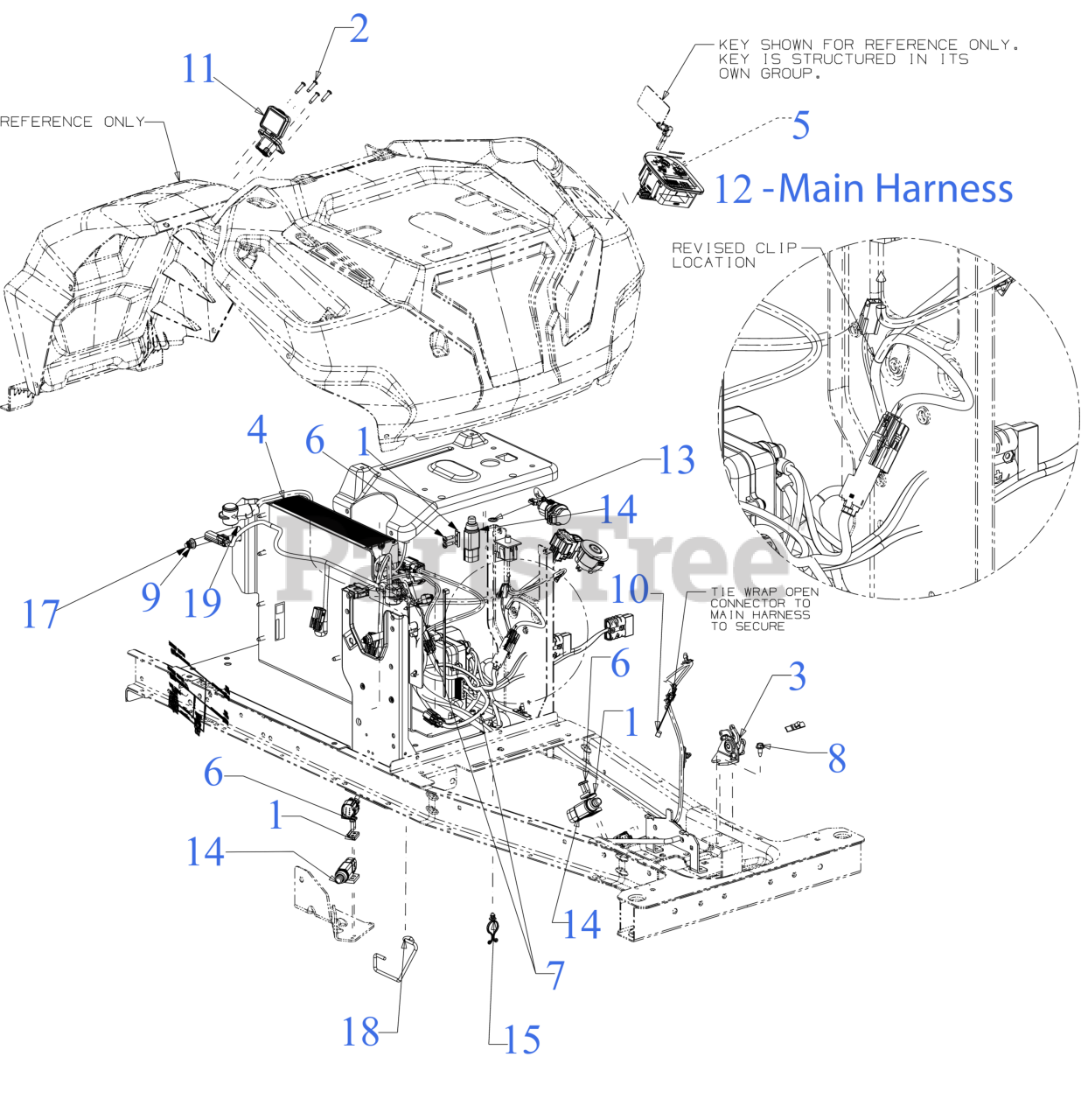

Electrical Parts Diagram

  • Title

1

Troy-Bilt 17962

PLATE-SWITCH

$4.99

$

In Stock, only 3 left!

0

2

Troy-Bilt 791-181345

SCREW, #8-16X.750 PH

$4.49

$

In Stock, only 4 left!

0

3

Troy-Bilt 625-07290

THROTTLE SENSOR ASSEMLBLY

$138.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 924-04153

ROTARY SENSOR MAGNET

Note: (Not Shown)

$10.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 729-0359

HARNESS CLIP

Note: (Not Shown)

$3.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt NSCO

Not Serviceable/ Components Only

Note: (See Separate Breakdown)

$

$

Currently unavailable

5

Troy-Bilt 625P09171

SWITCH (VCM/UL/G2/NO HL)

Note: 10/1/2023 & Before

$729.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 625-09181

SW:ASM:SVCM:ERIDER:NO HL

Note: 10/1/2023 & After

$

$

Currently unavailable

6

Troy-Bilt 791-182195

SCREW #10-24X11/16 T-25

$7.49

$

In Stock, only 1 left!

0

7

Troy-Bilt 710-06133

SCREW M6-1 x .625

$3.99

$

In Stock, Qty 13

0

8

Troy-Bilt 710-1652

SCREW 1/4-20X.625

$4.49

$

In Stock, Qty 20+

0

9

Troy-Bilt 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 725-0157

7" CABLE TIE

$3.99

$

In Stock, only 2 left!

0

11

Troy-Bilt 725P17073A

CHARGER PORT HARNESS (8-PIN)

$

$

Not available

12

Troy-Bilt 725P18120

MAIN HARNESS (VCM/SPDM)

$474.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt 929-05136

SEALED PLUNGER SWITCH

$43.99

$

In Stock, only 1 left!

0

13

Troy-Bilt 726-0201

PUSH NUT

$6.99

$

Usually ships in 3-6 days

0

14

Troy-Bilt 929-05136

SEALED PLUNGER SWITCH

$43.99

$

In Stock, only 1 left!

0

15

Troy-Bilt 729-07541

TWIST LOCK CLIP

$3.49

$

Usually ships in 3-6 days

0

17

Troy-Bilt 747-11691A

BATTERY ROD 5/16-18

$39.99

$

Usually ships in 3-6 days

0

18

Troy-Bilt 747-11715

DECK CABLE SUPPORT ROD

$6.49

$

Usually ships in 3-6 days

0

19

Troy-Bilt 750-10977

SPACER .322 x .438 x 3.855

$24.99

$

Usually ships in 3-6 days

0
