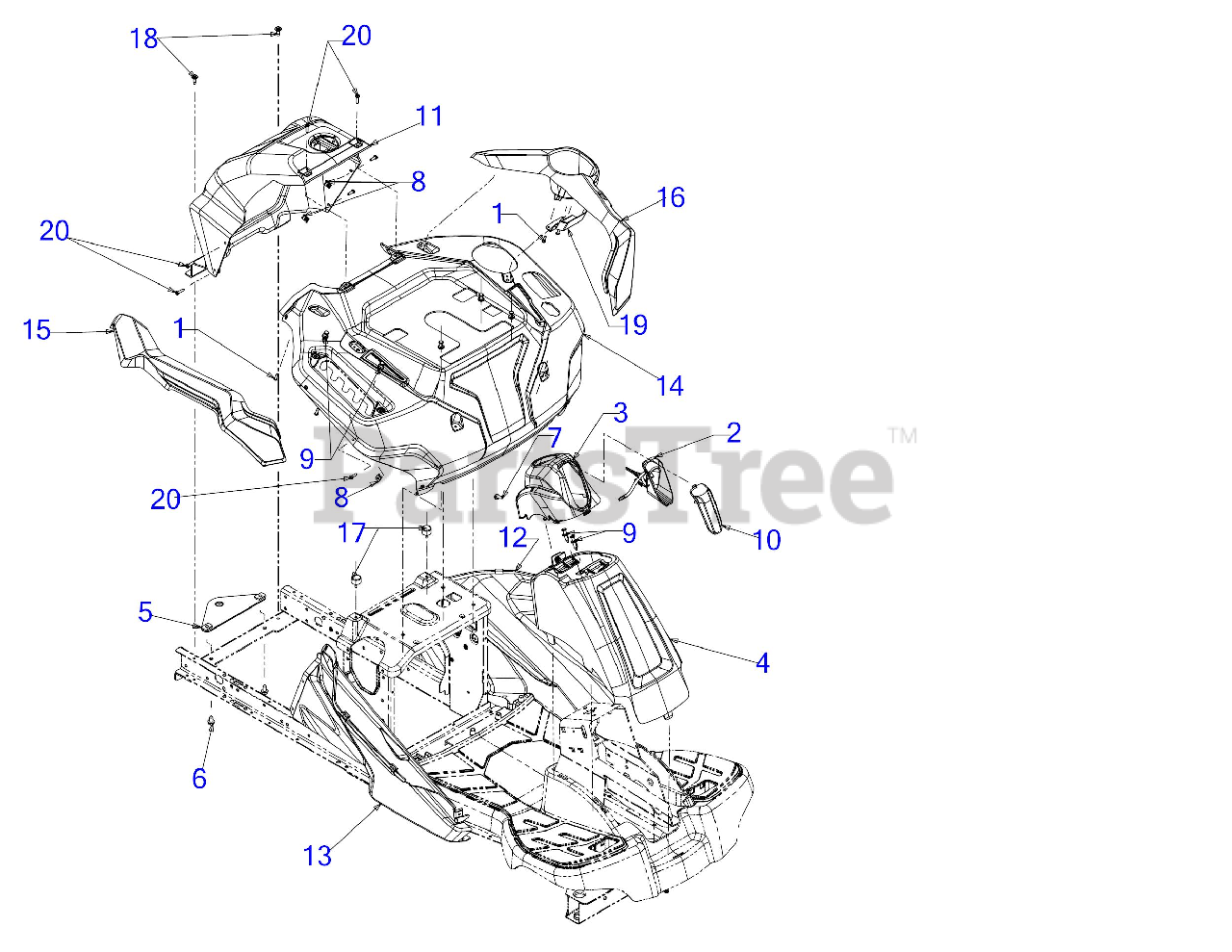

TB 30 E (131Z27JD711) - Troy-Bilt 30" Rear-Engine Riding Mower, Electric (2018) Fender Parts Diagram

30" Rear-Engine Riding Mower, Electric

Fender Parts Diagram

  • Title

1

Troy-Bilt 791-181345

SCREW, #8-16X.750 PH TORX COMBO

$4.49

$

In Stock, Qty 20+

0

2

Troy-Bilt 925-05119

HEADLIGHT HARNESS ASSEMBLY

$60.99

$

In Stock, only 4 left!

0

3

Troy-Bilt 631-05648

COLUMN CAP

$21.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 631-05649

COLUMN COVER

$26.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 712-04092

U NUT

$5.99

$

In Stock, only 2 left!

0

5

Troy-Bilt 683-05377

HITCH PLATE ASSEMBLY

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Troy-Bilt 683-05377-0637

PLATE ASM-HITCH - POWDER BLACK (0637)

$24.99

$

In Stock, only 3 left!

0

$22.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 710-0604A

SCREW 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

7

Troy-Bilt 710-0924

SCREW 1/4-20X.75

$4.49

$

In Stock, Qty 20+

0

8

Troy-Bilt 791-182366

U-TYPE NUT

$5.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 728-0199

PLASTIC RIVET

$4.49

$

In Stock, Qty 20+

0

10

Troy-Bilt 731-11484

LED HEADLIGHT LENS

$10.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 731-13381

REAR BODY COVER

$362.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt 731-13383

BODY PANEL (LH)
(Superseded to 731-13383A)

$202.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt 731-13384

BODY PANEL (RH)
(Superseded to 731-13384A)

$202.99

$

Usually ships in 3-6 days

0

14

Troy-Bilt 731-13409

FENDER

$388.99

$

Usually ships in 3-6 days

0

15

Troy-Bilt 731-13410

FENDER TRIM (RH)

$19.99

$

Usually ships in 3-6 days

0

16

Troy-Bilt 731-13411

FENDER TRIM (LH)

$22.99

$

Usually ships in 3-6 days

0

17

Troy-Bilt 735-05006

BUMPER .62 DIA x .50

$4.49

$

In Stock, Qty 20+

0

18

Troy-Bilt 738-05090

SHOULDER SCREW M6-1 .368 X.115

$3.49

$

In Stock, Qty 20+

0

20

Troy-Bilt 791-181930

SCREW 10-6 x .75

$6.99

$

Usually ships in 3-6 days

0
