TB 30 E (131Z27JD711) - Troy-Bilt 30" Rear-Engine Riding Mower, Electric (2018) Battery Parts Diagram

30" Rear-Engine Riding Mower, Electric

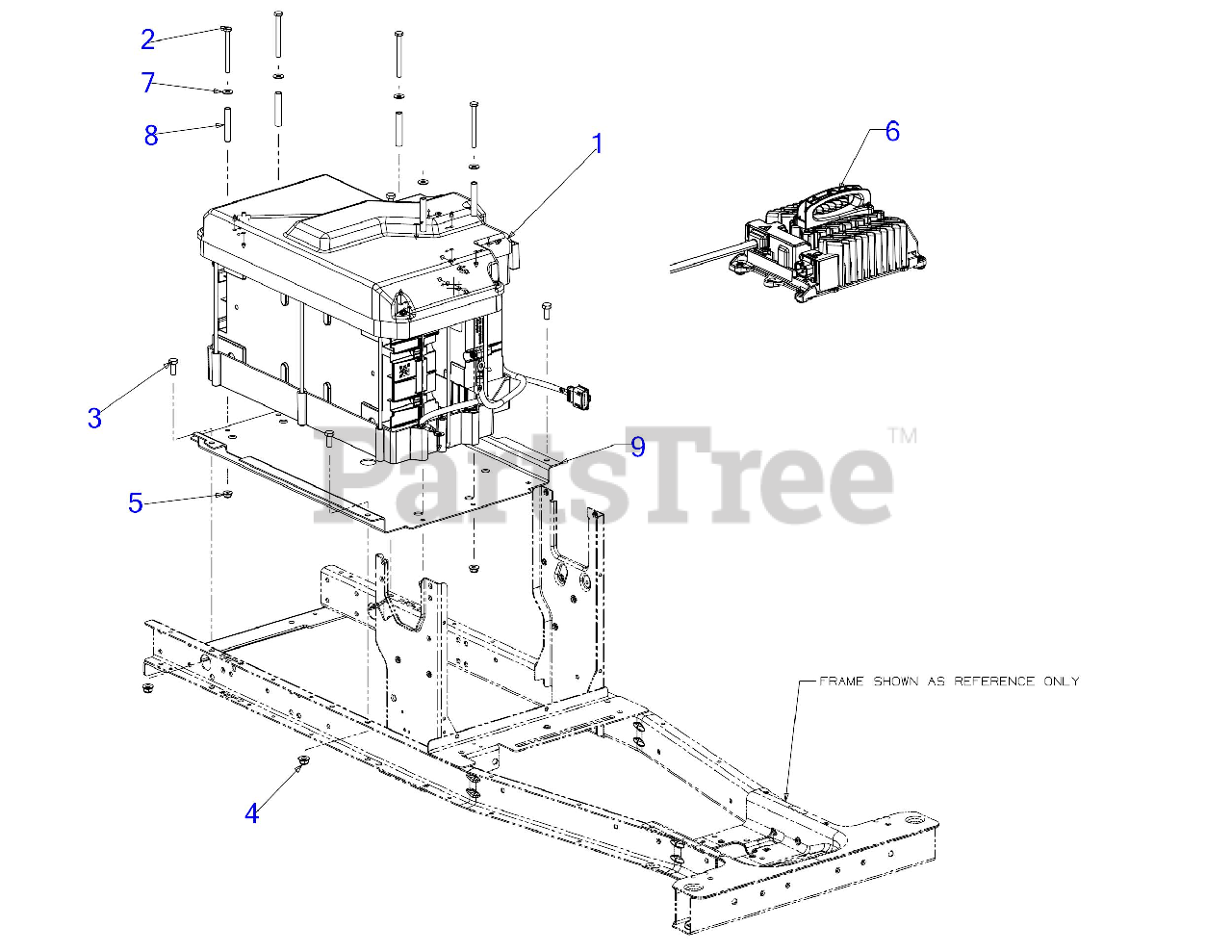

Battery Parts Diagram

  • Title

1

BATTERY

Note: (Contact Local Dealer)

$

$

Not available

2

Troy-Bilt 710-0564

SCREW 1/4-20 x 2.75 GR5

$6.99

$

In Stock, only 3 left!

0

3

Troy-Bilt 710-3008

SCREW 5/16-18 x .75 GR5

$4.49

$

In Stock, Qty 20+

0

4

Troy-Bilt 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

5

Troy-Bilt 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 725-07253

CHARGER 48V 650W
(Superseded to 725-07253A)

$669.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 736-04446

FLAT WASHER

$4.49

$

In Stock, Qty 18

0

8

Troy-Bilt 750-06796

SPACER .259 X .375 X 2.120

$5.49

$

Usually ships in 3-6 days

0

9

Troy-Bilt 783-09673

MOUNT BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Troy-Bilt 783-09673-0637

MOUNT BRACKET (POWDER BLACK) - POWDER BLACK (0637)

$68.99

$

Usually ships in 3-6 days

0

$59.99

$

Usually ships in 3-6 days

0
