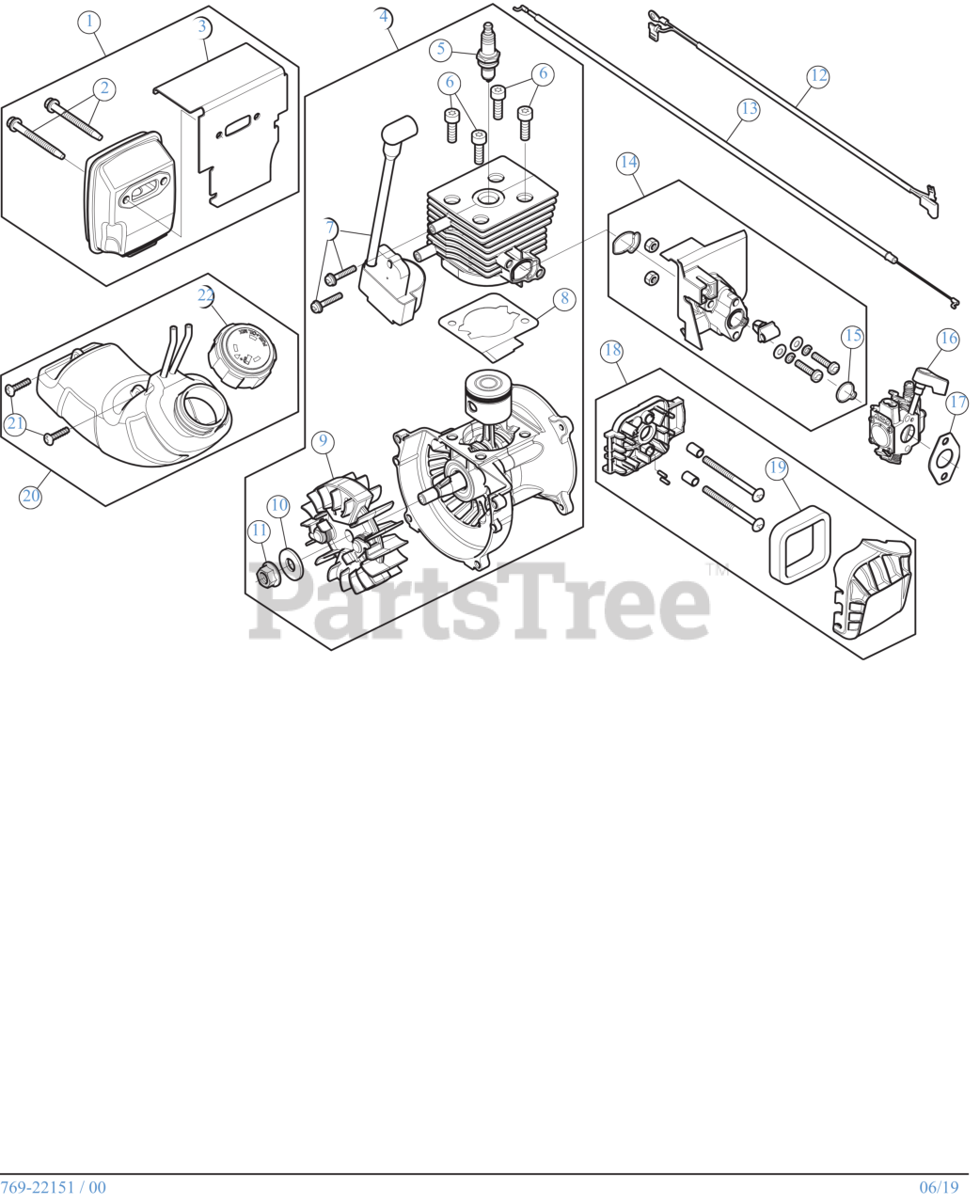

TB 27 VH (41AR27VH766) - Troy-Bilt Blower Vacuum Engine Assembly Parts Diagram

Blower Vacuum

Engine Assembly Parts Diagram

  • Title

1

Troy-Bilt 753-06027

MUFFLER ASSEMBLY 27CC

Note: (Incl. 2 & 3)

$41.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 753-06294

MUFFLER SCREW

$2.99

$

In Stock, only 2 left!

0

3

Troy-Bilt 753-05946

MUFFLER GASKET

$9.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 753-09004

SHORT BLOCK

Note: (Incl. 5 - 11)

$75.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 753-06847

SPARK PLUG

$7.49

$

In Stock, Qty 8

0

6

Troy-Bilt 710-04715

SCREW 1/4 x 20 x .8125

$6.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 753-08516

MODULE ASSEMBLY

$18.99

$

In Stock, Qty 5

0

8

Troy-Bilt 753-06827

GASKET CYL

$3.49

$

In Stock, only 1 left!

0

9

Troy-Bilt 753-06175

FLYWHEEL ASSEMBLY

$19.99

$

In Stock, only 1 left!

0

10

Troy-Bilt 736-04107

WASHER .406X1.0X.095

$4.49

$

In Stock, only 1 left!

0

11

Troy-Bilt 712-04137

NUT 3/8-24

$6.99

$

In Stock, only 1 left!

0

12

Troy-Bilt 753-05949

LEAD WIRE

$5.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt 753-06690

THROTTLE CABLE

$7.99

$

Usually ships in 3-6 days

0

14

Troy-Bilt 753-06189

INTAKE ASSEMBLY

Note: (Incl. 15)

$7.99

$

In Stock, only 2 left!

0

15

Troy-Bilt 753-06185

O-RING

$3.49

$

In Stock, Qty 20+

0

16

Troy-Bilt 753-08517

CARBURETOR ASSEMBLY

Note: (Incl. 17)

$83.99

$

In Stock, Qty 7

0

17

Troy-Bilt 753-06253

GASKET CARB

$3.49

$

In Stock, Qty 20+

0

18

Troy-Bilt 753-08507

AIRCLEANER ASSEMBLY

Note: (Incl. 19)

$8.99

$

In Stock, Qty 6

0

19

Troy-Bilt 791-181757

AIR FILTER

$3.99

$

In Stock, Qty 20+

0

20

Troy-Bilt 753-06720

FUEL TANK ASSEMBLY

Note: (Incl. 21 & 22)

$24.99

$

In Stock, only 2 left!

0

21

Troy-Bilt 710-04194

SCREW 8-16 x 3/4

$4.49

$

In Stock, Qty 20+

0

22

Troy-Bilt 791-182529

ASSEMBLY, FUEL CAP (RED TOP)

$21.99

$

In Stock, only 3 left!

0
