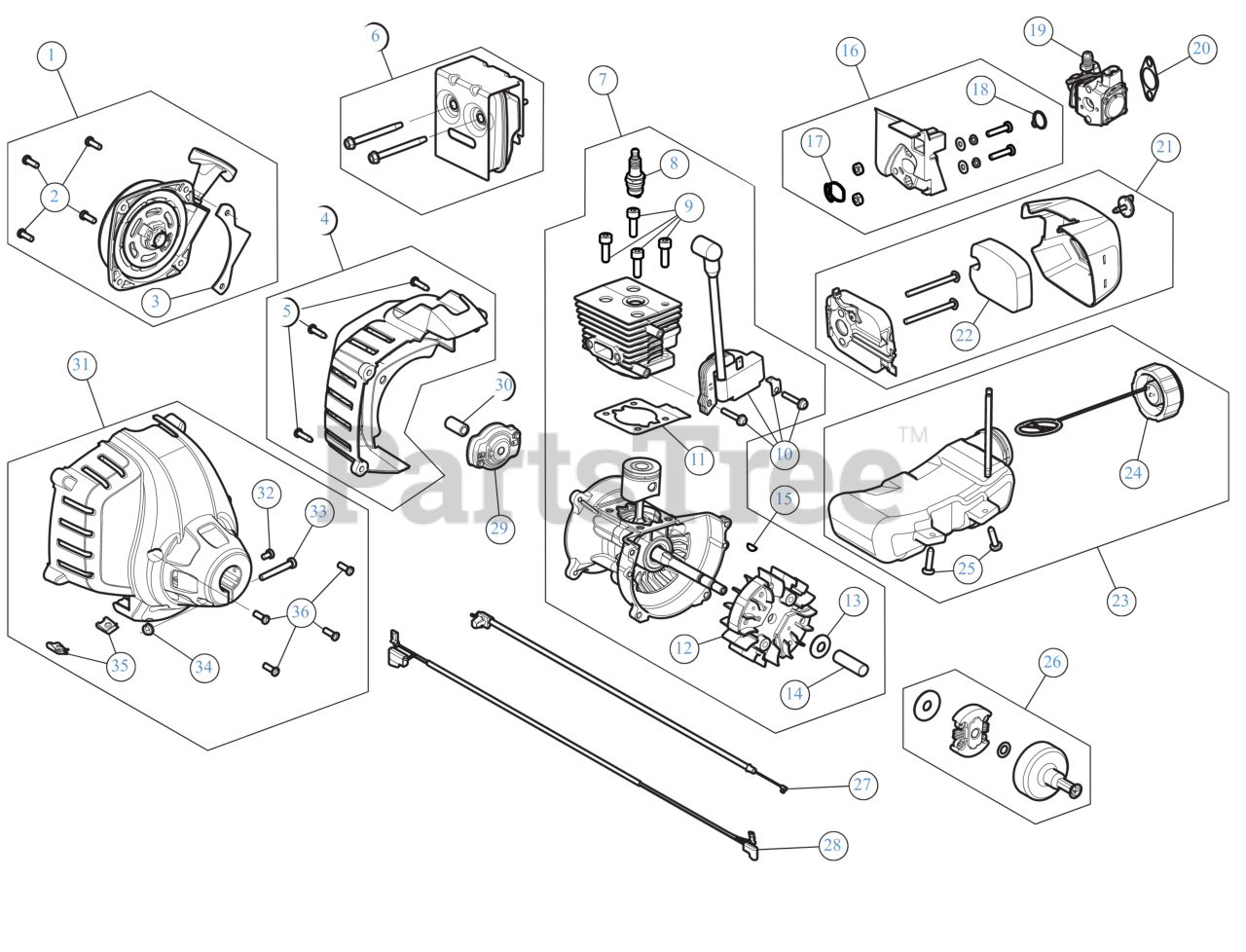

TB 27 S EC (41AD27EC866) - Troy-Bilt String Trimmer Engine Assembly Parts Diagram

String Trimmer

Engine Assembly Parts Diagram

  • Title

1

Troy-Bilt 841-015769S

STARTER ASSEMBLY

Note: (Incl. 2 & 3)

$19.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 791-181862

SCREW:10-32X.562:#8P
(Superseded to 1964)

$4.49

$

In Stock, Qty 15

0

3

Troy-Bilt 753-06244

STARTER GUARD

Note: (Incl. 2)

$3.99

$

In Stock, only 1 left!

0

4

Troy-Bilt 753-06245

REAR ENGINE COVER

Note: (Incl. 5)

$

$

Not available

5

Troy-Bilt 791-181345

SCREW, #8-16X.750 PH

$4.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 753-06418

MUFFLER ASSEMBLY
(Superseded to 753-08745)

$26.99

$

In Stock, only 1 left!

0

7

Troy-Bilt 753-11300

Short Block Assembly

Note: (Incl. 8 - 15)

$82.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 753-06847

SPARK PLUG

$7.49

$

In Stock, Qty 20+

0

9

Troy-Bilt 710-04715

SCREW 1/4 x 20 x .8125

$6.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 753-08357

MODULE W/SLV RFI

$32.99

$

In Stock, only 1 left!

0

11

Troy-Bilt 753-06827

GASKET CYL

$3.49

$

In Stock, only 1 left!

0

12

Troy-Bilt 753-06246

FLYWHEEL ASSEMBLY 27CC

$21.99

$

In Stock, only 1 left!

0

13

Troy-Bilt 753-06247

BELL WASHER

$3.49

$

In Stock, Qty 20+

0

14

Troy-Bilt 753-06248

SPACER

$3.49

$

Usually ships in 3-6 days

0

15

Troy-Bilt 914-04016

WOODRUFF KEY #403-.125 x .375

$4.49

$

In Stock, Qty 11

0

16

Troy-Bilt 753-06189

INTAKE ASSEMBLY

Note: (Incl. 17 & 18)

$7.99

$

In Stock, only 3 left!

0

17

Troy-Bilt 753-06184

O-RING

$3.49

$

In Stock, Qty 20+

0

18

Troy-Bilt 753-06185

O-RING

$3.49

$

In Stock, Qty 20+

0

19

Troy-Bilt 753-06190

CARBURETOR

$35.99

$

In Stock, Qty 20+

0

20

Troy-Bilt 753-06253

GASKET CARB

$3.49

$

In Stock, Qty 20+

0

21

Troy-Bilt 753-10084

AIR CLEANER COVER

Note: (Incl. 22)

$12.99

$

Usually ships in 3-6 days

0

22

Troy-Bilt 753-06954

AIR FILTER

$2.99

$

In Stock, Qty 20+

0

23

Troy-Bilt 753-06250

FUEL TANK ASSEMBLY

Note: (Incl. 24 & 25)

$21.99

$

In Stock, Qty 8

0

24

Troy-Bilt 753-06857

FUEL CAP

$7.99

$

In Stock, only 4 left!

0

25

Troy-Bilt 791-181930

SCREW:10-6 x .75

$6.99

$

In Stock, only 1 left!

0

26

Troy-Bilt 753-05860

SMALL CLUTCH ASSEMBLY W/SMALL DRUM

$25.99

$

In Stock, Qty 9

0

27

Troy-Bilt 946-04824

THROTTLE CABLE

$3.99

$

Usually ships in 3-6 days

0

28

Troy-Bilt 753-08358

WIRE LEAD RFI

$9.49

$

Usually ships in 3-6 days

0

29

Troy-Bilt 753-06091

PAWL ASSEMBLY AC5

$9.49

$

In Stock, only 3 left!

0

30

Troy-Bilt 753-06104

ELECTRIC START ADP

$4.49

$

In Stock, Qty 20+

0

31

Troy-Bilt 753-08250

CLUTCH COVER ASSEMBLY

Note: (Incl. 32 - 36)

$5.49

$

Usually ships in 3-6 days

0

32

Troy-Bilt 791-182519

SCREW, 8-32 x .312 P

$4.99

$

In Stock, only 4 left!

0

33

Troy-Bilt 9689A

SCREW

$11.99

$

In Stock, Qty 16

0

34

Troy-Bilt 712-0161

HEX NUT

$4.49

$

In Stock, Qty 20+

0

35

Troy-Bilt 791-182366

NUT, TINNERMAN U-T

$5.99

$

In Stock, only 1 left!

0

36

Troy-Bilt 791-182195

SCREW #

$7.49

$

In Stock, Qty 20+

0
