TB 27 LS (24BG57M1766) - Troy-Bilt Log Splitter (2013) General Assembly Parts Diagram

Log Splitter

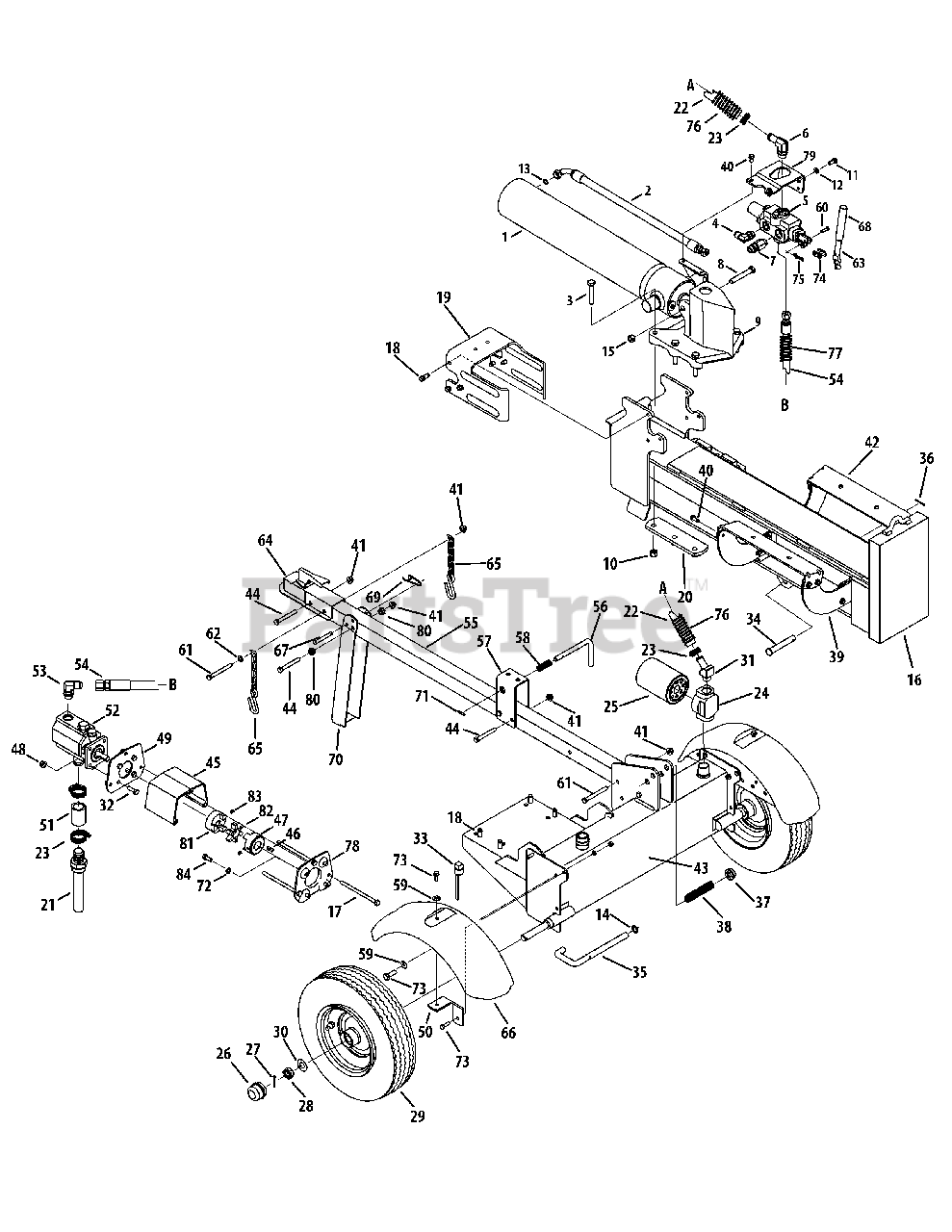

General Assembly Parts Diagram

  • Title

1

Troy-Bilt 918-04713

Hydraulic Cylinder

$817.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 727-04362

Hydraulic Tube

$91.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 710-1018

Hex Cap Screw, 1/2-20 x 2.75

$11.99

$

In Stock, Qty 19

0

4

Troy-Bilt 737-04320

90 Degree Solid Adapter

$20.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 718-04706P

Control Valve

$366.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 737-04307

Return Elbow

$24.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 737-04309

Nipple Pipe, 1/2-14

$20.99

$

In Stock, only 4 left!

0

8

Troy-Bilt 710-1806

Hex Cap Screw, 1/2-13 x 3.25

$10.99

$

In Stock, only 4 left!

0

9

Troy-Bilt 719-04529

Wedge Assembly

$252.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 912-3058

Hex Lock Nut, 1/2-20

$5.99

$

In Stock, Qty 16

0

11

Troy-Bilt 710-0216

Hex Cap Screw, 3/8-16 x .75

$4.49

$

In Stock, Qty 15

0

12

Troy-Bilt 936-0169

Lock Washer, 3/8
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

13

Troy-Bilt 721-04411

O-Ring, .489 ID x .070 Dia.

$3.99

$

Usually ships in 3-6 days

0

14

Troy-Bilt 936-0116

Flat Washer, .635 x.93 x.06

$6.99

$

In Stock, only 1 left!

0

15

Troy-Bilt 712-3022

Hex Lock Nut, 1/2-13

$3.99

$

In Stock, Qty 20+

0

16

Troy-Bilt 681-04112-0637

Beam Assembly
(Superseded to 681-04112A-0637)

$1387.99

$

Usually ships in 3-6 days

0

17

Troy-Bilt 710-0190

Hex Screw, 5/16-18 x 4.00

$7.99

$

Usually ships in 3-6 days

0

18

Troy-Bilt 710-04683A

Self Tapping Screw, 3/8-16 x 1.0
(Superseded to 710-04683C)

$6.49

$

In Stock, Qty 5

0

19

Troy-Bilt 781-04426-0638

Dislodger Bracket

$87.99

$

Usually ships in 3-6 days

0

20

Troy-Bilt 781-0790A-0637

Back Plate

$40.99

$

In Stock, only 2 left!

0

21

Troy-Bilt 737-04308

Inlet Filter

$40.99

$

Usually ships in 3-6 days

0

22

Troy-Bilt 727-0443

Return Hose, 3/4 x 44

$118.99

$

In Stock, only 2 left!

0

23

Troy-Bilt 726-0132

Hose Clamp, 5/8

$15.99

$

Usually ships in 3-6 days

0

24

Troy-Bilt 737-04267

Filter Housing

$57.99

$

In Stock, Qty 5

0

25

Troy-Bilt 723-0405

Oil Filter
(Superseded to 723P0405)

$42.99

$

In Stock, Qty 20+

0

26

Troy-Bilt 734-0873

Hub Cap

$11.99

$

In Stock, only 3 left!

0

27

Troy-Bilt 714-0162

Cotter Pin

$4.99

$

In Stock, Qty 20+

0

28

Troy-Bilt 712-0359

Slotted Nut, 3/4-16

$11.99

$

In Stock, only 1 left!

0

29

Troy-Bilt 634-0186

Complete Wheel Assembly

$363.99

$

Usually ships in 3-6 days

0

29

Troy-Bilt 921-0168

Dust Seal

$9.49

$

In Stock, Qty 18

0

29

Troy-Bilt 941-04089

Roller Bearing
(Superseded to 941-04298)

$16.99

$

In Stock, Qty 19

0

30

Troy-Bilt 936-0351

Flat Washer, .760 x.500
(Superseded to 736-0351)

$4.49

$

In Stock, Qty 20+

0

31

Troy-Bilt 737-04323

Hydraulic Fitting, 1 1/16 Orb x .75

$28.99

$

Usually ships in 3-6 days

0

32

Troy-Bilt 710-0376

Hex Screw, 5/16-18 x 1.00

$3.99

$

In Stock, Qty 20+

0

33

Troy-Bilt 737-0348A

Vented Dipstick

$23.99

$

In Stock, only 1 left!

0

34

Troy-Bilt 711-05169

Clevis Pin

$5.49

$

Usually ships in 3-6 days

0

35

Troy-Bilt 747-04983

Lock Rod

$25.99

$

Usually ships in 3-6 days

0

36

Troy-Bilt 914-0470

Cotter Pin
(Superseded to 714-0470)

$4.49

$

In Stock, Qty 20+

0

37

Troy-Bilt 726-0214

Push Cap

$10.99

$

In Stock, only 4 left!

0

38

Troy-Bilt 732-0583

Compression Spring

$12.99

$

In Stock, Qty 19

0

39

Troy-Bilt 781-04293-0637

Log Tray Bracket

$20.99

$

In Stock, Qty 16

0

40

Troy-Bilt 710-04484

Hex Washer Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

41

Troy-Bilt 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

42

Troy-Bilt 781-04179-0637

Log Tray

$50.99

$

In Stock, Qty 7

0

43

Troy-Bilt 681-04113-0637

Frame Assembly

$597.99

$

Usually ships in 3-6 days

0

44

Troy-Bilt 710-0521

Hex Bolt, 3/8-16 x 3

$5.49

$

In Stock, Qty 11

0

45

Troy-Bilt 719-0278

Coupling Shield

$72.99

$

Usually ships in 3-6 days

0

46

Troy-Bilt 914-0122

Square Key, 3/16" x .75
(Superseded to 714-0122)

$

$

Not available

47

Troy-Bilt 718-04474

Coupling, .750

$26.99

$

Usually ships in 3-6 days

0

48

Troy-Bilt 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

49

Troy-Bilt 781-0097-0637

Rear Coupling Support Bracket

$69.99

$

In Stock, only 3 left!

0

50

Troy-Bilt 781-1024A-0637

Fender Mounting Bracket

$31.99

$

Usually ships in 3-6 days

0

51

Troy-Bilt 727-04356

Hose

$47.99

$

Usually ships in 3-6 days

0

52

Troy-Bilt 918-04127

Gear Pump

$751.99

$

Usually ships in 3-6 days

0

53

Troy-Bilt 737-04320

45 Degree Elbow Fitting

$20.99

$

Usually ships in 3-6 days

0

54

Troy-Bilt 727-04288

High Pressure Hydraulic Hose

$91.99

$

Usually ships in 3-6 days

0

55

Troy-Bilt 781-04424-0638

Tongue Assembly

$59.99

$

Usually ships in 3-6 days

0

56

Troy-Bilt 747-1261

Latch Rod

$39.99

$

Usually ships in 3-6 days

0

57

Troy-Bilt 781-1045-0638

Latch

$59.99

$

Usually ships in 3-6 days

0

58

Troy-Bilt 932-3127

Compression Spring

$4.49

$

In Stock, Qty 20+

0

59

Troy-Bilt 736-0371

Flat Washer

$4.49

$

In Stock, only 3 left!

0

60

Troy-Bilt 711-04585

Clevis Pin

$6.99

$

In Stock, Qty 13

0

61

Troy-Bilt 710-3085

Hex Cap Screw, 3/8-16 x 3.50

$4.49

$

In Stock, Qty 20+

0

62

Troy-Bilt 936-0185

Flat Washer, .375 x.738 x.063
(Superseded to 736-0185)

$3.99

$

In Stock, Qty 20+

0

63

Troy-Bilt 747-04539A

Hydraulic Valve Control

$45.99

$

In Stock, only 1 left!

0

64

Troy-Bilt 681-04030

Hitch Coupling Assembly

$72.99

$

Usually ships in 3-6 days

0

65

Troy-Bilt 713-0433A

Chain

$44.99

$

In Stock, only 1 left!

0

66

Troy-Bilt 731-2496A

Fender

$82.99

$

Usually ships in 3-6 days

0

67

Troy-Bilt 911-0813

Clevis Pin

$6.99

$

Usually ships in 3-6 days

0

68

Troy-Bilt 720-04088

Grip

$10.99

$

Usually ships in 3-6 days

0

69

Troy-Bilt 732-0194

Spring Pin

$4.99

$

In Stock, Qty 12

0

70

Troy-Bilt 781-04430-0638

Jack Stand

$45.99

$

Usually ships in 3-6 days

0

71

Troy-Bilt 715-0120

Spiral Pin

$10.99

$

In Stock, only 1 left!

0

72

Troy-Bilt 936-0119

Lock Washer, 5/16

$4.99

$

In Stock, Qty 20+

0

73

Troy-Bilt 710-0602

Self-Tapping Screw, 5/16-18 x 1.00

$4.49

$

In Stock, Qty 20+

0

74

Troy-Bilt 913-04036

Valve Handle Link

$21.99

$

In Stock, only 2 left!

0

75

Troy-Bilt 714-04040

Cotter Pin, Bow Tie

$1.49

$

In Stock, Qty 20+

0

76

Troy-Bilt 781-0538A

Hose Guard, 44"

$35.99

$

Usually ships in 3-6 days

0

77

Troy-Bilt 781-0526A

Hose Guard, 48"

$53.99

$

Usually ships in 3-6 days

0

78

Troy-Bilt 781-0098A-0637

Front Coupling Support Bracket

$43.99

$

Usually ships in 3-6 days

0

79

Troy-Bilt 781-04418-0637

Outer Valve Bracket

$17.99

$

Usually ships in 3-6 days

0

80

Troy-Bilt 941-0475

Plastic Bushing, .380 ID

$4.49

$

In Stock, Qty 20+

0

81

Troy-Bilt 718-04392

Coupling, .500

$14.99

$

In Stock, Qty 20+

0

82

Troy-Bilt 735-04103

Spider Bushing

$14.99

$

In Stock, Qty 20+

0

83

Troy-Bilt 710-1842A

Set Screws

$5.49

$

In Stock, only 1 left!

0

84

Troy-Bilt 710-0157

Hex Cap Screw, 5/16-24 x .75

$4.49

$

In Stock, Qty 18

0
