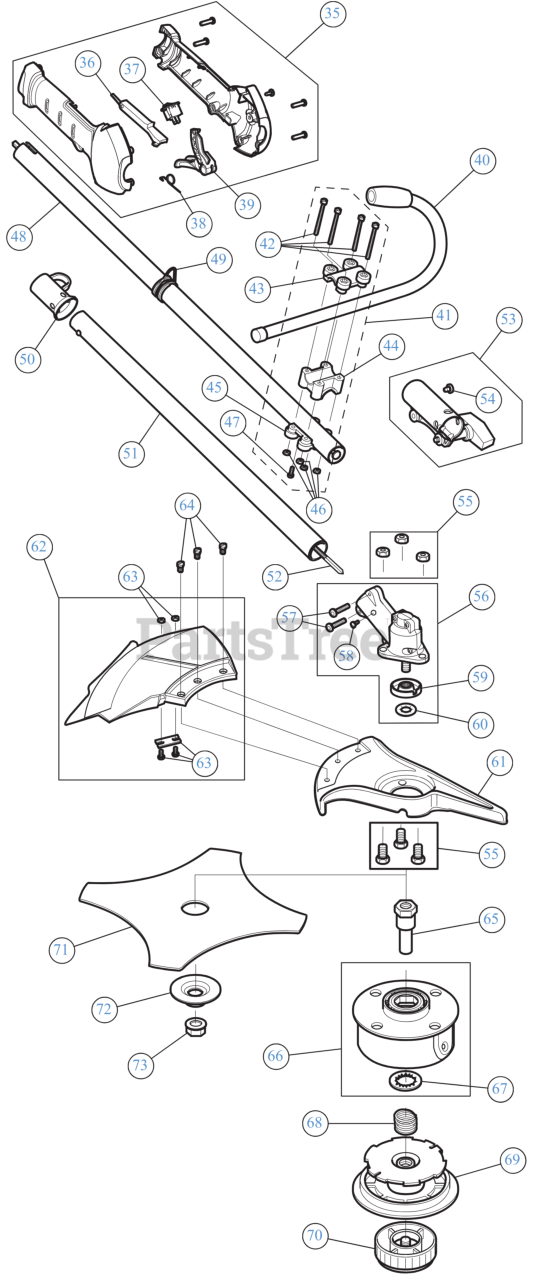

TB 27 BC (41BD27BA766) - Troy-Bilt String Trimmer General Assembly Parts Diagram

String Trimmer

General Assembly Parts Diagram

  • Title
35

Troy-Bilt 753-08344

THROTTLE GRIP ASSEMBLY

Note: (Incl. 36 - 39)

$30.99

$

Usually ships in 3-6 days

0

36

Troy-Bilt 731-08433C-10

LEVER LOCK OUT

$3.49

$

In Stock, Qty 14

0

37

Troy-Bilt 791-182405

SW, MOMENTARY ON/O

$10.99

$

In Stock, Qty 12

0

38

Troy-Bilt 753-05007

SPRING TRIG

$5.49

$

In Stock, only 2 left!

0

39

Troy-Bilt 731-04970B-10

THROTTLE TRIGGER

$9.49

$

In Stock, Qty 20+

0

40

MTD 791-181099

HANDLE ASSEMBLY-JAY

$

$

Not available

41

Troy-Bilt 791-683295

HANDLE BRACKET ASSEMBLY

Note: (Incl. 42 - 47)

$45.99

$

Usually ships in 3-6 days

0

42

Troy-Bilt 791-181811

CLAMP SCREW

$4.99

$

Usually ships in 3-6 days

0

43

Troy-Bilt 791-181812

HANDLE UPPER CLAMP

$8.99

$

Usually ships in 3-6 days

0

44

Troy-Bilt 791-181813

HANDLE MIDDLE CLAMP

$12.99

$

Usually ships in 3-6 days

0

45

Troy-Bilt 791-181814

HANDLE LOWER CLAMP

$8.99

$

Usually ships in 3-6 days

0

46

$4.49

$

Usually ships in 3-6 days

0

47

Troy-Bilt 791-182519

SCREW, 8-32 x .312 P

$4.99

$

In Stock, only 4 left!

0

48

Troy-Bilt 753-06880

BOOM ASSEMBLY UPR

$19.99

$

In Stock, only 1 left!

0

49

Troy-Bilt 791-610327

CLAMP-SHOULDER STR

$32.99

$

Usually ships in 3-6 days

0

$2.99

$

In Stock, only 3 left!

0

51

Troy-Bilt 791-160226

ASSEMBLY, LOWER DRIVE S

$70.99

$

In Stock, only 2 left!

0

52

Troy-Bilt 753-05267

LOWERIBLE DRIVE SHAFT

$42.99

$

In Stock, only 1 left!

0

53

Troy-Bilt 753-1190

SPLIT BOOM COUPLER KIT

Note: (Incl. 54)

$23.99

$

In Stock, only 1 left!

0

54

Troy-Bilt 791-182057

SCREW, 10-32X.250 TA

$4.49

$

In Stock, Qty 6

0

55

Troy-Bilt 791-182200

SCREW SET-GUARD MT

$6.99

$

In Stock, only 2 left!

0

56

Troy-Bilt 753-07006

GEARBOX ASSEMBLY
(Superseded to 753-11244)

Note: (Incl. 57 - 60)

$22.99

$

Usually ships in 3-6 days

0

$7.49

$

In Stock, Qty 20+

0

58

Troy-Bilt 791-182519

SCREW, 8-32 x .312 P

$4.99

$

In Stock, only 4 left!

0

59

Troy-Bilt 791-182196

SPACER-GEARBOX

$22.99

$

In Stock, only 2 left!

0

60

Troy-Bilt 753-04348

PALNUT:3/8" DIAM

$6.99

$

Usually ships in 3-6 days

0

61

Troy-Bilt 791-147492

SHIELD-BLADE CAST

$126.99

$

Usually ships in 3-6 days

0

62

Troy-Bilt 753-1191

SHIELD ASSEMBLY WITH BLADE

Note: (Incl. 63)

$64.99

$

In Stock, only 1 left!

0

63

Troy-Bilt 791-682061

BLADE ASSEMBLY

$14.99

$

In Stock, only 1 left!

0

64

Troy-Bilt 791-683304

SCREW-GUARD MTG PK

$11.99

$

In Stock, only 1 left!

0

65

Troy-Bilt 791-612483

SHAFT-SPOOL

$55.99

$

In Stock, only 1 left!

0

66

Troy-Bilt 791-683301

SPOOL ASSEMBLY-OUTER

Note: (Incl. 67)

$48.99

$

In Stock, Qty 6

0

67

Troy-Bilt 791-612026

RETAINER .968 OD
(Superseded to 1772)

$6.99

$

In Stock, Qty 13

0

68

Troy-Bilt 791-610636B

SPRING-SPOOL

$10.99

$

In Stock, only 2 left!

0

69

Troy-Bilt 791-147495

REEL-INNER SPOOL 3000 STRG TRM

$26.99

$

In Stock, Qty 7

0

70

Troy-Bilt 791-180814B

KNOB ASSEMBLY-BUMP 3000 STRG TRM

$21.99

$

In Stock, Qty 20+

0

71

Troy-Bilt 791-145873B

BLADE 4-TOOTH

$42.99

$

In Stock, only 4 left!

0

72

Troy-Bilt 791-147490

WASHER-BLADE CLAMP BRUSH CUT

$11.99

$

In Stock, only 2 left!

0

73

Troy-Bilt 712-04105

BLADE LOCK NUT

$10.99

$

Usually ships in 3-6 days

0

Troy-Bilt 791-180014B

KIT, BLADE RETAINING ST SHAFT

Note: (Incl. 72 and 73)

$12.99

$

In Stock, only 1 left!

0

Troy-Bilt 791-613226

TOOL-LOCKING ROD

$14.99

$

In Stock, only 1 left!

0

Troy-Bilt 791-682075B

STRAP ASSEMBLY-SHOULDER

$38.99

$

Usually ships in 3-6 days

0

Troy-Bilt 753-1224

.105 DUAL LINE CAR

$32.99

$

Usually ships in 3-6 days

0

Troy-Bilt 753-1161

BUMP HEAD ASSEMBLY
(Superseded to 791-147498)

Note: (Incl. 66 - 70)

$117.99

$

In Stock, only 1 left!

0
