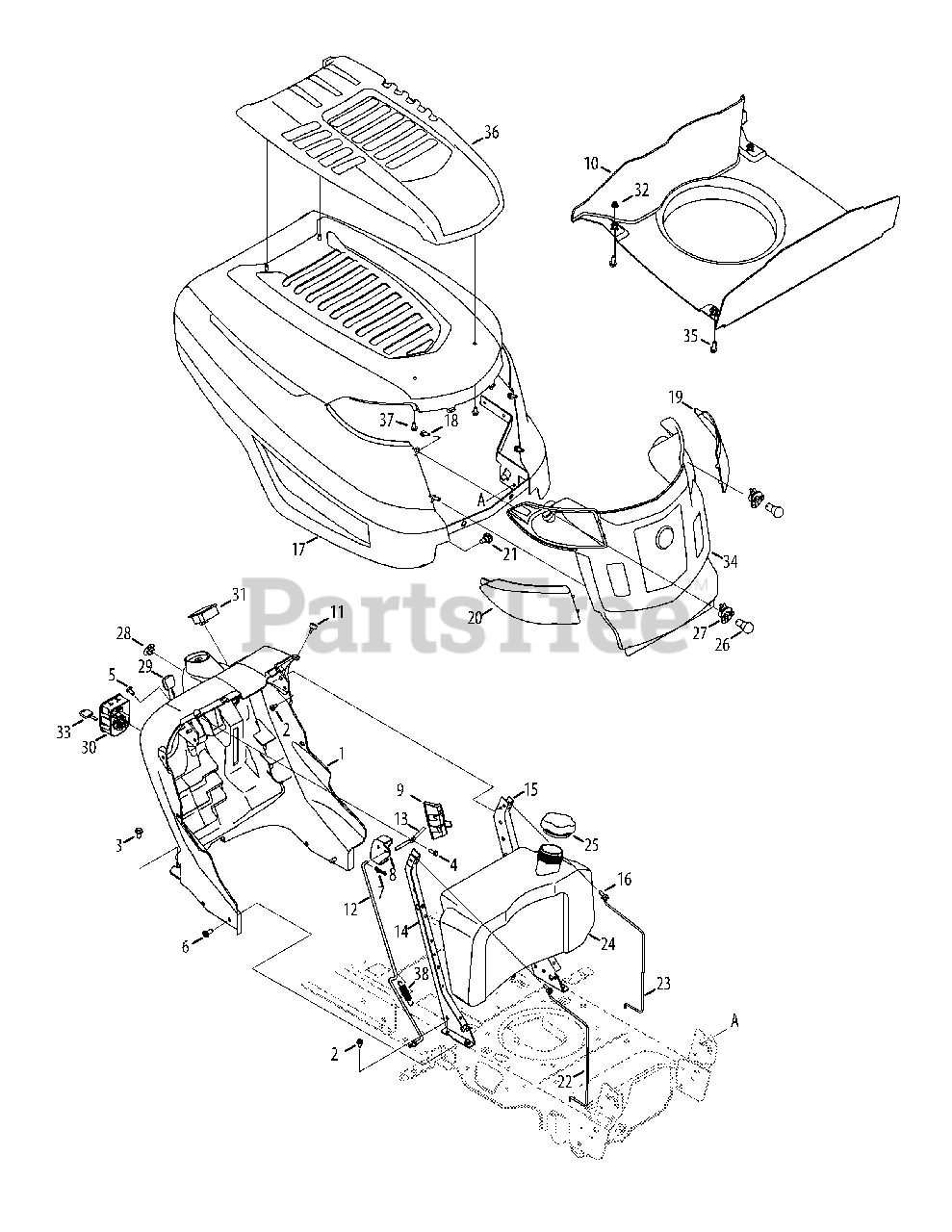

TB 2654 (14BR94KK066) - Troy-Bilt 54" Garden Tractor (2014) Hood & Dash Parts Diagram

54" Garden Tractor

Hood & Dash Parts Diagram

  • Title

1

Troy-Bilt 931-04664

Dash Assenbly

$

$

Not available

2

Troy-Bilt 710-0599

Taptite Screw ,1/4-20 x 0.500

$4.49

$

In Stock, Qty 20+

0

3

Troy-Bilt 710-04484

Taptite Screw ,5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

4

Troy-Bilt 710-0895

Hi-Lo Screw, 1/4-15 x 0.750

$6.49

$

Usually ships in 3-6 days

0

5

Troy-Bilt 710-1017

Screw, 1/4-14 x 0.625

$8.49

$

In Stock, Qty 9

0

6

Troy-Bilt 710-1611B

Taptite Screw ,5/16-18 x 0.750

$6.99

$

In Stock, only 2 left!

0

7

Troy-Bilt 714-04040

Bow Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

8

Troy-Bilt 731-06639

Dash Lever

$

$

Not available

9

Troy-Bilt 731-06642

Cruise Cover

$5.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 931-06212

Plenum

$38.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 735-0271A

Bumper

$8.99

$

In Stock, only 4 left!

0

12

Troy-Bilt 747-05008

Control Rod

$16.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt 747-1196

Lever

$15.99

$

Usually ships in 3-6 days

0

14

Troy-Bilt 783-04285F-0637

RH Support Plate

$

$

Not available

15

Troy-Bilt 783-04323F-0637

LH Support Plate

$34.99

$

Usually ships in 3-6 days

0

16

Troy-Bilt 710-1652

Tap Screw, 1/4-20, 0.625

$4.49

$

In Stock, Qty 20+

0

17

Troy-Bilt 683-04774-0638

Hood Assembly

$344.99

$

Usually ships in 3-6 days

0

18

Troy-Bilt 710-05108

Screw, 1/4 DIA x .750

$3.99

$

In Stock, Qty 20+

0

19

Troy-Bilt 731-06095

LH Lens

$12.99

$

In Stock, only 1 left!

0

20

Troy-Bilt 731-06096

RH Lens

$12.99

$

In Stock, only 2 left!

0

21

Troy-Bilt 738-04091A

Shoulder Screw, .43 x .29

$3.99

$

In Stock, Qty 20+

0

22

Troy-Bilt 747-04161

LH Tank Support Rod

$

$

Not available

23

Troy-Bilt 747-04946

RH Tank Support Rod

$

$

Not available

24

Troy-Bilt 951-04309

Fuel Tank

$

$

Not available

25

Troy-Bilt 951-12182

Fuel Cap

$36.99

$

In Stock, only 1 left!

0

26

Troy-Bilt 925-0963

Lamp

$7.49

$

In Stock, only 3 left!

0

27

Troy-Bilt 925-1649

Lamp Socket
(Superseded to 925-1649A)

$11.99

$

In Stock, Qty 20+

0

28

Troy-Bilt 731-1999

Choke Plug

$10.99

$

Usually ships in 3-6 days

0

29

Troy-Bilt 946-04542

Throttle/Choke Cable, 46.5"

$47.99

$

In Stock, only 1 left!

0

30

Troy-Bilt 725-06102A

Module Switch, Ignition
(Superseded to 725-13425)

$96.99

$

In Stock, Qty 7

0

31

Troy-Bilt 925-06154

Hour Meter
(Superseded to 925-06170B)

$70.99

$

Usually ships in 3-6 days

0

32

Troy-Bilt 712-04064

Flangelock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

33

Troy-Bilt 625-05002

Key, Assembly
(Superseded to 925-1745A)

$17.99

$

In Stock, Qty 20+

0

34

Troy-Bilt 631-04272

Grill

$70.99

$

Usually ships in 3-6 days

0

35

Troy-Bilt 710-0751

Hex Screw, 1/4-20 x .620

$3.99

$

In Stock, Qty 20+

0

36

Troy-Bilt 731-06194B

Hood Scoop

$56.99

$

Usually ships in 3-6 days

0

37

Troy-Bilt 710-04187

Hex Washer Screw, 1/4-15 x .50
(Superseded to 710-04187A)

$6.99

$

In Stock, Qty 20+

0

38

Troy-Bilt 732-04580

Spring, .500 Dia. x 2.733

$6.49

$

Usually ships in 3-6 days

0
