TB 2654 (14AR94KK066) - Troy-Bilt 54" Garden Tractor (2013) Engine Accessories Parts Diagram

54" Garden Tractor

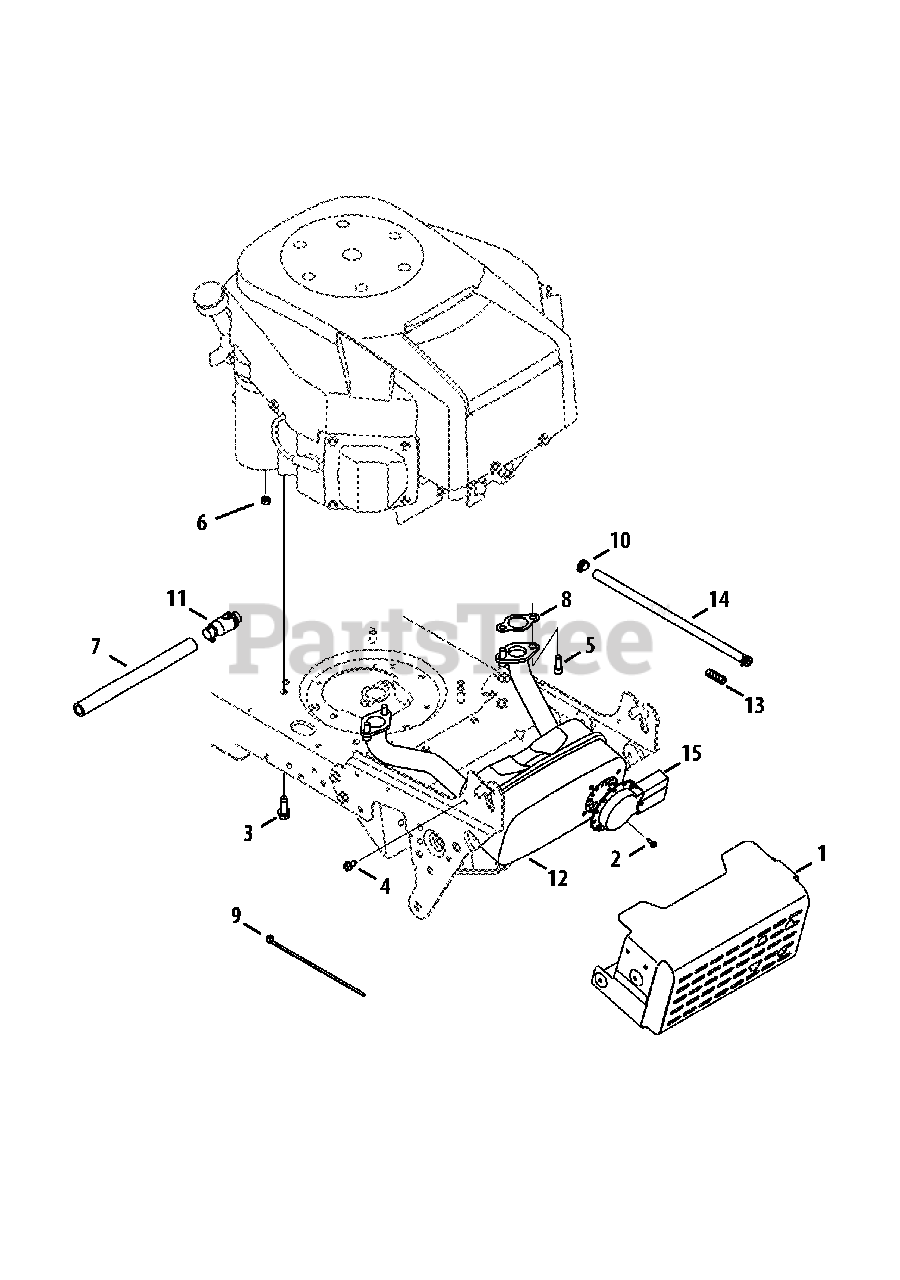

Engine Accessories Parts Diagram

  • Title

1

Troy-Bilt 683-04549-0637

Shield Ass’y, Muffler
(Superseded to 683-05460A-0637)

$80.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 710-0227

Screw, Ab, #8-18, 0.500,

$4.49

$

In Stock, Qty 15

0

3

Troy-Bilt 710-04683A

Screw, Self-tapping, 3/8-16, 1.000,
(Superseded to 710-04683C)

$6.49

$

In Stock, only 3 left!

0

4

Troy-Bilt 710-0599

Screw, Self-tapping, 1/4-20, 0.500,

$4.49

$

In Stock, Qty 20+

0

5

Troy-Bilt 710-1314A

Screw, Socket Head, 5/16-18, .750

$4.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 712-0271

Nut, Sems, 1/4-20

$4.49

$

In Stock, Qty 10

0

7

Troy-Bilt 751-3141-14

Hose, Extension, Oil Drain

$11.99

$

In Stock, Qty 8

0

8

Troy-Bilt 721-0460

Gasket, Exhaust, Briggs
(Superseded to 721P0460)

$6.99

$

In Stock, only 2 left!

0

9

Troy-Bilt 725-0157

Cable, Tie, 3/16 x .05 x 7.4

$3.99

$

In Stock, only 2 left!

0

10

Troy-Bilt 726-0205

Clamp, Hose, .490 Dia.

$3.99

$

In Stock, Qty 18

0

11

Troy-Bilt 951-10517A

Drain, Oil

$24.99

$

In Stock, only 1 left!

0

12

Troy-Bilt 751-10542A

Muffler, Briggs Twin
(Superseded to 951-10542E)

$142.99

$

In Stock, only 2 left!

0

13

Troy-Bilt 751-12089-28

Hose, Vent

$8.99

$

In Stock, only 1 left!

0

14

Troy-Bilt 751-10349

Hose, Fuel, Low Permeation, 1/4

$9.49

$

Usually ships in 3-6 days

0

15

Troy-Bilt 751-11053A

Deflector, Muffler, Long
(Superseded to 751-11053B)

$5.49

$

In Stock, only 3 left!

0
