TB 260 (12AVB29Q766) - Troy-Bilt Walk-Behind Mower (2011) General Assembly TB260 Parts Diagram

Walk-Behind Mower

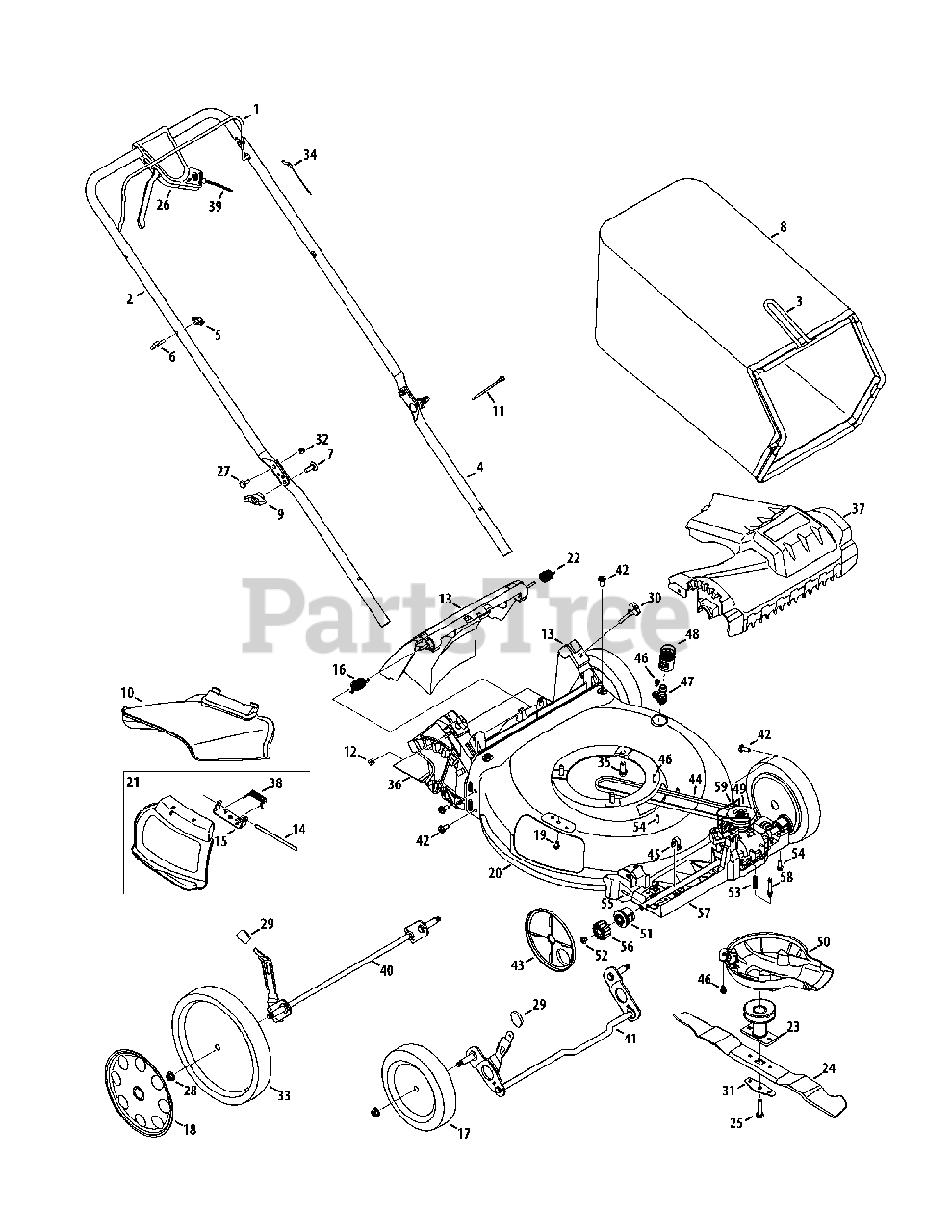

General Assembly TB260 Parts Diagram

  • Title

1

Troy-Bilt 747-05267A

Blade Control
(Superseded to 747-05267C)

$16.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 749-04679-0637

Upper Handle
(Superseded to 749-04679D-0637)

$46.99

$

In Stock, only 1 left!

0

3

Troy-Bilt 747-05226-0637

Grass Catcher Frame
(Superseded to 647-04271-0637)

$41.99

$

In Stock, Qty 20+

0

4

Troy-Bilt 749-04608A-0637

Lower Handle
(Superseded to 749-07298-0637)

$9.99

$

In Stock, Qty 5

0

5

Troy-Bilt 720-0279

Wing Nut

$4.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 710-1205

Rope Guide

$3.99

$

In Stock, Qty 20+

0

7

Troy-Bilt 710-04998

Carriage Screw ,5/16-18

$5.99

$

In Stock, only 2 left!

0

8

Troy-Bilt 964-04117

Grass Bag
(Superseded to 964-04117C)

$54.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 720-04124

Wing Knob

$4.99

$

In Stock, Qty 7

0

10

Troy-Bilt 731-07131

Side Chute

$15.99

$

In Stock, Qty 5

0

11

Troy-Bilt 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

12

Troy-Bilt 712-04222

Nut, Sq., 1/4-20

$5.49

$

Usually ships in 3-6 days

0

13

Troy-Bilt 631-04369

Rear Discharge Door Assembly
(Superseded to 631-08159)

$55.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt 631-04371

Rear Discharge Door Assembly (Lowes 766)
(Superseded to 631-08159)

$55.99

$

Usually ships in 3-6 days

0

14

Troy-Bilt 747-0710A

Hinge Pin

$4.49

$

In Stock, Qty 20+

0

15

Troy-Bilt 787-01779

Chute Deflector Bracket

$4.99

$

In Stock, only 1 left!

0

16

Troy-Bilt 732-04673

Torsion Spring - RH
(Superseded to 732-05061B)

$5.49

$

In Stock, only 1 left!

0

17

Troy-Bilt 734-04579

Front Wheel
(Superseded to 753-08087)

$44.99

$

In Stock, Qty 18

0

18

Troy-Bilt 731-07199

Hubcap

$10.99

$

In Stock, Qty 5

0

19

Troy-Bilt 710-05073

Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

20

Troy-Bilt 787-01872A-0638

Deck , 21"
(Superseded to 787-01872C-0638)

$143.99

$

In Stock, only 1 left!

0

21

Troy-Bilt 987-02516

Hinged Mulch Plug Assembly
(Superseded to 687-06029)

$25.99

$

In Stock, Qty 20+

0

22

Troy-Bilt 732-04674

Torsion Spring - LH
(Superseded to 732-04674A)

$4.49

$

In Stock, only 2 left!

0

23

Troy-Bilt 687-02528

Blade Adapter Assembly

$39.99

$

In Stock, Qty 20+

0

24

Troy-Bilt 942-0741A

Mulching Blade

$29.99

$

In Stock, Qty 20+

0

25

Troy-Bilt 710-1044

Screw , 3/8-24 x 1.50

$3.99

$

In Stock, only 3 left!

0

26

Troy-Bilt 753-06060

Control Lever Assembly
(Superseded to 753-06060A)

$27.99

$

Usually ships in 3-6 days

0

27

Troy-Bilt 738-04419A

Sldr. Screw, .375 x .126 x 1/4-20

$4.49

$

In Stock, Qty 8

0

28

Troy-Bilt 712-04217

Flange Lock Nut, 3/8-16

$4.49

$

In Stock, Qty 16

0

29

Troy-Bilt 720-04131A

Adjustment Lever Knob

$6.49

$

In Stock, only 1 left!

0

30

Troy-Bilt 720-04127

Wing Nut
(Superseded to 720-05067A)

$5.99

$

In Stock, Qty 14

0

31

Troy-Bilt 736-0524B

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, Qty 5

0

32

Troy-Bilt 712-04064

Nut, Flange Lock, 1/4-20

$3.99

$

In Stock, Qty 20+

0

33

Troy-Bilt 634-04626

Rear Wheel
(Superseded to 634-05063)

$43.99

$

In Stock, only 2 left!

0

34

Troy-Bilt 946-04670

Control Cable (Honda)
(Superseded to 946-04670A)

$26.99

$

In Stock, only 3 left!

0

35

Troy-Bilt 710-0654A

TT Sems Screw, 3/8-16 x 1.0

$4.49

$

In Stock, Qty 20+

0

36

Troy-Bilt 731-07203

Trail Shield

$10.99

$

In Stock, only 2 left!

0

37

Troy-Bilt 731-07790

Front Cover
(Superseded to 731-07790A)

$29.99

$

In Stock, Qty 10

0

38

Troy-Bilt 732-1014

Torsion Spring
(Superseded to 732-1014C)

$7.99

$

In Stock, Qty 20+

0

39

Troy-Bilt 946-04655

Variable Speed Cable
(Superseded to 946-04655A)

$24.99

$

In Stock, only 2 left!

0

40

Troy-Bilt 911-04144

Rear Axle Assembly
(Superseded to 911-04144B)

$36.99

$

Usually ships in 3-6 days

0

41

Troy-Bilt 911-04150

Front Axle Assembly

$45.99

$

In Stock, only 1 left!

0

42

Troy-Bilt 710-04995

Screw, 5/16-14 x .750
(Superseded to 710-04995A)

$4.49

$

In Stock, Qty 20+

0

43

Troy-Bilt 731-07240

Wheel Dust Cover
(Superseded to 731-07240A)

$6.49

$

In Stock, Qty 6

0

44

Troy-Bilt 954-04260

V-Belt

$28.99

$

In Stock, Qty 20+

0

45

Troy-Bilt 787-01793

Front Axle Clip

$4.49

$

In Stock, Qty 18

0

46

Troy-Bilt 738-04278

Scr., Shldr., 1/4-20 x .50

$6.99

$

In Stock, Qty 5

0

47

Troy-Bilt 731-07487

Water Nozzle

$4.49

$

In Stock, only 1 left!

0

48

Troy-Bilt 921-04041

Water Nozzle Adapter

$23.99

$

In Stock, Qty 20+

0

49

Troy-Bilt 918-04881

Transmission Assembly
(Superseded to 918-04881C)

$148.99

$

Usually ships in 3-6 days

0

50

Troy-Bilt 931-04535

Engine Baffle
(Superseded to 931-04535C)

$14.99

$

In Stock, Qty 8

0

51

Troy-Bilt 941-00019

Bearing Assembly

$6.99

$

In Stock, only 2 left!

0

52

Troy-Bilt 710-04531

Screw, 1/4-20 x .390

$5.49

$

In Stock, Qty 20+

0

53

Troy-Bilt 732-04704

Compression Spring

$4.49

$

In Stock, Qty 20+

0

54

Troy-Bilt 710-0895

Screw, 1/4-15 x .750

$6.49

$

Usually ships in 3-6 days

0

55

Troy-Bilt 715-04099

Dowel Pin

$4.49

$

In Stock, Qty 20+

0

56

Troy-Bilt 917-04801

Spur Gear, 14T - RH

$9.99

$

In Stock, only 2 left!

0

56

Troy-Bilt 917-04802

Spur Gear, 14T - LH

$9.49

$

In Stock, only 4 left!

0

57

Troy-Bilt 731-07789

Lower Tray
(Superseded to 731-07789A)

$33.99

$

In Stock, only 1 left!

0

58

Troy-Bilt 731-07355

Spring Body

$5.99

$

Usually ships in 3-6 days

0

59

Troy-Bilt 732-04675A

Transmission Wire
(Superseded to 732-04675B)

$3.99

$

In Stock, Qty 20+

0
