TB 26 TB (41ADT2BC966) - Troy-Bilt String Trimmer Boom and Trimmer Parts Diagram

String Trimmer

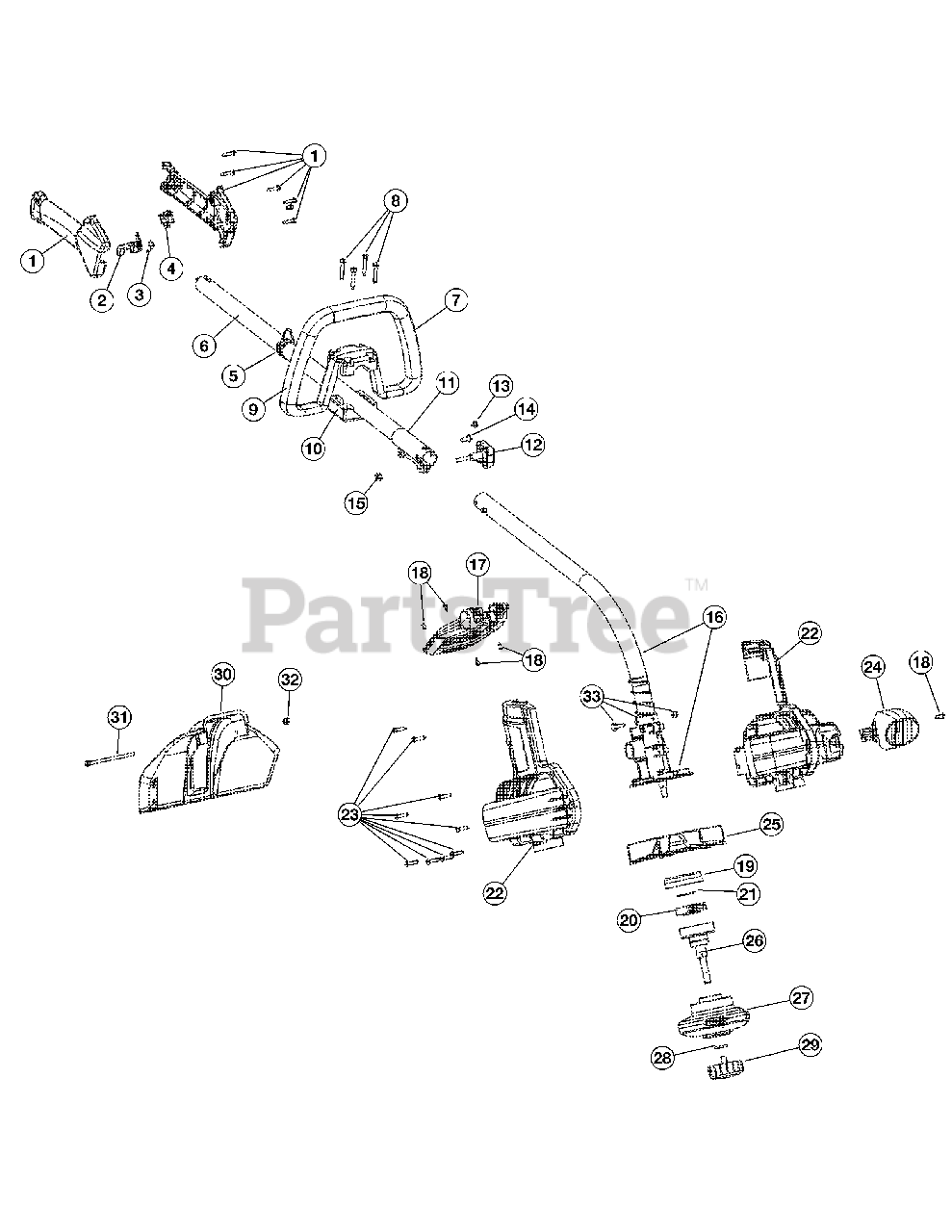

Boom and Trimmer Parts Diagram

  • Title

1

Troy-Bilt 753-04234

Throttle Housing Assembly (includes 2-4)

$21.99

$

In Stock, Qty 7

0

2

Troy-Bilt 753-04119

Throttle Trigger

$7.49

$

In Stock, Qty 18

0

3

Troy-Bilt 791-182690

Throttle Trigger Spring

$7.99

$

In Stock, only 2 left!

0

4

Troy-Bilt 791-182405

Switch Assembly

$10.99

$

In Stock, Qty 12

0

5

Troy-Bilt 791-610327

Harness Clip

$32.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 753-04503

Upper Drive Shaft Housing Assembly

$

$

Not available

7

MTD 791-180869

Deluxe D-Handle Assembly (includes 8-10)

$

$

Not available

8

Troy-Bilt 791-181070

Screw

$4.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 791-182167

D-Handle

$76.99

$

Usually ships in 3-6 days

0

10

MTD 791-182168

D-Handle Base

$

$

Not available

11

Troy-Bilt 753-1190

Split Boom Coupler (includes 12-15)

$23.99

$

In Stock, only 1 left!

0

12

Troy-Bilt 791-181981

Adjustment Knob (includes 15)
(Superseded to 697-00661-9)

$

$

Not available

13

Troy-Bilt 791-182057

Screw

$4.49

$

In Stock, Qty 6

0

14

Troy-Bilt 791-181617

Bolt

$5.49

$

In Stock, Qty 11

0

15

Troy-Bilt 753-04386

Nut
(Superseded to 712-04018A)

$4.49

$

In Stock, Qty 5

0

16

Troy-Bilt 753-05272

Lower Drive Shaft Housing Assembly (includes 33)

$108.99

$

Usually ships in 3-6 days

0

17

MTD 753-05307

Shift Handle Assembly (includes 18)

$

$

Not available

18

Troy-Bilt 753-1202

Screw
(Superseded to 1755)

$3.99

$

Usually ships in 3-6 days

0

19

Troy-Bilt 753-05233

Clutch Drum Container

$

$

Not available

20

Troy-Bilt 753-05257

Clutch Assembly

$51.99

$

Usually ships in 3-6 days

0

21

Troy-Bilt 791-182396

Washer
(Superseded to 9162-1)

$4.49

$

In Stock, only 3 left!

0

22

Troy-Bilt 753-05273

Housing Assembly (includes 23)

$

$

Not available

23

Troy-Bilt 753-05274

Screw
(Superseded to 710-04508)

$4.49

$

In Stock, only 2 left!

0

24

Troy-Bilt 753-05275

Nozzle

$39.99

$

Usually ships in 3-6 days

0

25

Troy-Bilt 753-05276

Impeller

$33.99

$

Usually ships in 3-6 days

0

26

Troy-Bilt 753-05277

Clutch Drum Assembly w/Spool Shaft

$

$

Not available

27

Troy-Bilt 753-05165

Fixed Line Head
(Superseded to 753-08193)

$12.99

$

In Stock, only 2 left!

0

28

Troy-Bilt 791-182413

Washer
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

29

Troy-Bilt 791-153066B

Bump Knob Assembly

$13.99

$

In Stock, Qty 20+

0

30

Troy-Bilt 753-05282

Guard Assembly w/Blade (includes 31 & 34)

$

$

Not available

31

Troy-Bilt 753-05283

Screw
(Superseded to 710-04563)

$4.49

$

In Stock, only 1 left!

0

32

Troy-Bilt 791-180217

Nut
(Superseded to 712-0161)

$4.49

$

In Stock, Qty 20+

0

33

Troy-Bilt 791-153597

Clamp

$

$

Not available
