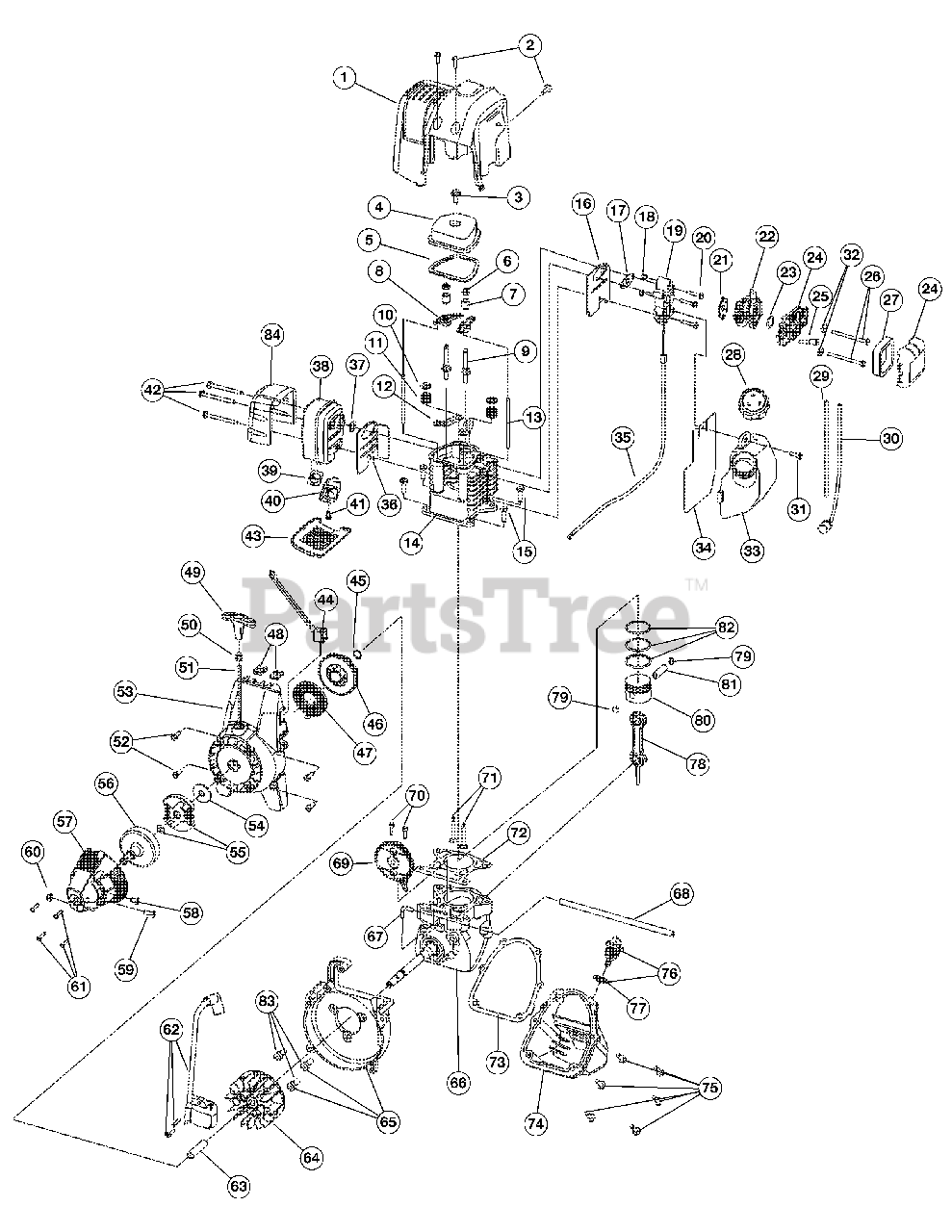

TB 26 CO (41AD26OG966) - Troy-Bilt String Trimmer Engine Parts Diagram

String Trimmer

Engine Parts Diagram

  • Title

1

Troy-Bilt 753-04083

Engine Cover

$

$

Not available

2

Troy-Bilt 753-04994

Engine Cover Screws

$6.99

$

In Stock, only 1 left!

0

3

Troy-Bilt 791-181025

Valve Cover Screw

$2.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 791-182098

Valve Cover

$10.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 791-182099

Valve Cover Gasket

$9.99

$

Usually ships in 3-6 days

0

6

MTD 791-182340

Rocker Adjustment Nut

$

$

Not available

7

Troy-Bilt 791-182101

Rocker Arm Pivot

$6.99

$

In Stock, only 1 left!

0

8

Troy-Bilt 791-182100

Rocker Arm

$

$

Not available

9

Troy-Bilt 791-182341

Rocker Arm Stud

$

$

Not available

10

Troy-Bilt 791-182103

Valve Spring Retainer

$

$

Not available

11

MTD 791-181038

Valve Spring

$

$

Not available

12

Troy-Bilt 791-182102

Push Rod Guide

$

$

Not available

13

MTD 791-181033

Push Rod

$

$

Not available

14

MTD 753-04816

Cylinder Assembly (includes 9, 12, 15, 71 & 72)

$

$

Not available

15

Troy-Bilt 791-181003

Cylinder Screw
(Superseded to 9052-1)

$

$

Not available

16

Troy-Bilt 791-182345

Intake Baffle

$4.99

$

In Stock, only 2 left!

0

17

Troy-Bilt 791-182749

Carburetor Mount Gasket

$9.49

$

In Stock, only 1 left!

0

18

MTD 791-181034

Nut
(Superseded to 9072)

$

$

Not available

19

Troy-Bilt 791-182347

Carburetor Mount (includes 18)

$19.99

$

Usually ships in 3-6 days

0

20

MTD 791-182348

Carburetor Mount Screw

$

$

Not available

21

MTD 791-182732

Carburetor Gasket

$

$

Not available

22

Troy-Bilt 753-1225

Carburetor with Primer

$71.99

$

In Stock, Qty 13

0

23

Troy-Bilt 791-181751

O-Ring, Carburetor

$4.49

$

In Stock, Qty 19

0

24

Troy-Bilt 791-182350

Air Filter Assembly (includes 27)
(Superseded to 753-04223)

$30.99

$

Usually ships in 3-6 days

0

25

Troy-Bilt 791-182097

Breather Tube

$10.99

$

In Stock, only 1 left!

0

26

Troy-Bilt 791-181750

Air Filter Mounting Screw

$6.49

$

Usually ships in 3-6 days

0

27

Troy-Bilt 791-181757

Air Filter

$3.99

$

In Stock, Qty 20+

0

28

Troy-Bilt 753-04084

Fuel Cap

$22.99

$

Usually ships in 3-6 days

0

29

Troy-Bilt 791-182352

Fuel Return Line

$7.99

$

In Stock, Qty 19

0

30

Troy-Bilt 791-182353

Fuel Pick-Up Line with Filter

$10.99

$

In Stock, Qty 9

0

31

Troy-Bilt 753-04510

Screw
(Superseded to 710-04185)

$

$

Not available

32

Troy-Bilt 791-182409

Washer

$4.99

$

In Stock, Qty 5

0

33

MTD 791-182355

Fuel Tank Assembly (includes 28-30)

$

$

Not available

34

MTD 791-182356

Fuel Tank Shield

$

$

Not available

35

Troy-Bilt 753-1231

Throttle Cable

$17.99

$

In Stock, only 1 left!

0

36

MTD 791-182358

Muffler Baffle

$

$

Not available

37

Troy-Bilt 791-181048

Muffler Gasket
(Superseded to 9094-1)

$4.99

$

Usually ships in 3-6 days

0

38

MTD 791-182359

Muffler (includes 37, 39-41)

$

$

Not available

39

MTD 791-180890

Spark Arrestor Screen

$

$

Not available

40

Troy-Bilt 791-181045

Screen Cover

$

$

Not available

41

Troy-Bilt 791-181046

Screw

$

$

Not available

42

MTD 791-182361

Muffler Mounting Screw

$

$

Not available

43

MTD 753-04092

Muffler Cover

$

$

Not available

44

Troy-Bilt 791-182365

Switch Assembly

$

$

Not available

45

Troy-Bilt 753-04288

Pulley Retainer

$10.99

$

Usually ships in 3-6 days

0

46

Troy-Bilt 753-1199

Recoil Pulley

$24.99

$

In Stock, only 4 left!

0

47

Troy-Bilt 753-04286

Recoil Spring

$26.99

$

In Stock, Qty 5

0

48

Troy-Bilt 791-182366

Nut Clip

$5.99

$

In Stock, only 1 left!

0

49

Troy-Bilt 791-181079

Pull Handle
(Superseded to 631-04164B)

$3.99

$

In Stock, Qty 11

0

50

Troy-Bilt 791-611061

Rope Guide

$10.99

$

In Stock, only 2 left!

0

51

Troy-Bilt 791-613103

Rope

$10.99

$

In Stock, only 2 left!

0

52

Troy-Bilt 791-181020

Starter Housing Screw
(Superseded to 9054)

$4.49

$

In Stock, only 4 left!

0

53

Troy-Bilt 753-1237

Starter Housing Assembly (includes 45-52)
(Superseded to 753-04910)

$51.99

$

In Stock, Qty 5

0

54

Troy-Bilt 791-182396

Clutch Washer
(Superseded to 9162-1)

$4.49

$

In Stock, only 3 left!

0

55

Troy-Bilt 753-1238

Clutch with Spacer

$45.99

$

In Stock, Qty 13

0

56

Troy-Bilt 791-153592

Clutch Drum

$51.99

$

In Stock, Qty 12

0

57

MTD 753-1239

Clutch Cover

$

$

Not available

58

Troy-Bilt 791-145569

Anti-Rotation Screw

$9.99

$

In Stock, Qty 7

0

59

MTD 753-1240

Screw

$

$

Not available

60

MTD 753-1241

Nut

$

$

Not available

61

Troy-Bilt 791-181345

Clutch Cover Screw

$4.49

$

In Stock, Qty 20+

0

62

MTD 791-182725

Ignition Module Assembly

$

$

Not available

63

MTD 791-181065

Spacer

$

$

Not available

64

Troy-Bilt 791-182736

Flywheel
(Superseded to 753-05240)

$76.99

$

In Stock, only 2 left!

0

65

MTD 791-182743

Shroud Assembly (includes 83)

$

$

Not available

66

Troy-Bilt 791-182376

Crankcase Assembly (includes 67 & 68)

$

$

Not available

67

Troy-Bilt 791-182375

Breather Fitting

$

$

Not available

68

Troy-Bilt 791-182379

Breather Hose

$4.99

$

Usually ships in 3-6 days

0

69

Troy-Bilt 753-04919

Cam Bracket Assembly

$36.99

$

Usually ships in 3-6 days

0

70

MTD 791-181012

Cam Bracket Screw

$

$

Not available

71

Troy-Bilt 791-181040

Valves, Intake and Exhaust

$

$

Not available

72

Troy-Bilt 791-182374

Cylinder Gasket

$

$

Not available

73

Troy-Bilt 791-181018

Oil Pan Gasket

$

$

Not available

74

MTD 791-182377

Oil Pan (includes 73 & 75)

$

$

Not available

75

Troy-Bilt 791-181020

Oil Pan Screw
(Superseded to 9054)

$4.49

$

In Stock, only 4 left!

0

76

Troy-Bilt 753-04041

Dipstick Assembly (includes 77)
(Superseded to 791-182378)

$10.99

$

Usually ships in 3-6 days

0

77

Troy-Bilt 791-182290

O-Ring

$4.99

$

In Stock, Qty 9

0

78

Troy-Bilt 791-181009

Connecting Rod

$

$

Not available

79

Troy-Bilt 791-181008

Wrist Pin Button

$

$

Not available

80

MTD 753-04878

Piston

$

$

Not available

81

Troy-Bilt 753-05176

Wrist Pin

$

$

Not available

82

Troy-Bilt 753-04801

Piston Ring Set

$

$

Not available

83

Troy-Bilt 791-181861

Shroud Screw

$4.49

$

Usually ships in 3-6 days

0

84

MTD 791-182360

Heat Shield

$

$

Not available

Troy-Bilt 791-180852B

Spark Plug
(Superseded to 794-00082)

$7.49

$

In Stock, Qty 5

0

Troy-Bilt 753-04087

Short Block Assembly (includes 3-14, 65-82)

$

$

Not available
