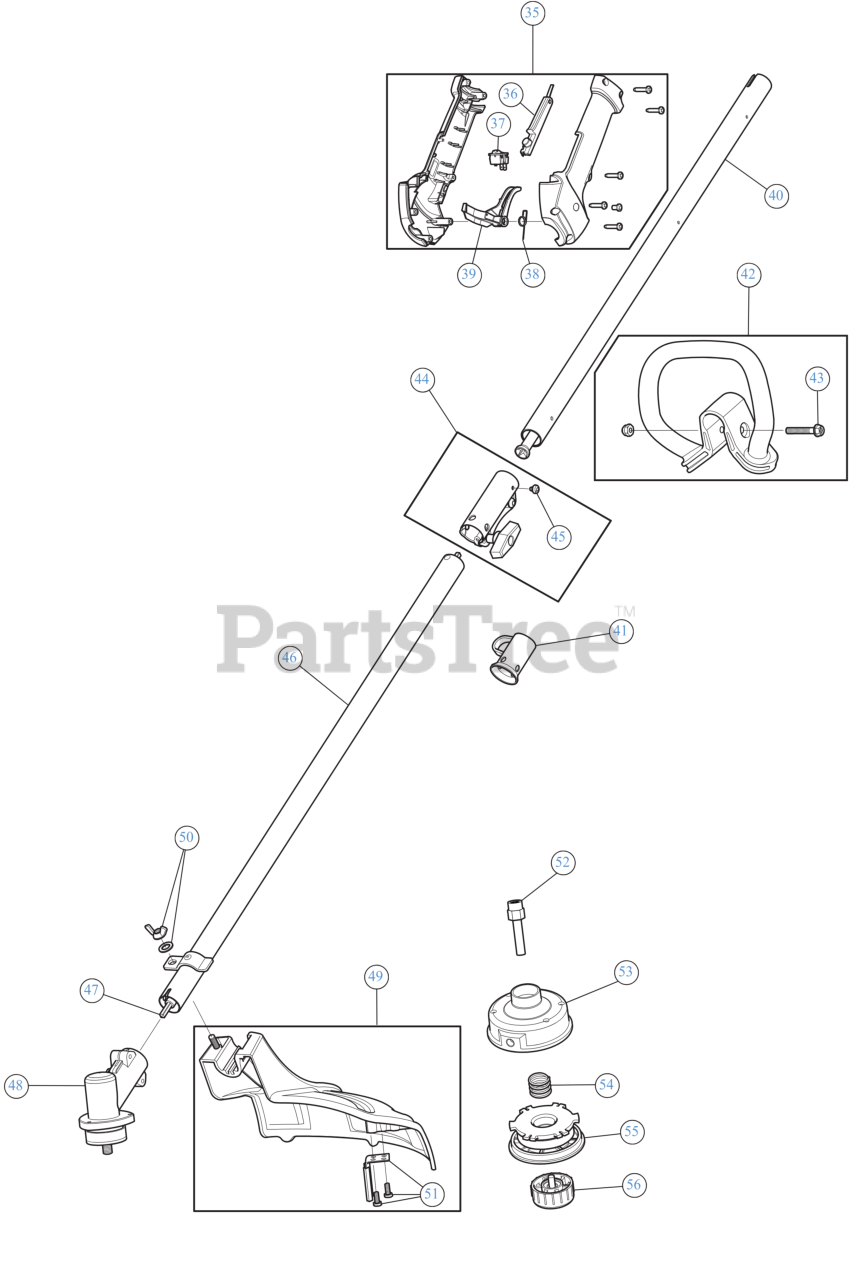

TB 252 S (41AD252S766) - Troy-Bilt String Trimmer General Assembly Parts Diagram

String Trimmer

General Assembly Parts Diagram

  • Title

35

Troy-Bilt 753-08344

THROTTLE GRIP ASSEMBLY

Note: (Incl. 36 - 39)

$30.99

$

Usually ships in 3-6 days

0

36

Troy-Bilt 731-08433C-10

LEVER LOCK OUT

$3.49

$

In Stock, Qty 14

0

37

Troy-Bilt 791-182405

SW, MOMENTARY ON/O

$10.99

$

In Stock, Qty 12

0

38

Troy-Bilt 753-05007

SPRING TRIG

$5.49

$

In Stock, only 3 left!

0

39

Troy-Bilt 731-04970B-10

THROTTLE TRIGGER

$9.49

$

In Stock, Qty 20+

0

40

Troy-Bilt 753-06880

BOOM ASSEMBLY UPR

$19.99

$

In Stock, only 1 left!

0

41

Troy-Bilt 731-08926

HANGER

$2.99

$

In Stock, Qty 20+

0

42

Troy-Bilt 753-08042

D-HANDLE

Note: (Incl. 43)

$4.99

$

In Stock, Qty 7

0

43

Troy-Bilt 753-06040

BOLT 1/4-20X1 1/2

$6.99

$

In Stock, only 1 left!

0

44

Troy-Bilt 753-1190

SPLIT BOOM COUPLER KIT

Note: (Incl. 45)

$23.99

$

In Stock, only 1 left!

0

45

Troy-Bilt 791-182057

SCREW, 10-32X.250 TA

$4.49

$

In Stock, only 3 left!

0

46

MTD 753-08748

LOWER BOOM ASSEMBLY

$18.99

$

In Stock, only 1 left!

0

47

Troy-Bilt 753-05267

LOWER DRIVE SHAFT

$42.99

$

In Stock, only 1 left!

0

48

Troy-Bilt 697P00748

GEARBOX ASSEMBLY 1PC

$

$

Not available

49

Troy-Bilt 841-032093S

GUARD/BLADE ASM

Note: (Incl. 50 & 51)

$12.99

$

In Stock, Qty 9

0

50

Troy-Bilt 753-04282

BLADE GUARD MOUNTING HARDWARE

$25.99

$

In Stock, only 1 left!

0

51

Troy-Bilt 753-08355

BLADE ASSEMBLY W/HDW

$4.49

$

In Stock, Qty 20+

0

52

Troy-Bilt 711-06397

SHAFT ADAPTER

$9.49

$

In Stock, only 1 left!

0

53

Troy-Bilt 753-04284

REEL:OTR W/RET

$28.99

$

In Stock, only 2 left!

0

54

Troy-Bilt 791-610317B

SPRING-SPOOL

$10.99

$

In Stock, only 2 left!

0

55

Troy-Bilt 731-10724-10

INNER REEL

$4.99

$

In Stock, only 1 left!

0

56

Troy-Bilt 753-08559

BUMP KNOB ASSEMBLY (LH)

$6.49

$

In Stock, Qty 20+

0
