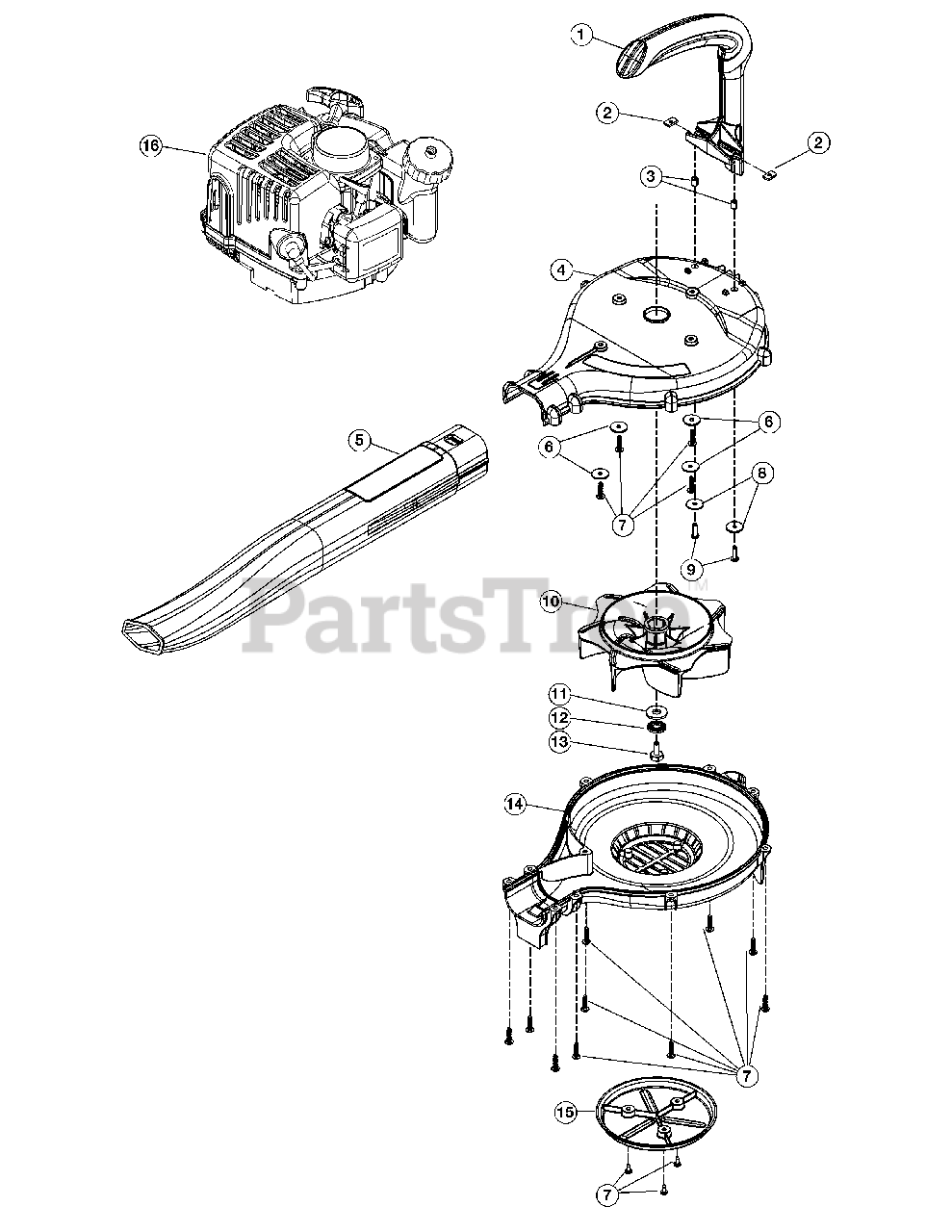

TB 250 B (41BR290G966) - Troy-Bilt Handheld Blower General Assembly Parts Diagram

Handheld Blower

General Assembly Parts Diagram

  • Title
1

Troy-Bilt 753-04591

Blower Handle
(Superseded to 731-04452)

$32.99

$

Usually ships in 3-6 days

0

2

MTD 753-04186

Weldnut

$

$

Not available

3

Troy-Bilt 753-04592

Spacer
(Superseded to 797-00015)

$3.49

$

Usually ships in 3-6 days

0

4

Troy-Bilt 753-04593

Upper Impeller Housing

$

$

Not available

5

Troy-Bilt 753-04594

Blower Tube
(Superseded to 731-04444)

$30.99

$

Usually ships in 3-6 days

0

$4.99

$

In Stock, Qty 5

0

7

Troy-Bilt 753-04595

Housing Screw
(Superseded to 710-04194)

$4.49

$

In Stock, Qty 20+

0

8

MTD 791-181904

Handle Washer

$

$

Not available

9

Troy-Bilt 791-683606

Handle Screw

$

$

Not available

10

Troy-Bilt 753-04596

Impeller
(Superseded to 731-04275)

$35.99

$

In Stock, Qty 5

0

11

Troy-Bilt 753-04597

Washer
(Superseded to 736-04117)

$3.49

$

In Stock, Qty 11

0

12

Troy-Bilt 753-04598

Lock Washer
(Superseded to 736-04118)

$

$

Not available

13

Troy-Bilt 753-04599

Bolt
(Superseded to 710-04218)

$2.99

$

Usually ships in 3-6 days

0

14

MTD 753-04600

Lower Impeller Housing
(Superseded to 731-04441)

$

$

Not available

15

Troy-Bilt 753-04601

Intake Deflector

$

$

Not available

16

Troy-Bilt 753-05004

Engine Assembly

$

$

Not available

Troy-Bilt MC-9228-330602

Fuel Cap Assembly
(Superseded to 791-182612)

Note: Not Shown

$20.99

$

In Stock, Qty 9

0

Troy-Bilt 791-181757

Air Cleaner Filter

Note: Not Shown

$3.99

$

In Stock, Qty 20+

0

Troy-Bilt MC-9111-310002

Spark Plug
(Superseded to 791-610311B)

Note: Not Shown

$14.99

$

In Stock, only 3 left!

0

MTD 753-04530

Recoil Assembly

Note: Not Shown

$

$

Not available
