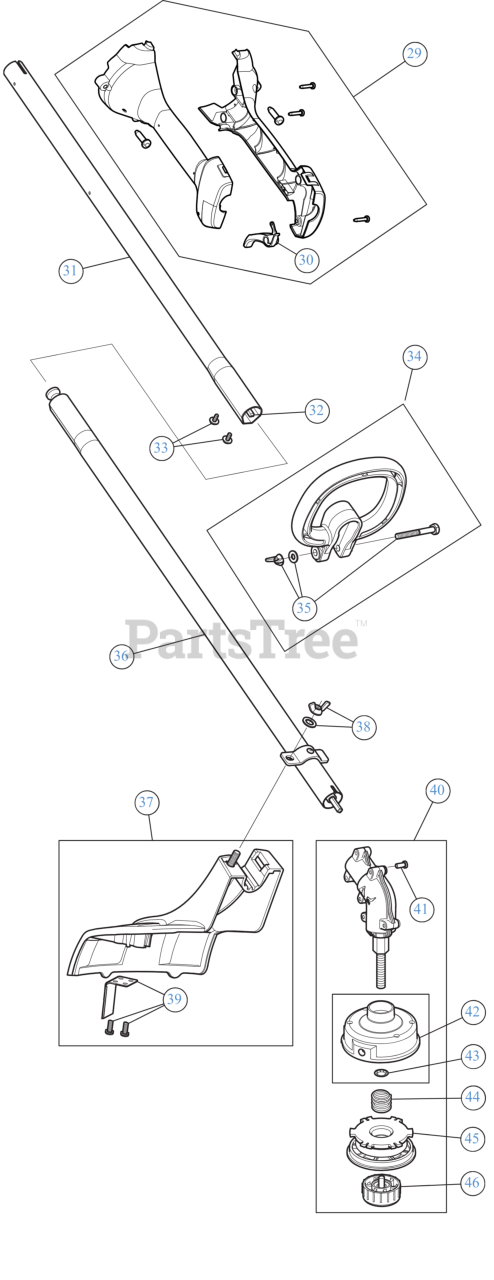

TB 25 SB (41AD25SB866) - Troy-Bilt String Trimmer General Assembly Parts Diagram

String Trimmer

General Assembly Parts Diagram

  • Title
29

Troy-Bilt 753-09146

THROTTLE GRIP ASSEMBLY

Note: (Incl. 30)

$8.49

$

In Stock, only 4 left!

0

30

Troy-Bilt 731-13693

THROTTLE TRIGGER

$2.99

$

In Stock, Qty 20+

0

31

Troy-Bilt 753-09147

UPPER BOOM ASSEMBLY

Note: includes 32)

$7.49

$

In Stock, only 4 left!

0

32

Troy-Bilt 753-06216

UPPER SHFT

$7.49

$

In Stock, only 2 left!

0

33

Troy-Bilt 710-06562

SCREW 8-32X3/8

$2.99

$

In Stock, only 2 left!

0

34

Troy-Bilt 753-06198

HANDLE

Note: (Incl. 35)

$4.99

$

Usually ships in 3-6 days

0

35

Troy-Bilt 753-06199

HANDLE HWD

$2.49

$

Usually ships in 3-6 days

0

36

Troy-Bilt 753-08686

LOWER BOOM ASSEMBLY

$22.99

$

In Stock, Qty 14

0

37

Troy-Bilt 841-032093S

GUARD/BLADE ASM

Note: (Incl. 38 & 39)

$12.99

$

In Stock, Qty 9

0

38

Troy-Bilt 753-04282

BLADE GUARD MOUNTING HARDWARE

$25.99

$

In Stock, only 1 left!

0

39

Troy-Bilt 753-08355

BLADE ASSEMBLY W/HDW

$4.49

$

In Stock, Qty 20+

0

40

Troy-Bilt 753-06571

GEARBOX ASSEMBLY

Note: (Incl. 41 - 46)

$45.99

$

Usually ships in 3-6 days

0

41

Troy-Bilt 753-05698

SCREW 8-32X.437
(Superseded to 7039)

$4.99

$

In Stock, only 2 left!

0

42

Troy-Bilt 753-04284

REEL:OTR W/RET

Note: (Incl. 43)

$28.99

$

In Stock, only 2 left!

0

43

Troy-Bilt 791-610660

RETAINER .625 OD 2

$4.99

$

In Stock, Qty 20+

0

44

Troy-Bilt 791-610317B

SPRING-SPOOL

$10.99

$

In Stock, only 2 left!

0

45

Troy-Bilt 753-1155

REEL-INNER SPOOL

$22.99

$

In Stock, Qty 20+

0

46

Troy-Bilt 791-153066B

BUMP HEAD KNOB ASSEMBLY

$13.99

$

In Stock, Qty 18

0

Troy-Bilt 753-1156

SPOOL ASSEMBLY-REEL
(Superseded to 953-1156)

$31.99

$

In Stock, only 1 left!

0
