TB 25 PS (41CD25PS766) - Troy-Bilt Pole Saw General Assembly Parts Diagram

Pole Saw

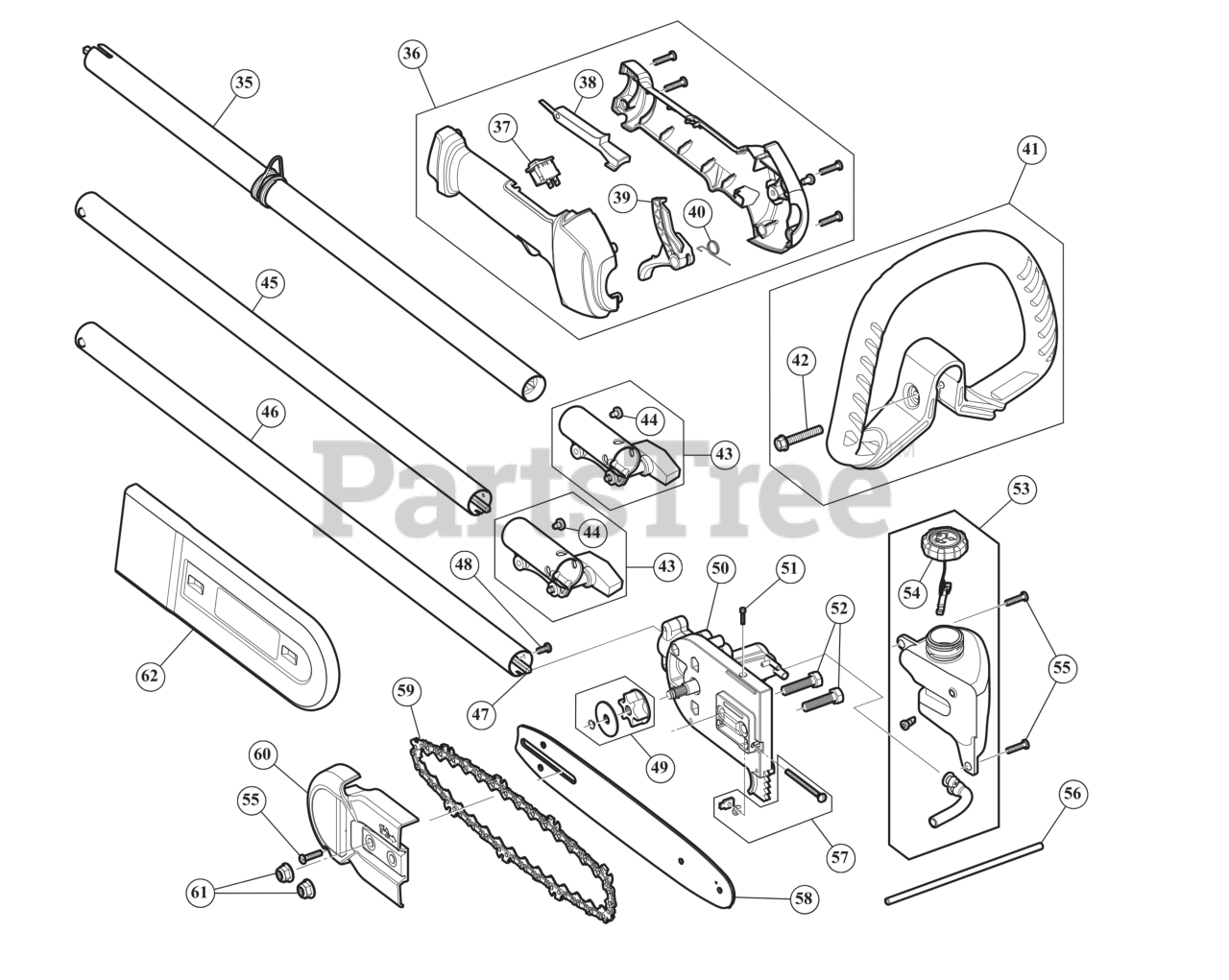

General Assembly Parts Diagram

  • Title
35

Troy-Bilt 753-06880

BOOM ASSEMBLY UPR

$19.99

$

In Stock, only 1 left!

0

36

Troy-Bilt 753-08344

THROTTLE GRIP ASSEMBLY

Note: (Incl. 37 - 40)

$30.99

$

Usually ships in 3-6 days

0

37

Troy-Bilt 791-182405

SW, MOMENTARY ON/O

$10.99

$

In Stock, Qty 12

0

38

Troy-Bilt 731-08433C-10

LEVER LOCK OUT

$3.49

$

In Stock, Qty 14

0

39

Troy-Bilt 731-04970B-10

THROTTLE TRIGGER

$9.49

$

In Stock, Qty 20+

0

40

Troy-Bilt 753-05007

TRIGGER SPRING

$5.49

$

In Stock, only 3 left!

0

41

Troy-Bilt 753-06039

HANDLE ASSEMBLY

Note: (Incl. 42)

$11.99

$

Usually ships in 3-6 days

0

42

Troy-Bilt 753-06040

BOLT 1/4-20X1 1/2

$6.99

$

In Stock, only 1 left!

0

43

Troy-Bilt 753-1190

SPLIT BOOM COUPLER KIT

Note: (Incl. 44)

$23.99

$

In Stock, only 1 left!

0

44

Troy-Bilt 791-182057

SCREW, 10-32X.250 TA

$4.49

$

In Stock, only 3 left!

0

45

Troy-Bilt 753-09226

EXTENSION BOOM ASSEMBLY

$22.99

$

In Stock, Qty 8

0

46

Troy-Bilt 753-11237

LOWER DRIVE SHAFT HOUSING

Note: (Incl. 47)

$38.99

$

Usually ships in 3-6 days

0

47

Troy-Bilt 753-11123

FLEXIBLE DRIVE SHAFT

$65.99

$

Usually ships in 3-6 days

0

48

Troy-Bilt 710-0599

SCREW 1/4-20 X.500

$4.49

$

In Stock, Qty 20+

0

49

Troy-Bilt 753-05595

SPROCKET ASSEMBLY

$11.99

$

In Stock, Qty 20+

0

50

Troy-Bilt 753-05599

GEAR BOX ASSEMBLY

Note: (Incl. 49 & 51)

$106.99

$

In Stock, only 2 left!

0

51

Troy-Bilt 710-04696

SCREW 4X40X.50

$3.99

$

In Stock, only 1 left!

0

52

Troy-Bilt 710-0528

SCREW 5/16-18 x 1.25 GR5

$4.49

$

In Stock, Qty 19

0

53

Troy-Bilt 753-11360

OIL TANK

Note: (Incl. 54)

$28.99

$

Usually ships in 3-6 days

0

54

$7.99

$

Usually ships in 3-6 days

0

55

Troy-Bilt 791-181345

SCREW, #8-16X.750 PH

$4.49

$

In Stock, Qty 20+

0

56

$9.99

$

In Stock, only 3 left!

0

57

Troy-Bilt 753-05597

CHAIN TENSION HDW

$10.99

$

In Stock, only 2 left!

0

58

$18.99

$

In Stock, only 1 left!

0

59

$15.99

$

In Stock, Qty 14

0

60

Troy-Bilt 753-05765

CHAIN GUARD

$11.99

$

In Stock, only 1 left!

0

61

Troy-Bilt 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

62

$6.49

$

Usually ships in 3-6 days

0

$2.99

$

In Stock, Qty 20+

0

Troy-Bilt 791-682075B

STRAP ASSEMBLY-SHOULDER

$38.99

$

Usually ships in 3-6 days

0
