TB 25 LS (24BC7FM1766) - Troy-Bilt Log Splitter (2017) Pump Parts Diagram

Log Splitter

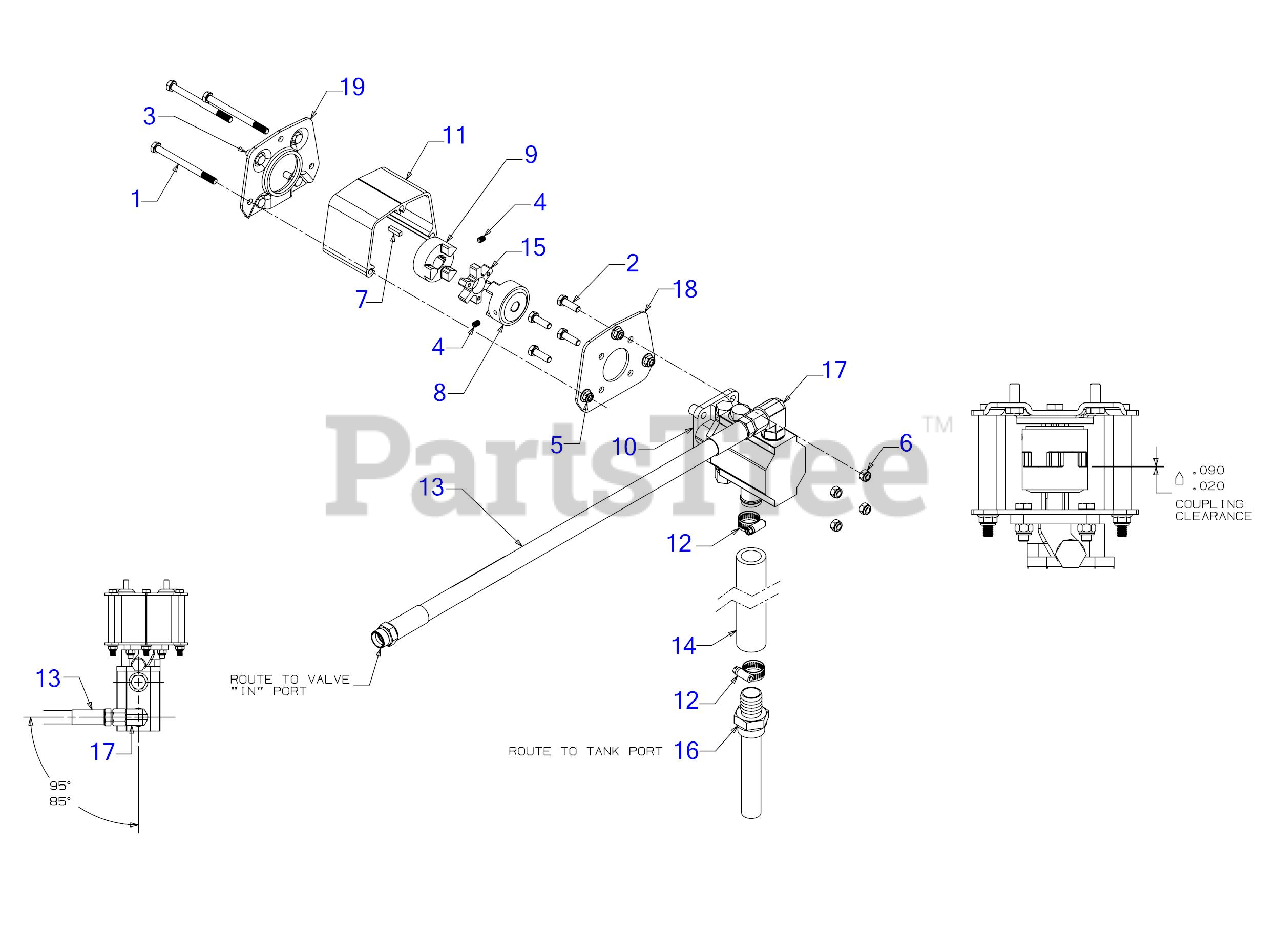

Pump Parts Diagram

  • Title

1

Troy-Bilt 710-0190

HEX SCREW 5/16-18 x 4.00

$7.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 710-0376

SCREW 5/16-18 x 1.0 GR5

$3.99

$

In Stock, Qty 20+

0

3

Troy-Bilt 710-0627

SCREW 5/16-24 x .750 GR5

$4.49

$

In Stock, Qty 20+

0

4

Troy-Bilt 710-1842A

SCREW 1/4-20 x .38

$5.49

$

In Stock, only 2 left!

0

5

Troy-Bilt 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 912-0429

HEX NUT
(Superseded to 712-0429)

$4.49

$

In Stock, Qty 20+

0

7

Troy-Bilt 914-0122

SQUARE KEY 3/16 x .7
(Superseded to 714-0122)

$

$

Not available

8

Troy-Bilt 718-04392

LOGSPLITTER COUPLING .500

$14.99

$

In Stock, Qty 20+

0

9

Troy-Bilt 718-04474

LOGSPLITTER COUPLING .750

$26.99

$

Usually ships in 3-6 days

0

10

MTD 918-05472

GEAR PUMP 15 GPM

$568.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 719-0278

COUPLING SHIELD

$72.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt 726-0132

HOSE CLAMP-5/8

$15.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt 727-04288

48" HYDRAULIC HOSE

$91.99

$

Usually ships in 3-6 days

0

14

Troy-Bilt 727-04356

INPUT HOSE

$47.99

$

Usually ships in 3-6 days

0

15

Troy-Bilt 735-04103

SPIDER COUPLING BUSHING

$14.99

$

In Stock, Qty 20+

0

16

Troy-Bilt 737-04308

INLET FILTER

$40.99

$

Usually ships in 3-6 days

0

17

Troy-Bilt 737-04322

90 DEGREE HYDRO FITTING 7/8 ORB x 13/16

$31.99

$

Usually ships in 3-6 days

0

18

Troy-Bilt 781-0097-0637

SUPPORT BRACKET

$69.99

$

In Stock, only 3 left!

0

19

Troy-Bilt 781-0098A-0637

BRACKET

$43.99

$

Usually ships in 3-6 days

0
