TB 25 LS (24BC7FM1766) - Troy-Bilt Log Splitter (2017) Cylinder Parts Diagram

Log Splitter

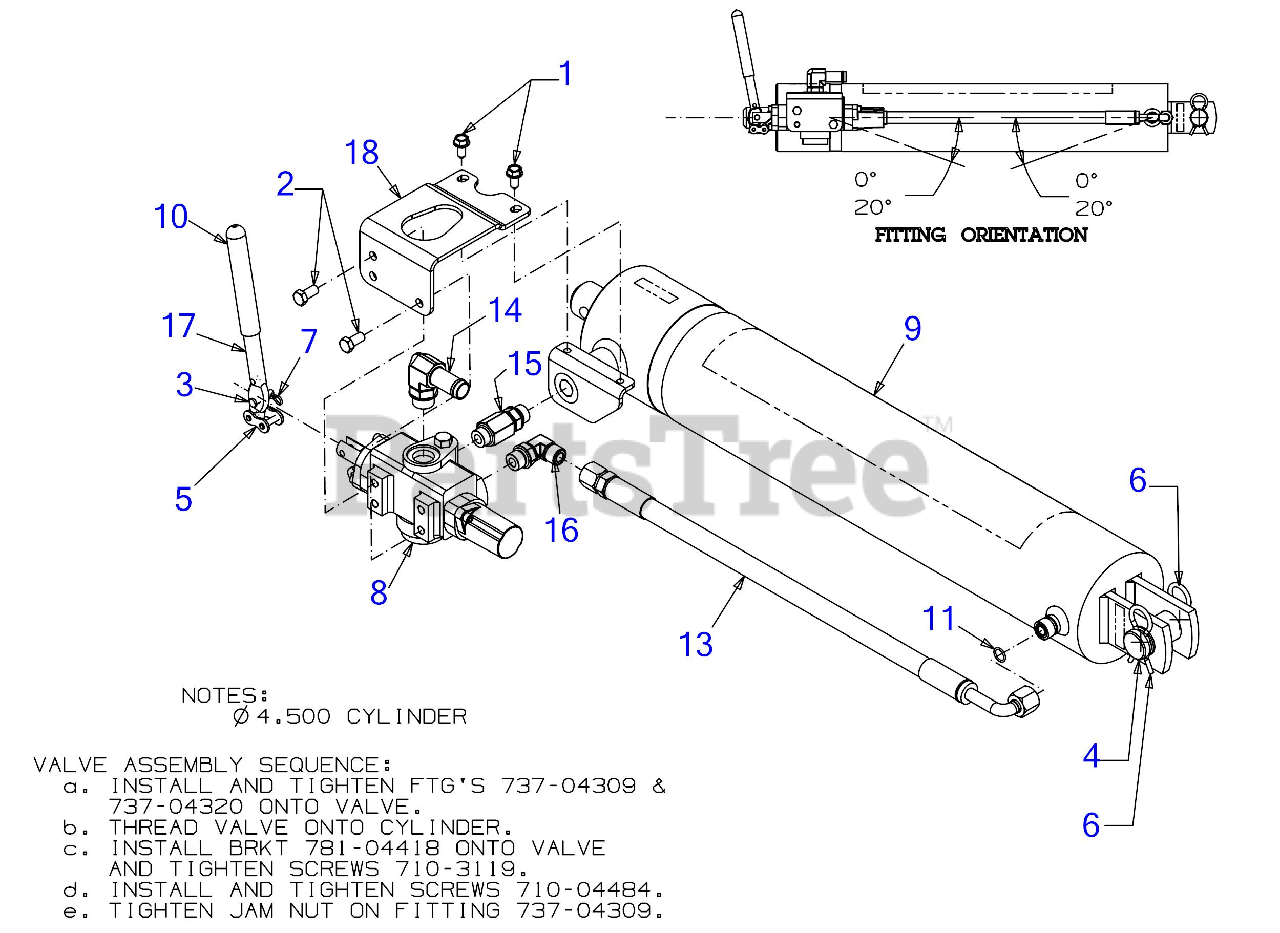

Cylinder Parts Diagram

  • Title

1

Troy-Bilt 710-04484

SCREW 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

2

Troy-Bilt 710-3119

SCREW 3/8-16 x .75 GR 5

$6.99

$

In Stock, only 1 left!

0

3

Troy-Bilt 711-04585

CLEVIS PIN .25 x 1.00

$6.99

$

In Stock, Qty 13

0

4

MTD 711-06835

CYLINDER MOUTING PIN

$36.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 913-04036

VALVE HANDLE LINK

$21.99

$

In Stock, only 2 left!

0

6

MTD 714-0203

EXT COTTER PIN

$9.49

$

Usually ships in 3-6 days

0

7

Troy-Bilt 714-04040

BOW TIE COTTER PIN 1/4-5/16

$1.49

$

In Stock, Qty 20+

0

8

Troy-Bilt 918-04740

LOGSPLITTER VALVE

$306.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 918-05427

HYDRAULIC CYLINDER 4.5 x 24

$665.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 720-04088

GRIP

$10.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 721-04411

O-RING

$3.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt 727-04362

HYDRAULIC HOSE

$91.99

$

Usually ships in 3-6 days

0

14

Troy-Bilt 737-04307

HYDRAULIC FITTING

$24.99

$

Usually ships in 3-6 days

0

15

Troy-Bilt 737-04309

HYDRAULIC FITTING

$20.99

$

In Stock, only 4 left!

0

16

Troy-Bilt 737-04320

HYDRAULIC FITTING

$20.99

$

Usually ships in 3-6 days

0

17

Troy-Bilt 747-04539A

CONTROL VALVE HANDLE

$45.99

$

In Stock, only 1 left!

0

18

Troy-Bilt 781-04418-0637

VALVE BRACKET

$17.99

$

Usually ships in 3-6 days

0
