TB 25 HT (41BD25HT766) - Troy-Bilt Hedge Trimmer Hedge Trimmer Parts Diagram

Hedge Trimmer

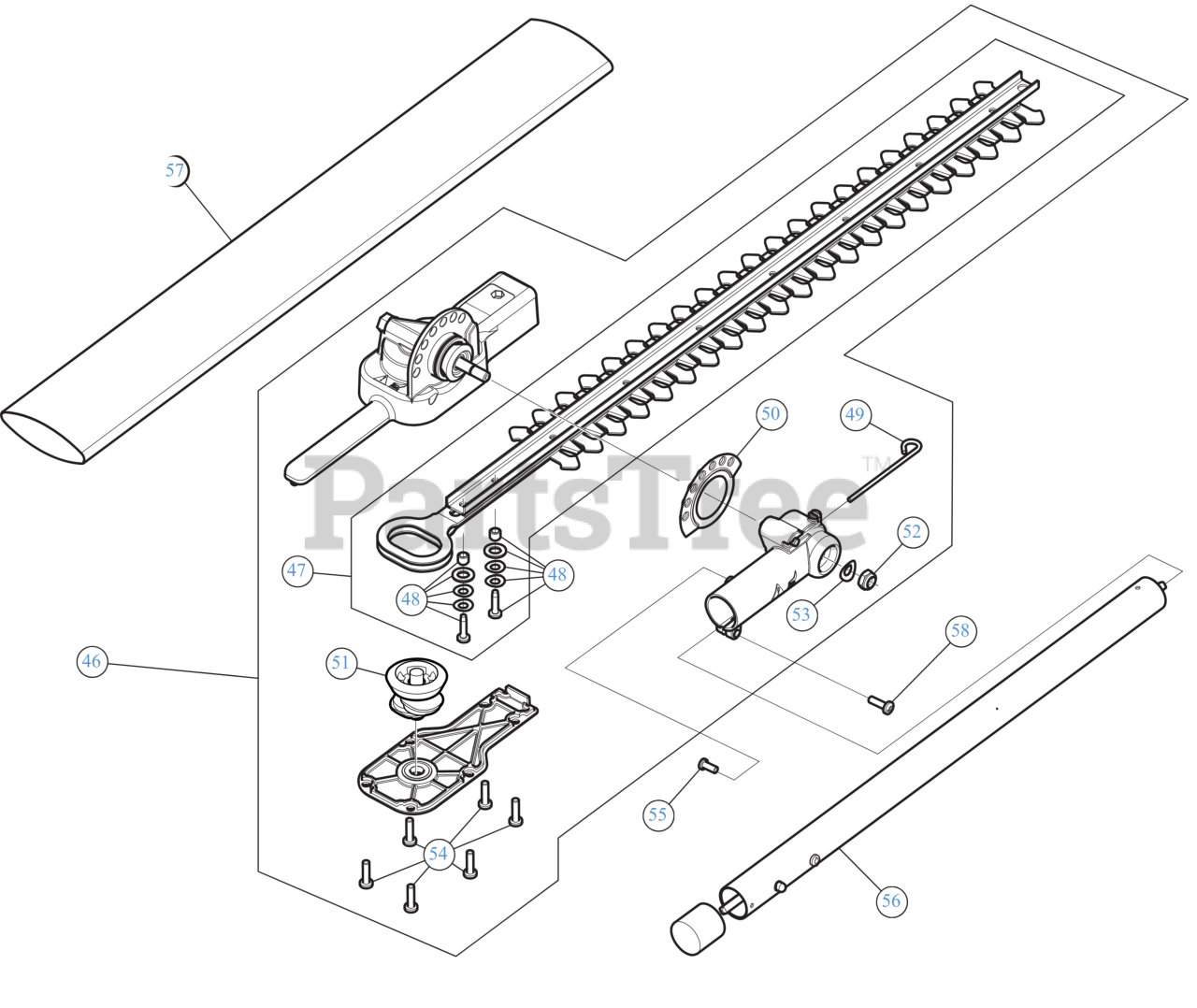

Hedge Trimmer Parts Diagram

  • Title

46

Troy-Bilt 753-08000

GEARBOX ASSEMBLY

Note: (Incl. 47 - 54)

$113.99

$

Usually ships in 3-6 days

0

47

Troy-Bilt 753-11146

BLADE ASSEMBLY

Note: (Incl. 48)

$90.99

$

Usually ships in 3-6 days

0

48

Troy-Bilt 753-11145

BLADE HARDWARE

$2.99

$

Usually ships in 3-6 days

0

49

Troy-Bilt 753-08002

LOCKING LEVER PIN

$3.49

$

In Stock, only 2 left!

0

50

Troy-Bilt 753-08003

SPACER DETENT SHM

$3.99

$

Usually ships in 3-6 days

0

51

Troy-Bilt 753-11147

CAM

$8.99

$

In Stock, only 2 left!

0

52

Troy-Bilt 753-08005

NUT 5/16-24

$3.49

$

Usually ships in 3-6 days

0

53

Troy-Bilt 936-0271

SHAKE PROOF WASHER

$4.49

$

In Stock, Qty 10

0

54

Troy-Bilt 3434

SCREW - 10-24X.625 PAN HEAD
(Superseded to 742-05171)

$24.99

$

Usually ships in 3-6 days

0

55

Troy-Bilt 7039

SCREW 8-32X.437

$4.99

$

In Stock, only 2 left!

0

56

Troy-Bilt 753-11148

BOOM ASSEMBLY

$5.99

$

Usually ships in 3-6 days

0

57

Troy-Bilt 753-08006

BLADE COVER

$4.99

$

Usually ships in 3-6 days

0

58

Troy-Bilt 9054

SCR, M5 x 15.8MM

$4.49

$

In Stock, only 4 left!

0

Troy-Bilt 791-682075B

STRAP ASSEMBLY-SHOULDER

$38.99

$

Usually ships in 3-6 days

0
