TB 25 ET (41ADT2EC063) - Troy-Bilt String Trimmer Engine Parts Parts Diagram

String Trimmer

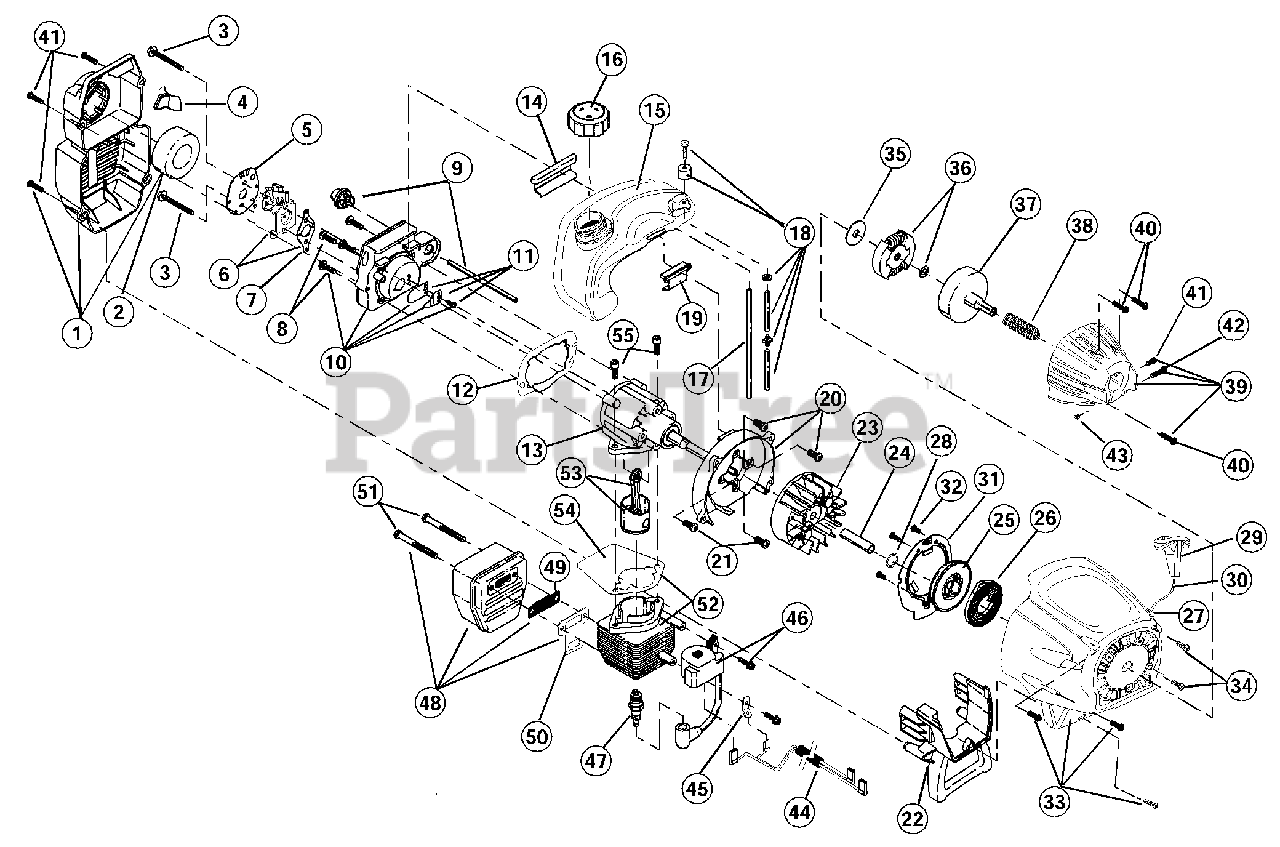

Engine Parts Parts Diagram

  • Title

1

MTD 753-1192

Air Cleaner/Muffler Cover Assembly

$

$

Not available

2

Troy-Bilt 791-180350B

Air Cleaner Filter

$9.99

$

In Stock, only 1 left!

0

3

MTD 791-180351

Carburetor Mounting Screw Assembl

$

$

Not available

4

Troy-Bilt 753-1193

Choke Extension
(Superseded to 753-04227)

$

$

Not available

5

Troy-Bilt 753-1194

Choke Plate
(Superseded to 753-04419)

$

$

Not available

6

Troy-Bilt 753-1195

Carburetor Assembly

$76.99

$

In Stock, only 2 left!

0

7

Troy-Bilt 791-610675

Carburetor Gasket

$4.49

$

In Stock, Qty 18

0

8

MTD 791-181860

Carb Mount Screw

$

$

Not available

9

Troy-Bilt 791-181801

Primer and Hose Assembly
(Superseded to 791-683974B)

$22.99

$

In Stock, Qty 17

0

10

Troy-Bilt 753-1196

Carb Mount Assembly

$

$

Not available

11

Troy-Bilt 791-684451

Reed Assembly

$

$

Not available

12

Troy-Bilt 753-1208

Carburetor Mount Gasket

$16.99

$

In Stock, only 1 left!

0

13

MTD 791-182791

Crank Case Service Assembly

$

$

Not available

14

MTD 791-612134

Rear Mounting Pad

$

$

Not available

15

Troy-Bilt 753-04307

Fuel Tank Assembly

$

$

Not available

16

Troy-Bilt 791-182612

Fuel Cap Assembly

$20.99

$

In Stock, Qty 10

0

17

Troy-Bilt 791-182352

Fuel Return Line

$7.99

$

In Stock, Qty 19

0

18

Troy-Bilt 753-04233

Fuel Line Assembly

$19.99

$

In Stock, Qty 12

0

19

MTD 791-145308

Front Mounting Pad

$

$

Not available

20

Troy-Bilt 791-153520

Shroud Assembly

$

$

Not available

21

Troy-Bilt 791-181861

Shroud Screw

$4.49

$

Usually ships in 3-6 days

0

22

Troy-Bilt 791-182064

Shroud Extension and Stand
(Superseded to 753-04611)

$

$

Not available

23

Troy-Bilt 791-182736

Flywheel Assembly
(Superseded to 753-05240)

$76.99

$

In Stock, only 2 left!

0

24

MTD 791-181065

Spacer

$

$

Not available

25

Troy-Bilt 753-1199

Recoil Pulley Assembly

$24.99

$

In Stock, only 4 left!

0

26

MTD 753-1236

Recoil Spring

$

$

Not available

27

Troy-Bilt 753-1200

Rope Guide

$11.99

$

Usually ships in 3-6 days

0

28

Troy-Bilt 791-181247

Pulley Retainer
(Superseded to 753-04288)

$10.99

$

Usually ships in 3-6 days

0

29

Troy-Bilt 791-181079

Pull Handle
(Superseded to 631-04164B)

$3.99

$

In Stock, Qty 11

0

30

Troy-Bilt 791-613103

Rope

$10.99

$

In Stock, only 2 left!

0

31

Troy-Bilt 753-1201

Pressure Plate Assembly
(Superseded to 753-04417)

$

$

Not available

32

Troy-Bilt 753-1202

Plate Screw
(Superseded to 1755)

$3.99

$

Usually ships in 3-6 days

0

33

Troy-Bilt 753-1203

Starter Housing Assembly

$

$

Not available

34

Troy-Bilt 791-181862

Housing Screw
(Superseded to 1964)

$4.49

$

In Stock, Qty 20+

0

35

Troy-Bilt 791-182368

Clutch Washer
(Superseded to 9162-1)

$4.49

$

In Stock, only 3 left!

0

36

Troy-Bilt 791-182369

Clutch Rotor Assembly
(Superseded to 753-05860)

$25.99

$

In Stock, Qty 6

0

37

Troy-Bilt 791-153592

Clutch Drum Assembly

$51.99

$

In Stock, Qty 12

0

38

Troy-Bilt 791-612468

Spring

$

$

Not available

39

MTD 753-1204

Clutch Cover Assembly

$

$

Not available

40

Troy-Bilt 791-181345

Cover Screw

$4.49

$

In Stock, Qty 20+

0

41

Troy-Bilt 791-182519

Anti-Rotation Screw

$4.99

$

In Stock, only 2 left!

0

42

Troy-Bilt 753-04003

Clamping Screw
(Superseded to 9689A)

$11.99

$

In Stock, Qty 16

0

43

Troy-Bilt 791-180217

Clamping Nut
(Superseded to 712-0161)

$4.49

$

In Stock, Qty 20+

0

44

MTD 791-182798

Wire Leads and Sleeve

$

$

Not available

45

MTD 791-611063

Ground Tab

$

$

Not available

46

Troy-Bilt 753-1205

Module Assembly

$103.99

$

Usually ships in 3-6 days

0

47

Troy-Bilt 791-610311B

Spark Plug

$14.99

$

In Stock, only 2 left!

0

48

Troy-Bilt 791-182066

Muffler Assembly
(Superseded to 753-05169)

$112.99

$

Usually ships in 3-6 days

0

49

Troy-Bilt 791-182747

Spark Arrestor Screen

$

$

Not available

50

Troy-Bilt 753-04159

Exhaust Gasket
(Superseded to 753-04619)

$9.49

$

In Stock, only 3 left!

0

51

Troy-Bilt 791-147575

Muffler Mounting Bolt Assembly

$

$

Not available

52

Troy-Bilt 753-1206

Cylinder Assembly
(Superseded to 753-04814)

$83.99

$

In Stock, only 1 left!

0

53

Troy-Bilt 753-1207

Piston and Rod Assembly
(Superseded to 753-04367)

$

$

Not available

54

Troy-Bilt 753-1197

Cylinder Gasket

$

$

Not available

55

Troy-Bilt 791-182723

Cylinder Bolt

$4.49

$

In Stock, Qty 13

0

Troy-Bilt 791-180091

Gasket Diaphragm Repair Kit (Zama)

$32.99

$

Usually ships in 3-6 days

0

Troy-Bilt 753-1209

Piston Ring Set

$52.99

$

Usually ships in 3-6 days

0

MTD 753-1210

Short Block Assembly

$

$

Not available

Troy-Bilt 791-181599

Clutch Springs

$11.99

$

Usually ships in 3-6 days

0
