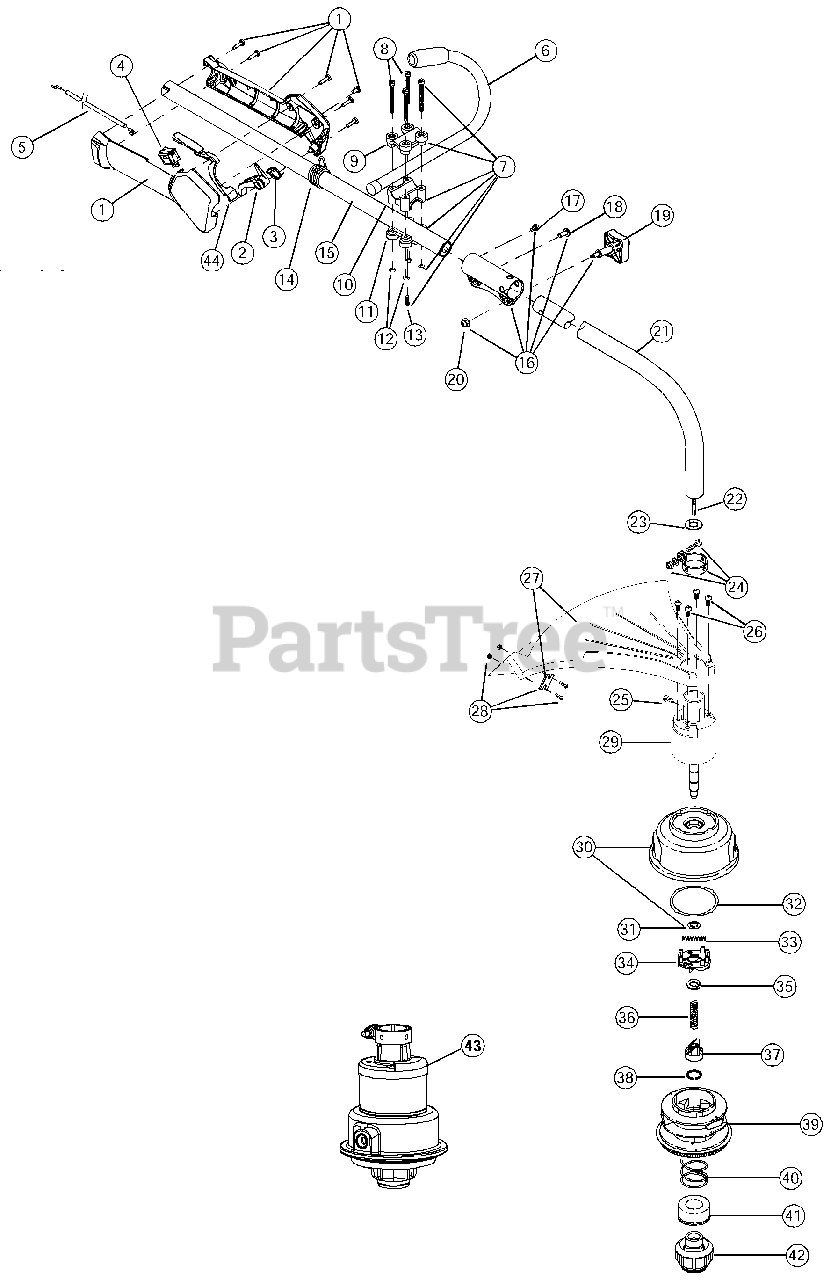

TB 25 ET (41ADT2EC063) - Troy-Bilt String Trimmer Boom And Trimmer Parts Parts Diagram

String Trimmer

Boom And Trimmer Parts Parts Diagram

  • Title

1

MTD 753-04118

Throttle Housing and Trigger Assembly
(Superseded to 753-05321)

Note: (includes 2, 3 & 44)

$

$

Not available

2

Troy-Bilt 753-04119

Throttle Trigger

$7.49

$

In Stock, Qty 18

0

3

Troy-Bilt 791-182690

Throttle Trigger Spring

$7.99

$

In Stock, only 2 left!

0

4

Troy-Bilt 791-182405

Switch Assembly

$10.99

$

In Stock, Qty 12

0

5

Troy-Bilt 753-04405

Throttle Cable

$7.99

$

In Stock, only 1 left!

0

6

Troy-Bilt 791-180687

J-Handle Assembly

$41.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 791-683295

Handle Bracket Assembly

Note: (includes 8-13)

$45.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 791-181811

Screw

$4.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 791-181812

Upper Handle Clamp

$8.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 791-181813

Middle Handle Clamp

$12.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 791-181814

Lower Handle Clamp

$8.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt 791-181815

Nut

$4.49

$

Usually ships in 3-6 days

0

13

Troy-Bilt 791-145569

Anti-Rotation Screw

$9.99

$

In Stock, Qty 7

0

14

Troy-Bilt 791-610327

Harness Clip

$32.99

$

Usually ships in 3-6 days

0

15

Troy-Bilt 753-04236

Upper Drive Shaft Housing Assembly

$94.99

$

In Stock, Qty 5

0

16

Troy-Bilt 753-1190

EZ-Link(TM) Coupler

Note: (includes 17-20)

$23.99

$

In Stock, only 1 left!

0

17

Troy-Bilt 791-182057

Screw

$4.49

$

In Stock, only 3 left!

0

18

Troy-Bilt 791-181617

Bolt

$5.49

$

In Stock, Qty 11

0

19

Troy-Bilt 791-181981

Adjustment Knob
(Superseded to 697-00661-9)

$

$

Not available

20

Troy-Bilt 791-181886

Knob Retaining Nut

$3.49

$

In Stock, only 4 left!

0

21

Troy-Bilt 791-180340

Lower Drive Shaft Housing Assembly
(Superseded to 753-1218)

$105.99

$

Usually ships in 3-6 days

0

22

Troy-Bilt 791-181852

Lower Flexible Drive Shaft

$59.99

$

In Stock, Qty 11

0

23

Troy-Bilt 791-181560

Palnut
(Superseded to 753-04348)

$6.99

$

In Stock, only 3 left!

0

24

Troy-Bilt 791-153597

Lower Clamp Assembly

$

$

Not available

25

Troy-Bilt 791-145569

Anti-Rotation Screw

$9.99

$

In Stock, Qty 7

0

26

Troy-Bilt 791-180531

Shield Mounting Hardware
(Superseded to 791-181858)

$

$

Not available

27

Troy-Bilt 791-181659

Shield and Blade Assembly

Note: (includes 28)

$

$

Not available

28

Troy-Bilt 791-181823

Blade Assembly

$12.99

$

Usually ships in 3-6 days

0

29

MTD 791-181857

Bushing Housing Assembly

$

$

Not available

30

Troy-Bilt 791-181457

Outer Spool Assembly

Note: (includes 31)

$39.99

$

In Stock, only 1 left!

0

31

Troy-Bilt 791-181458

Retaining Ring

$4.49

$

In Stock, Qty 12

0

32

Troy-Bilt 791-181561

Thrust Washer

$4.49

$

In Stock, Qty 5

0

33

Troy-Bilt 791-181459

Small Spring

$4.49

$

In Stock, only 2 left!

0

34

Troy-Bilt 753-04257

Slider

$7.49

$

In Stock, Qty 20+

0

35

Troy-Bilt 791-181532

E-Clip

$4.49

$

In Stock, Qty 8

0

36

Troy-Bilt 791-181531

Spring

$4.49

$

In Stock, Qty 9

0

37

Troy-Bilt 791-181462

Plunger

$

$

Not available

38

Troy-Bilt 791-181463

C-Clip

$3.99

$

Usually ships in 3-6 days

0

39

Troy-Bilt 791-181464

Inner Reel
(Superseded to 791-181460B)

$32.99

$

Usually ships in 3-6 days

0

40

Troy-Bilt 791-181465

Large Spring

$

$

Currently unavailable

41

Troy-Bilt 791-181467

Foam Seal

$

$

Not available

42

Troy-Bilt 791-181468

Bump Head Knob Assembly
(Superseded to 791-181468B)

Note: (includes 40 & 41)

$

$

Not available

43

Troy-Bilt 791-181469

Complete Cutting Head Assembly

$

$

Currently unavailable

44

MTD 791-00041

Throttle Trigger Lock-Out

$

$

Not available

Troy-Bilt 791-180120

Replacement Line, 0.095 Diameter
(Superseded to 953-1156)

Note: (Optional Accessory; Item Not Shown)

$31.99

$

In Stock, only 1 left!

0

Troy-Bilt 753-04218

Reel and Line Assembly

Note: (Optional Accessory; Item Not Shown)

$

$

Not available

Troy-Bilt 791-682075

Shoulder Strap Assembly
(Superseded to 791-682075B)

Note: (Optional Accessory; Item Not Shown)

$38.99

$

Usually ships in 3-6 days

0

Troy-Bilt 737-04324

2-Cycle Oil
(Superseded to 737-05350)

Note: 3.2 oz (Optional Accessory; Item Not Shown)

$5.99

$

Usually ships in 3-6 days

0
